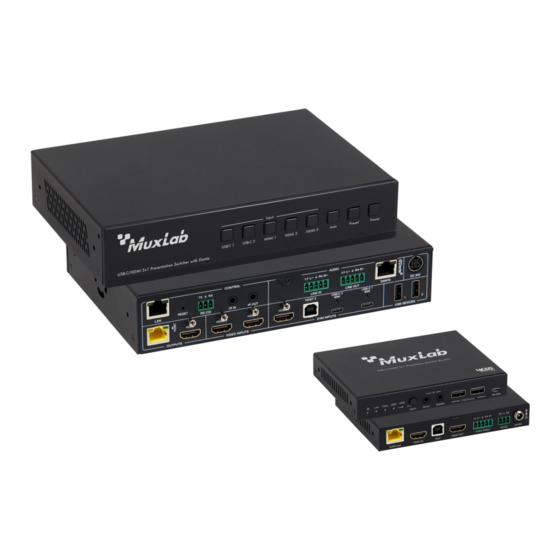

MuxLab 500533 User Manual

Usb-c hdmi 5x1 presentation switcher with dante

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

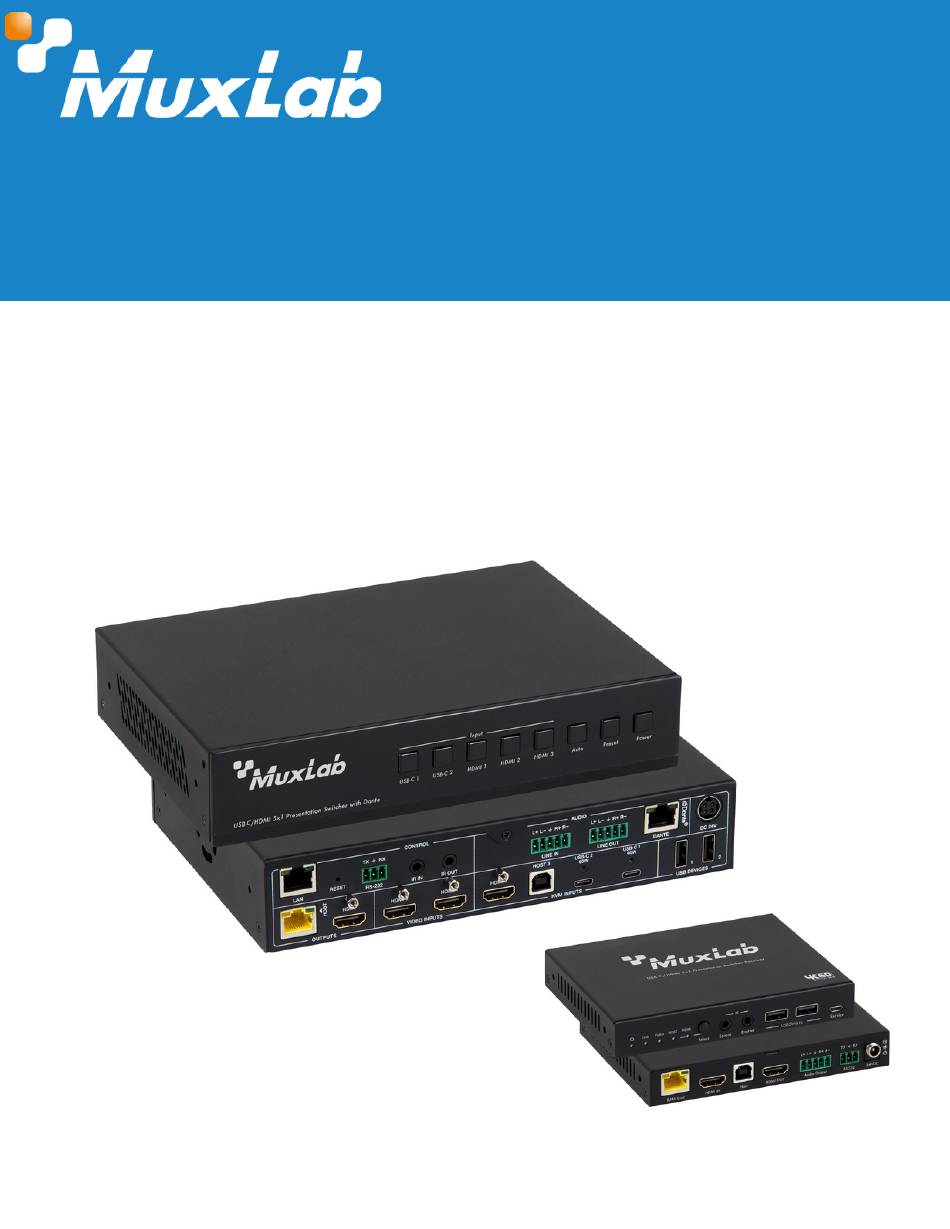

USB-C HDMI 5x1 Presentation Switcher with Dante

User Manual

500533

94-001030-A/SE-001030-A

Table of Contents

Need help?

Do you have a question about the 500533 and is the answer not in the manual?

Questions and answers

Summary of Contents for MuxLab 500533

Page 2: Table Of Contents
6. Operation Controls and Functions........................7 6.1. Switcher panel..............................7 6.2. HDBaseT Receiver Panel..........................9 6.3. IR Cable pin Assignment..........................10 6.4. IR Remote................................10 7. Web GUI User Guide.............................11 8. Dante Web GUI User Guide..........................21 9. RS-232 Control Command..........................24 10. Application Diagram............................38 © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.
Page 4: Introduction
USB-C/HDMI 5x1 Presentation Switcher with Dante 2. Introduction Introducing the Muxlab USB-C HDMI 5x1 Presentation Switcher with Dante (Model: 500533): Enhance your audiovisual experiences with the Muxlab USB-C HDMI 5x1 Presentation Switcher, a cutting-edge solution designed for seamless connectivity and advanced presentation capabilities.
Page 5: Package Contents
Output Impedance 330 Ohms Line Input Level (Max) 8.2dBu (2Vrms)@ balanced or unbalanced audio Line Output Level (Max) 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio Frequency Response (+0.5 dB, -1 dB) 20 Hz to 20 kHz © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 6 Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Generic Specification Compliance Regulatory: FCC, CE, RoHS 2 years Warranty 500533 USB-C HDMI 5x1 Presentation Switcher with Dante (UPC: 627699005330) Order Information © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 7: Operation Controls And Functions
Press and hold this button for 3 seconds, the product will enter standby mode and the button light will be on. In standby mode, short press this button,the POWER Button product will be turned on and the button light will be off. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 8 USB-C signal input port, connected to USB-C signal source USB-C 1/2 Ports device, with the function of 60W charging. Two USB extension ports, connected to mouse, keyboard, USB camera or other USB DEVICES Ports USB devices. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 9: Hdbaset Receiver Panel
Analog audio output port, supporting balanced and unbalanced audio output. RS-232 Port RS-232 signal pass-through or controlling this receiver via RS-232 commands. DC 24VDC Port Optional 24VDC power adapter, the receiver also can be powered by PoE. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 10: Ir Cable Pin Assignment
Main In (HDMI/USB-C In). Mute: Press this button to mute / unmute the audio of Master Out. VOL-, VOL+: Increase / decrease the audio output volume of Master Out. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 11: Web Gui User Guide
PC to enter Web GUI interface. After accessing the Web GUI page, there will be a Login interface, as shown below: The default username and password are as below: Username User Admin Password user admin © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 12 HDMI/HDBT Out, Line Out or Dante Out. In the Login interface, select the username “Admin” and input the password “admin”, then click the “Login” button to enter the Information page of the Admin interface. Information Page: © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 13 Preset Name: You can name the preset scene. Preset Save: Click the Save button to save the scene. Preset Clear: Click the Clear button to clear the saved scene. Preset Recall: Click the Recall button to recall the saved scene. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 14 Click the Download button to download EDID and generate a .bin file. Display the downloaded EDID .bin file. Click the Load EDID button to download user-defined EDID. Please note that only. bin files are supported. Click the Save EDID button to save the user-defined EDID. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 15 Display Mode: Click the drop-down list to select the display mode in PBP\Triple\Quad display mode. Display Aspect: Click the drop-down list to select the display aspect in PBP\Triple\Quad display mode. Border: Click the drop-down list to select the border and border color in PBP\Triple\Quad display mode. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 16 EDID of the back-end TV. HDMI HDCP: Click the drop-down list to select the HDMI HDCP version. HDBT HDCP: Click the drop-down list to select the HDBT HDCP version. After setting up, click “Save” to take effect. Audio Page: © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 17 Flat: Set all EG to 0db. Custom1: Set EQ for custom 1. Custom2: Set EQ for custom 2. Custom3: Set EQ for custom 3. Custom4: Set EQ for custom 4. Custom5: Set EQ for custom 5. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 18 Local RS-232: You can set the Baud Rate, Data Bit, Parity and Stop Bit for the RS-232 port of the transmitter. Remote RS-232: You can set the Baud Rate, Data Bit, Parity and Stop Bit for the RS-232 port of the receiver. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 19 Network Configuration: You can set the IP Mode (DHCP/Static), IP Address, Subnet Mask, Gateway, Telnet Port and Domain Name. Note: The Domain Name “500533-167BA.local” can be used to login the Web GUI. Account Passwords: You can modify the login password for User and Admin. After setting up, click “Save”...
Page 20 Firmware Update: You can update the software of MCU, Web, Scaler or receiver. Click “Choose File” to select the update file, then click “Update” to start update. When the progress bar reaches 100%, the update is complete. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 21: Dante Web Gui User Guide
Step 2: Set the Network connection setting of PC to be “Obtain an IP address Automatically”. Step 3: Open the Dante Controller software on the PC, and find the Dante device on the Routing page, as shown in the figure below. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 22 Step 5: Input the IP address of Dante device into your browser on the PC to enter the login interface of the Dante Web GUI. Step 6: Select the default username “Admin” and input the password “admin”, then click the “Login” button to enter the Information page of Dante Web GUI. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 23 On the Network page, you can set the IP Mode (DHCP/Static), IP Address, Subnet Mask, Gateway, Telnet Port, TCP Port and Domain Name. The product model can be modified. Note: The Domain Name “DEP22-010733.local” can be used to login the Dante Web GUI. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 24: Rs-232 Control Command
PC with a 3-pin phoenix connector cable and an RS-232 to USB cable. The connection method is as follows. Then open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. © MuxLab Inc. 2023 94-001030-A/SE-001030-A...
Page 38: Application Diagram
USB-C/HDMI 5x1 Presentation Switcher with Dante 10. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: USB-C/HDMI 5x1 Presentation Switcher with Dante 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500533 salesteam@muxlab.com | www.muxlab.com Follow us:...
