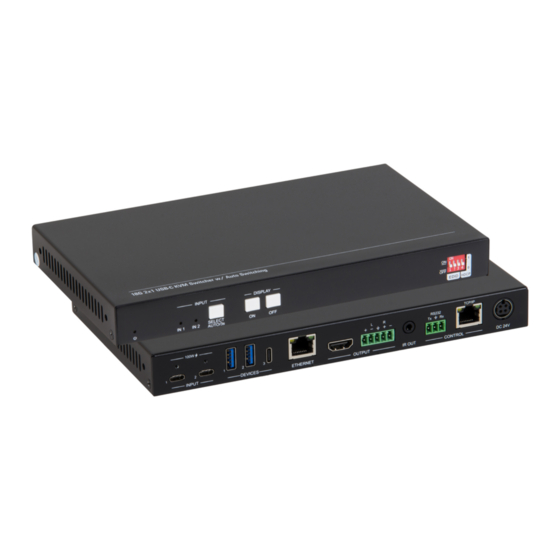

MuxLab 500531 Manual

Usb-c 2x1 presentation switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USB-C 2x1 Presentation Switcher
User Manual
500531
© MuxLab Inc. 2023
1
94-001029-A/SE-001029-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500531 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MuxLab 500531

Summary of Contents for MuxLab 500531

  • Page 1 USB-C 2x1 Presentation Switcher User Manual 500531 © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 2: Table Of Contents

    8.4 RS232...................................13 8.5 Network................................13 8.6 Security................................14 8.7 GUI Upgrade..............................14 9. RS232 Control................................15 9.1 RS232 Control Software..........................15 9.2 RS232 Command............................16 9.2.1 System Control............................16 9.2.2 GUI Control............................20 9.2.3 Third-party Device Control......................21 10. Troubleshooting & Maintenance........................23 11. Application Diagram............................24 © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 3: Safety Precautions

    All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.

  • Page 4: Introduction

    USB-C 2x1 Presentation Switcher 2. Introduction The MuxLab USB-C 2x1 Presentation Switcher offers seamless switching of USB-C inputs to a single HDMI output, providing versatility and enhanced connectivity for presentation environments. It supports video resolution up to 4K@60Hz 4:4:4, delivering high-quality visuals for presentations and displays, as well as audio de-embedding on a balanced analog audio output, ensuring clear and synchronized audio playback.

  • Page 5: Package Contents

    Two (2) Mounting Ears with 4 Screws One (1) 5-pin Terminal Block One (1) RS232 Cable (3-pin terminal block to DB9) One (1) IR emitter Four (4) Rubber feet User Manual can be downloaded from MuxLab website. 5. Specifications Video 2 x USB Type-C Video Input...

  • Page 6: Operation Controls And Functions

    Note that the factory default switching mode is AUTO. Display Press ON to turn on the display, OFF to turn off the display. 4-pin DIP switch for EDID/HDCP setting. refer to section 7.4 for the description. EDID/HDCP © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 7 Connect IR emitter, support guest mode control. RS232: 3-pin terminal block to control the device via RS232. Control TCP/IP: Connect to a PC for GUI control. DC 24V DC barrel port for power adapter connection. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 8: Button Control

    RS232 commands to control the display device. ON: Display On. OFF: Display Off. The RS232 command can be set by sending commands, please refer to the 9.2.3 section for Third-party Device Control for more details. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 9: Edid And Hdcp Setting

    High-bandwidth Digital Content Protection (HDCP) is a copy-protection scheme to eliminate the possibility of capturing digital content from the source to the display. Pin4 of the DIP switch on the front panel can be used to set HDCP. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 10: Gui Control

    Please type the IP Address of the control PC in the internet browser, and it will enter the below log-in webpage. Username: admin Password: admin Please type the username and the password, and then click LOGIN. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 11: Video And Audio

    Charging Option: Follow Source / Always input 1 / Always input Display: ON/OFF (Note: Display command setting in configuration page.) Audio De-embedding: ON/OFF 8.2 Configuration Power mode: Follow Host / Always on Turn on/off the device 1 to 3. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 12 Setting the RS232 command send to display when press the front panel button. 8.3 IR Label and Value: Adding the IR command page. Select the commands and then press the button to perform different operations. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 13: Rs232

    Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in the box to control the third-party device which is connected to the RS232 port of the 500531. 8.5 Network Static IP or Dynamic Host Configuration Protocol (DHCP).

  • Page 14: Security

    Password: Modify the GUI login password Choose the firmware upgrade file and click confirm to upgrade the firmware Lock or unlock the front panel buttons Factory Default the 500531 8.7 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade.

  • Page 15: Rs232 Control

    The main view is shown as below: Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, and then you will be able to send command in command sending area. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 16: Rs232 Command

    All commands need to be ended with “<CR><LF>”. 1. Commands are not case-sensitive. 2. The "0" in front of the effective value can be ignored. 3. Spaces between instructions and variables can be ignored. 9.2.1 System Control © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 17 USB-C 2x1 Presentation Switcher © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 18 USB-C 2x1 Presentation Switcher © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 19 USB-C 2x1 Presentation Switcher © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 20: Gui Control

    USB-C 2x1 Presentation Switcher 9.2.2 GUI Control © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 21: Third-Party Device Control

    Connect a third-party device (e.g. projector) to the RS232 port of switcher, the third-party device can be controlled simultaneously by the below RS232 commands while press the front panel button (ON, OFF). Note: The below commands don’t need ending mark © MuxLab Inc. 2023 94-001029-A/SE-001029-A...
  • Page 22 USB-C 2x1 Presentation Switcher © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 23: Troubleshooting & Maintenance

    USB-C 2x1 Presentation Switcher 10. Troubleshooting & Maintenance Note: If your problem still remains after the above troubleshooting steps, please contact MuxLab technical support for further assistance. © MuxLab Inc. 2023 94-001029-A/SE-001029-A...

  • Page 24: Application Diagram

    USB-C 2x1 Presentation Switcher 11. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: USB-C 2x1 Presentation Switcher 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500531 salesteam@muxlab.com | www.muxlab.com Follow us:...
