Page 1: Installation Guide

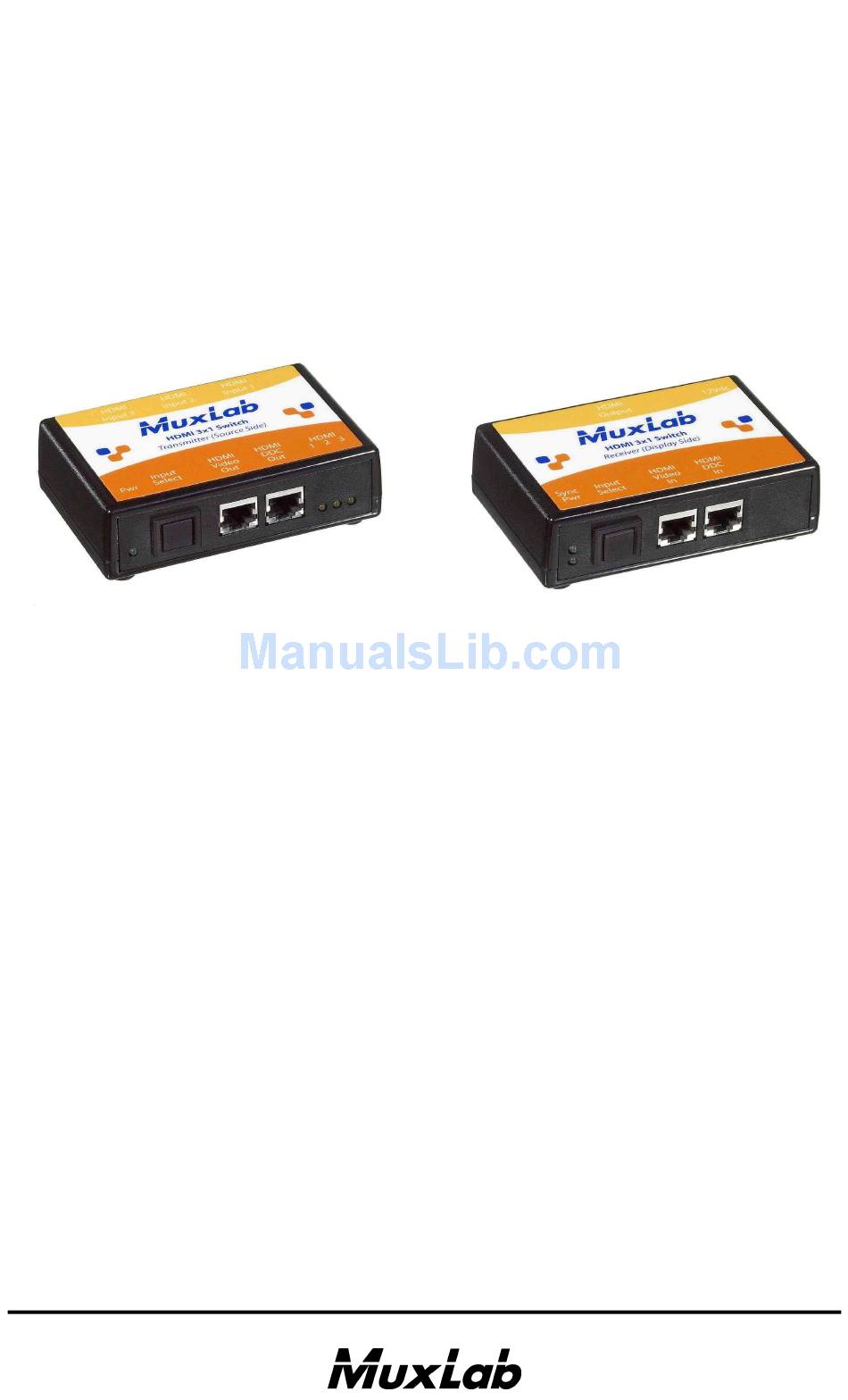

VideoEase™ HDMI 3x1 Switcher Kit 500410 (110V) Installation Guide P/N: 94-00628-A SE-000627-A... - Page 2 Trademarks : MuxLab and VideoEase are registered trademarks of MuxLab Inc. Page 2...
-
Page 3: Table Of Contents
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Table of Contents 1. Overview .................4 1.1. Description............4 1.2. Features ………………………………………5 2. Technical Specifications ..........6 3. Installation Procedure ...........8 3.1. Parts List ............8 3.2. Product Overview ..........9 3.3. Pre-Installation Checklist........10 3.4. Installation Procedure ........11 4. -
Page 4: Overview
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Overview 1.1. Description The VideoEase HDMI 3x1 Switcher Kit allows up to three (3) different HDMI sources to be connected to one (1) HDMI display via two (2) Cat5e unshielded twisted pair cables in a point-to-point configuration. -
Page 5: Features
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide 1.2. Features • Up to 250 ft (75m) @ 1080i via two (2) Cat5e cables • Push button switch control • Supports DVI • 2 year limited warranty Page 5... -
Page 6: Technical Specifications
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Technical Specifications HDMI 1.2 and DVI-D Environment Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI or DVI-D Transmission Transparent to the user. 165MHz Bandwidth Signals HDMI or DVI-D protocol Transmitter: Three (3) HDMI receptacles. - Page 7 © MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Page 7...
-
Page 8: Installation Procedure
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Installation Procedure 3.1. Parts List The HDMI 3x1 Switcher Kit (500410 [110V]) comes with the following parts. Please verify that all pieces are present before proceeding. • Transmitter • Receiver • One (1) External Power Supply (12 VDC) •... -
Page 9: Product Overview
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide 3.2. Product Overview The external connections and diagnostic indicators of the HDMI 3x1 Switcher are detailed in the following diagrams. Please familiarize yourself with them before installing the components. Figure 1: Transmitter... -
Page 10: Pre-Installation Checklist
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide 3.3. Pre-Installation Checklist There are two components: the transmitter and the receiver. 1. The transmitter is connected to the HDMI video sources which may be a satellite box, cable box, DVD player or game box via HDMI jumper cables (not included). -
Page 11: Installation Procedure
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide 3.4. Installation Procedure Verify that the distance between the HDMI 3x1 Transmitter Receiver within MuxLab specifications (see Technical Specifications). In order to install the transmitter, please follow the steps below: 1. Connect the HDMI transmitter to the HDMI video sources with an HDMI jumper cable. - Page 12 © MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Note: Power on the HDMI 3x1 Switcher Kit only after all connections are made. 6. The following diagram shows final configuration. 7. In order to select the HDMI source, press the Input Select button on the Transmitter or Receiver.
-
Page 13: Troubleshooting
© MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide Troubleshooting The following table describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, the technical support contact information can be found at the end of this section. - Page 14 © MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready: • Unit model number. • Cabling layout. Include models of HDMI equipment used, cable length and type.
-
Page 15: Product Warranty Policy
Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent. - Page 16 Product more than six months old, including shelf life. The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product.
- Page 17 © MuxLab Inc. HDMI 3x1 Switcher Kit Installation Guide MuxLab Inc. Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com Page 17...
