Page 1: Installation Guide

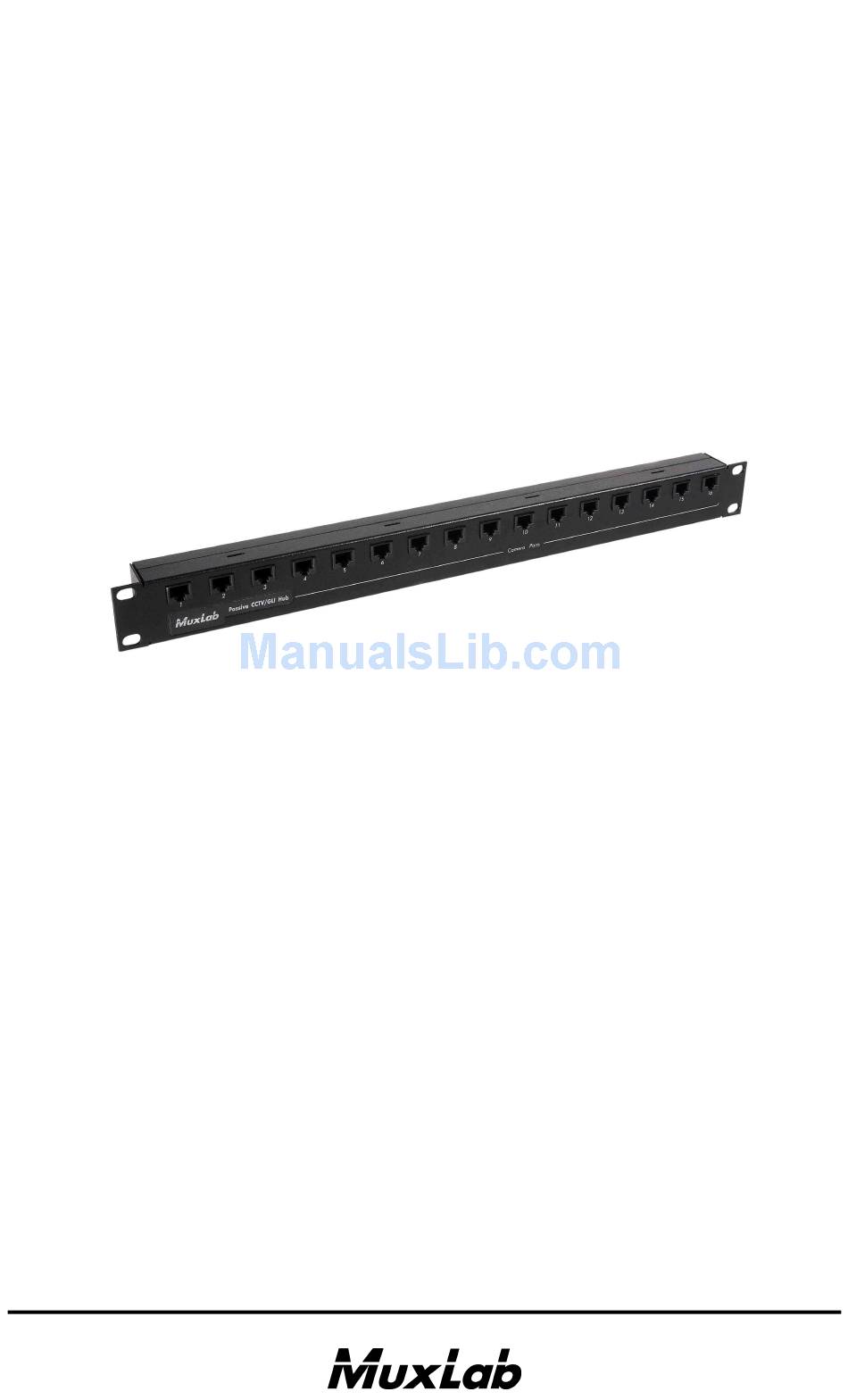

™ VideoEase Passive CCTV/GLI Hub (500133) Installation Guide P/N: 94-000619-A, SE-000602-A... -
Page 2: Table Of Contents
Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author. Trademarks : MuxLab and VideoEase are registered trademarks of MuxLab Inc. Page 2... -
Page 3: Overview
Passive CCTV/GLI Hub Installation Guide Overview 1.1. Description The Passive CCTV/GLI Hub (500133) allows video, remote power and PTZ control to be transmitted via one 4-pair Cat 5 cable, thus eliminating the need to install multiple cables for more efficient cabling in the security video environment. -
Page 4: Technical Specifications
© MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Technical Specifications Specifications Composite video; NTSC, PAL, SECAM Environment CCTV cameras, DVRs, monitors, switchers, multiplexers and other Devices CCTV equip. Transmission Transparent to the user. Video Bandwidth 20Hz to 8 MHz. Maximum Input 1.1Vp-p... - Page 5 Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95% Temperature Black, anodized aluminum Enclosure 19” (48.26 cm) W x 1.75” (4.4 cm) H x 2.0” ( 5.1 cm) D Dimensions 2.3 lbs. (1.1kgs) Weight Warranty Lifetime Order 500133 Passive CCTV Hub, UTP/Coax Information Page 5...
-
Page 6: Installation Procedure
© MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Installation Procedure 3.1. Parts List The Passive CCTV/GLI Hub comes with the following parts. Please verify that all pieces are present before proceeding. • Base Unit (Factory configuration: Power-Thru Mode (500022) • Installation Guide 3.2. -
Page 7: Pre-Installation Checklist
Mode (500024/500029 compatible) depending on the cabling configuration. 3. The Passive CCTV/GLI Hub works in conjunction with MuxLab’s other CCTV products including the 500000, 500009, 500015, 500022, 500023, 500024, 500029, 500120 and 500122). The passive CCTV Baluns are connected at the CCTV camera. -
Page 8: Physical Installation
© MuxLab Inc. Passive CCTV/GLI Hub Installation Guide 3.4. Physical Installation The Passive CCTV/GLI Hub is a 1U, 19” rackmount unit. The factory default switch settings of each port is Pass-Thru Mode (500022). 1. Select the final destination for the product in the relay rack and install the unit using standard rackmount screws. -
Page 9: Installation Procedure
1. Install the Passive CCTV/GLI Hub in its final location. Please verify that the distance between the rack and cameras are within MuxLab specifications. 2. Connect a MuxLab passive CCTV/GLI Balun (MuxLab p/n 500000, 500009, 500022, 500023, 500024 or 500029) to each CCTV camera video output. - Page 10 © MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Port Switch Settings: 4. For each camera port, determine whether video, power and/or control is to be transmitted via the same Cat5 cable. If only video is to be transmitted, then the Power/Control terminals and port switch may be disregarded.
- Page 11 © MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Figure 6: Port Setting – Power-Thru Mode (500024/500029) Page 11...
- Page 12 8. If remote power is being transmitted to the camera, verify that the distance between the camera and the hub is within MuxLab specifications. Please consult the distance charts at the back of the installation guide. When the port switch is set to Pass-Thru Mode (500022), two (2) twisted pairs are used for remote power.
- Page 13 © MuxLab Inc. Passive CCTV/GLI Hub Installation Guide 9. Connect two (2) wires between the power terminals of the hub to the remote low voltage power supply (fig 9). It is recommended to use a Class II power supply with fuse protection on each output port.
- Page 14 © MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Figure 10: PTZ connection 12. Power on the CCTV equipment; cameras, remote power supply, PTZ controller. 13. The following diagram shows typical configuration. Figure 11: Typical Configuration Page 14...
-
Page 15: Troubleshooting
The following chart describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, please contact MuxLab Technical Support at 877-689-5228 (North America) or at (+1) 514 905-0588 (International) or via e-mail at videoease@muxlab.com. -
Page 16: Muxlab Inc
PTZ controls not Wrong pin config Check wiring. responding When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready: • Unit model number. • Cabling lay-out. Include model of camera and DVR used, power supply voltage, camera wattage, cable length and type. -
Page 17: Distance Tables
© MuxLab Inc. Passive CCTV/GLI Hub Installation Guide Distance Tables The following tables provide the maximum distances for remote power via Cat5 twisted pair when a port on the Passive CCTV/GLI Hub is set to Pass-Thru Mode (500022) or Power-Thru Mode (500024/500029). -
Page 18: Product Warranty Policy
Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent. - Page 19 Product more than six months old, including shelf life. The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product..
- Page 20 MuxLab Inc. 8114 Trans Canada Hwy, St. Laurent Quebec, Canada H4S 1M5 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com...
