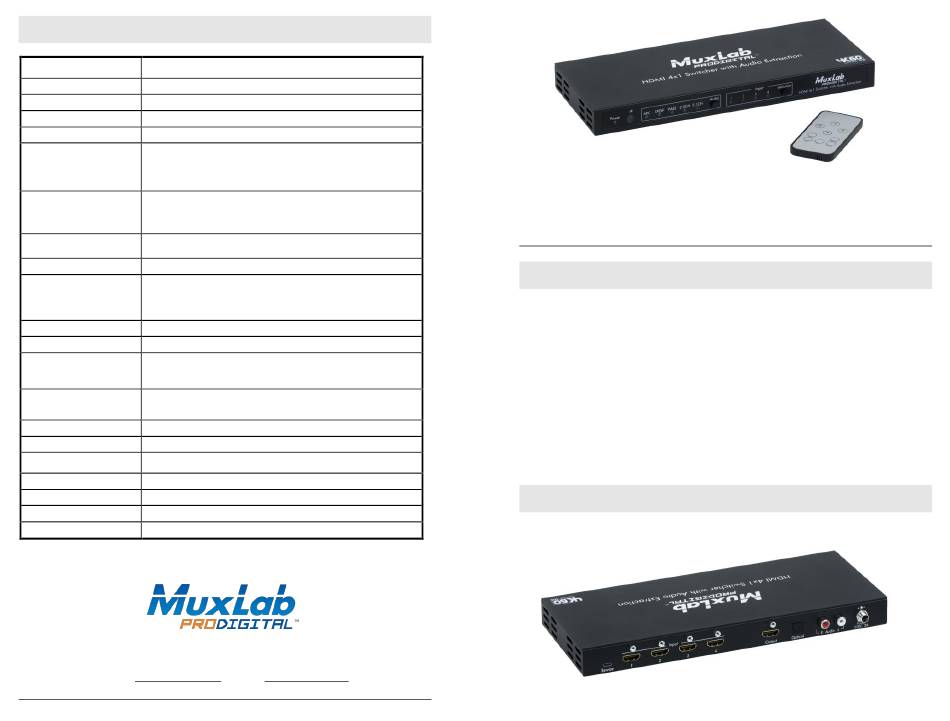

MuxLab 500437 Quick Installation Manual

Specifications

Environment HDMI 2.0
DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Devices
Transparent to the user
Transmission
Frequency 25 to 594 MHz
Video Signal HDMI 2.0 protocol and HDCP 2.2
Connectors Five (5) HDMI connectors for 4x video-in, 1x video-out
Two (2) RCA connectors for 2CH audio-out
One (1) TosLink optical connector for multichannel audio-out
One (1) 2.1 mm locking jack for power
LEDs One (1) LED for Power
Four (4) LEDs for HDMI select
Five (5) LEDs for Audio mode and ARC select
Manual Control Push button at the front of the unit for video input and audio
mode select
Included
IR Remote Control
Resolution 480i to 1080p @ 50/60 Hz
1080p @ 24/50/60 Hz
3840 X 2160 @ 24/25/30/60 Hz
Color 8, 10 & 12 bit
Uncompressed (LPCM) or compressed (Dolby, DTS)
Audio Extraction
Cable HDMI Video Cable
Optical TosLink
Analog 2CH Audio cable
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
10.63" x 4.33" x 1.18" (270 mm x 110 mm x 30 mm)
Dimensions
3.2 lbs (1.45 Kg)
Weight
5VDC, 2A with interchangeable blade for US, UK and Euro
Power Supply
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500437 HDMI 4X1 Switcher with Audio Extraction, 4K60
2321 Cohen St. Saint-Laurent, QC Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc. 2018
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000875-A SE-000875-A
HDMI 4X1 Switcher with Audio
Extraction, 4K/60 (500437)
Quick Installation Guide

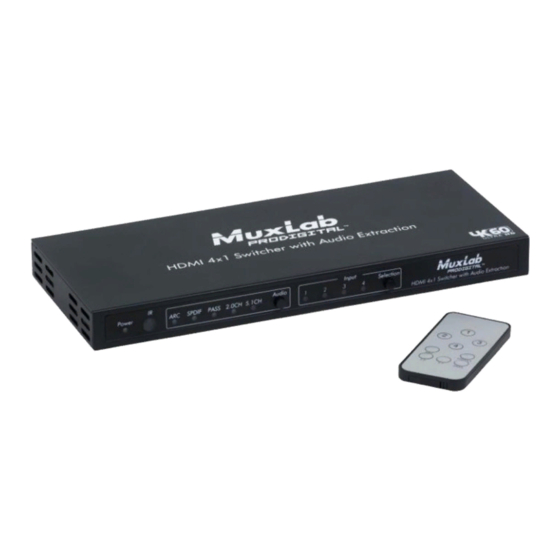

Overview
The HDMI 4x1 Switcher with Audio Extraction, 4K/60 allows one of four HDMI
sources to be switched to one HDMI display. The switcher supports resolutions up
to 4K (3840 x 2160) @ 60Hz, 8-bit color and HD audio. Extracted digital audio is
available on an Optical Toslink port, and analog 2CH audio is available on two (2)
RCA jacks. Audio Return Channel (ARC) is supported, allowing audio from
content streamed to a Smart TV to be returned to an audio system. Three audio
modes are supported which set the source audio. The modes are pass-through
(audio is unaltered at the source), 2CH (audio is set to 2CH at the source) and
5.1CH (audio is set to 5.1 at the source). The HDMI input port switching and audio
mode selections may be controlled locally via two (2) push buttons and remotely
via IR. Applications include; commercial and residential AV systems, classroom
projector systems, digital signage, boardroom systems, collaborative PC systems,
medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product
