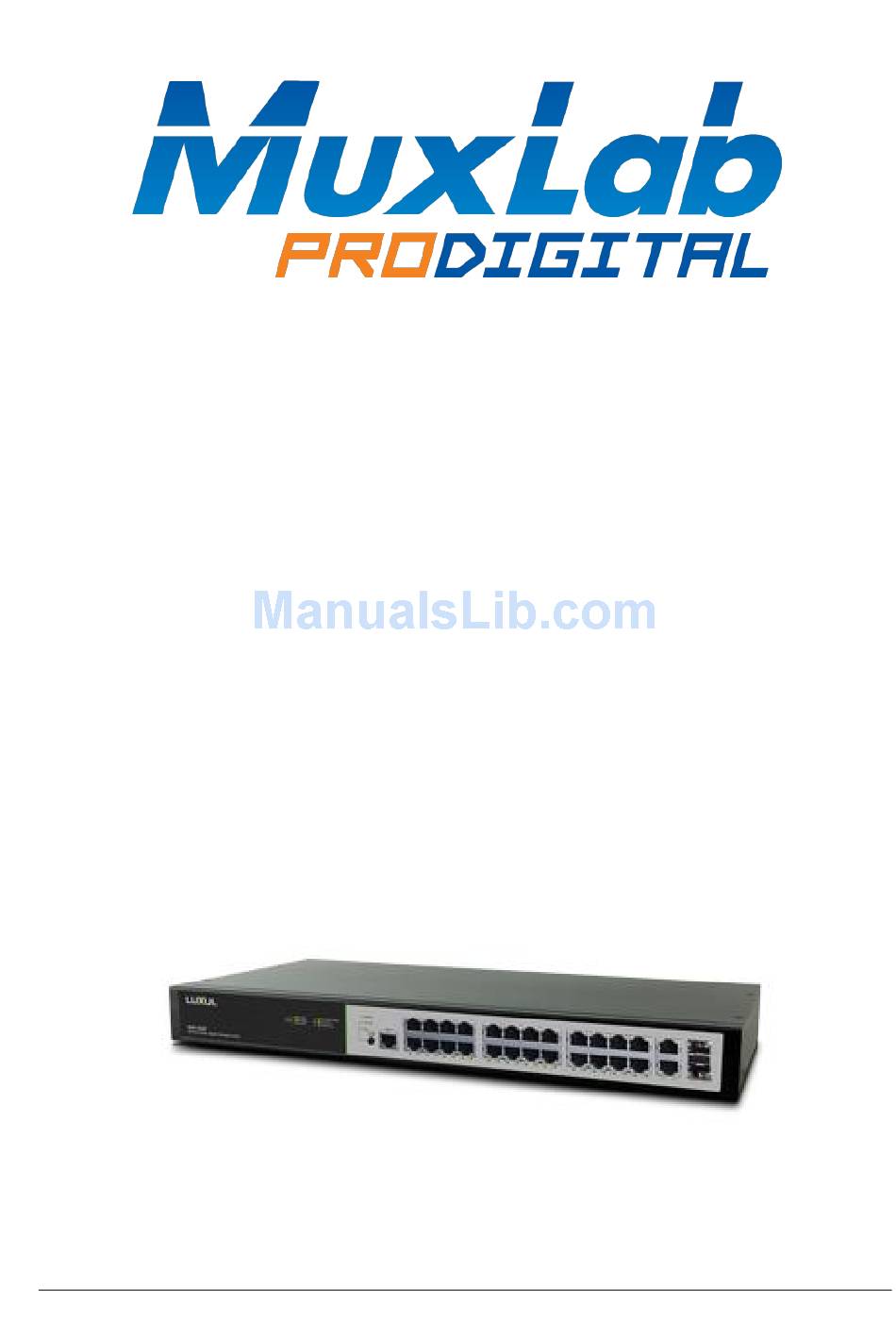

- Page 1 Luxul Ethernet Switch Quick Setup Guide For MuxLab AV over IP Devices © MuxLab Inc. 2017...
- Page 2 Luxul Ethernet Switch Quick Setup Guide Contents Introduction ....................... 3 MuxLab Ethernet Switch Setup Requirements ............3 Ethernet Switch Setup ....................4 3.1. Enabling IGMP ....................4 3.2. Enabling Jumbo Frames ................5 Preparing for System Installation ................6 © MuxLab Inc. 2017...
- Page 3 Luxul Ethernet Switch models. MuxLab Ethernet Switch Setup Requirements All MuxLab AV over IP Transmitters and Receivers require IGMP support to be enabled on the Ethernet Switch, and a select number of MuxLab units also require Jumbo Frames to be enabled.
- Page 4 Enter the Ethernet Switch IP address into a browser Step 2: IGMP Snooping Configuration Navigate to the menu: [Configuration → IPMC → IGMP Snooping → Basic Configuration] Set the configuration as shown below, and then click [Save] © MuxLab Inc. 2017...
- Page 5 Follow the steps below to enable the Jumbo Frames feature on the Ethernet Switch. For further details on navigating through the Ethernet Switch web server menus, please refer to the Ethernet Switch manual. Take note that by default, the jumbo frames feature may already be enabled. © MuxLab Inc. 2017...
- Page 6 The Ethernet Switch is now properly configured to support MuxLab AV over IP devices with respect to IGMP and Jumbo Frames. Note that MuxLab AV over IP Transmitters and Receivers are set by default with DHCP enabled, and the MuxLab 500811 ProDigital Network Controller has DHCP disabled by default and is set to a Static IP address of 192.168.168.50.
- Page 7 Luxul Ethernet Switch Quick Setup Guide 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2017...
