Handbook

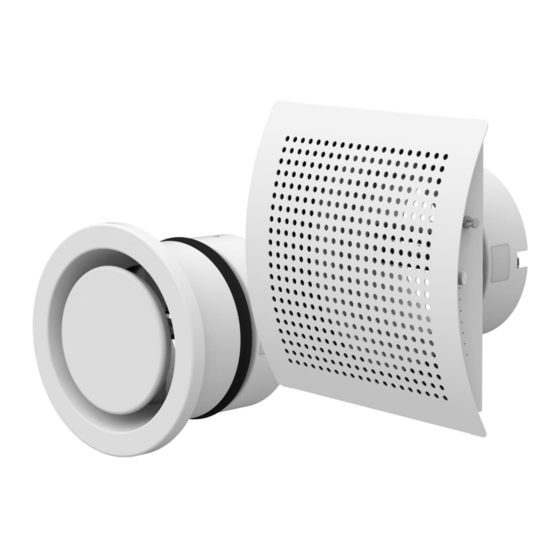

F-C2...VA
Cartridge Fire Damper within Valve

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-C2 VA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir F-C2 VA Series

Summary of Contents for SystemAir F-C2 VA Series

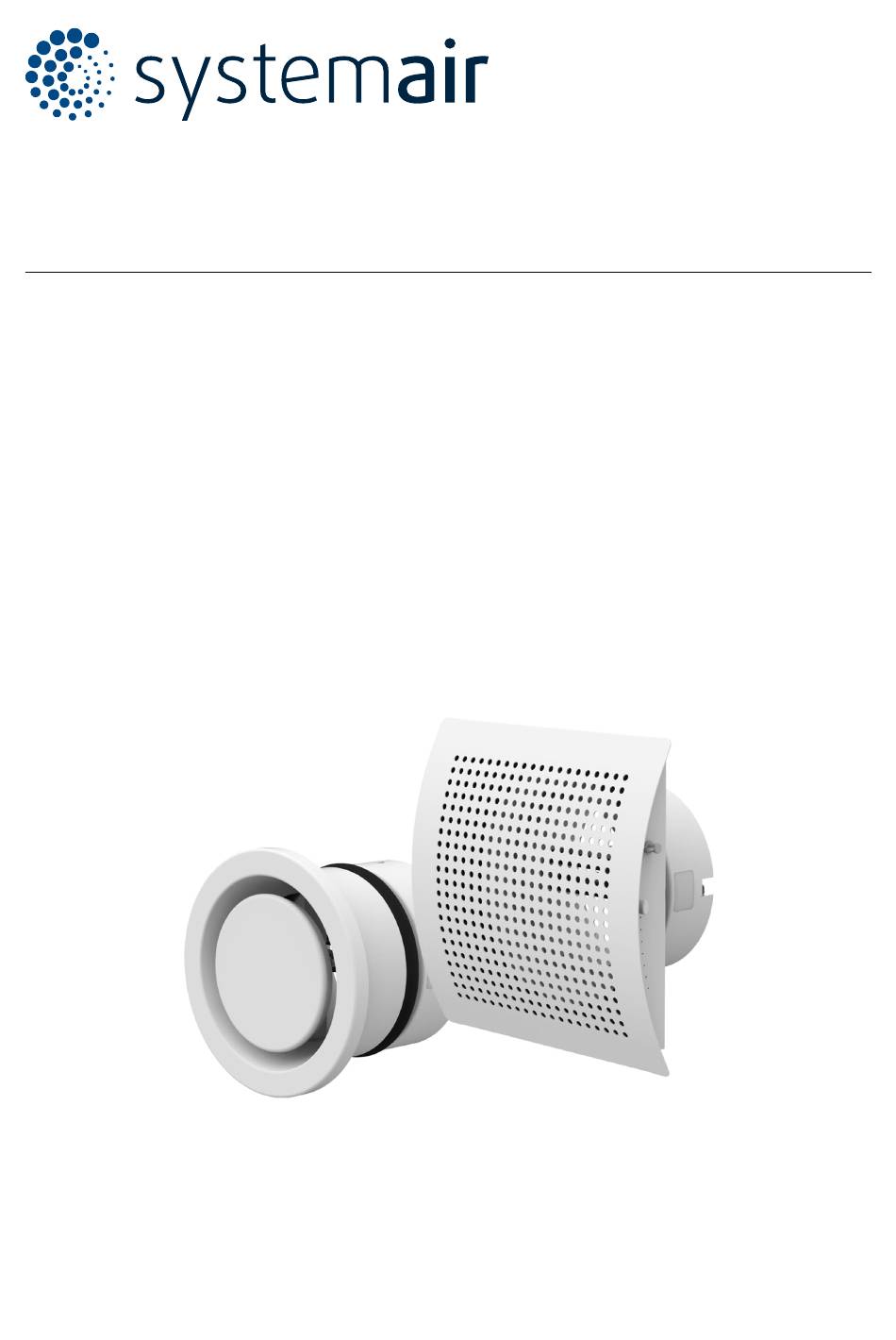

  • Page 1 Handbook F-C2...VA Cartridge Fire Damper within Valve...

  • Page 2: Table Of Contents

    Table of Contents Overview Technical Parameters Diagrams Dimensions & Weights Ordering Code Product Handling Installation Operation Manual...

  • Page 3: Overview

    Description Fire dampers are passive fire protection and are designed to utilize compartmentalization to prevent the spread of toxic gases, smoke and fire. By default, F-C2 fire dampers are only supplied with spring loaded activation. In case of fire, the fire damper closes automatically when the temperature of the air in the duct reaches 72°C.
  • Page 4 Material Composition The product contains galvanized steel, graphite fire-proof laminate, polyurethane foam. These are processed in accordance with local regulations. The product contains no hazardous substances, except for the solder in the thermofuse, which contains a milligram of lead. Calcium silicate board is used in sizes greater than 125 mm. BOR-S and BOR-R are manufactured from galvanized sheet metal and powder coated to RAL9003 (signal white) as standard.

  • Page 5: Technical Parameters

    Technical Parameters Durability Test • 50 cycles • No change of the necessary properties. Fire Testing Pressure Under-pressure up to 300 Pa Safety Position Closed - In fire scenario the damper closes via spring between blades Possible Installations Refer to the "Installation" section Direction of the Airflow Both direction Permitted air Velocity...
  • Page 6 Product Parts The F-C2 packaging also includes additional product label, that must be attached to the duct next to wall where the F-C2 fire damper is installed.
  • Page 8 Notes: Cartridge fire damper F-C2 made with sheet-metal blades, size range from 100 mm up to 125 mm Cartridge fire damper F-C2 made with calcium silicate blades, size range from 140 mm up to 200 mm...
  • Page 9 Legend: P1 - Fire damper (F-C2) P1.1 - Casing (1-VA, 2-VA) P1.1* - Casing (3-VA, 4-VA, 5-VA, 6-VA) P1.2 - Blades P1.3 - Thermal fuse link P1.4 - Blades spring P1.5 - Detent spring P1.6 - External peripheral sealing P1.7 - Internal peripheral sealings P1.8 - Blade surface foams P1.9 - Product label P2 - BOR-S...
  • Page 10 Assessed Performance of F-C2 20 CE 1396 Systemair Production a.s. Hlavná 371, 900 43 Kalinkovo, Slovakia 1396-CPR-0183, F-C2 EN 15650 : 2010 Circular fire dampers Nominal activation conditions/sensitivity - Pass • sensing element load bearing capacity • sensing element response temperature Response delay (response time) - Pass •...

  • Page 11: Diagrams

    Diagrams Accessory CBR-C2 and fire resistance class (EI60S, EI90S and EI120S) do not affect the pressure drop and A-weighted total discharged sound power level. The pressure drop and A-weighted total discharged sound power level depend on the complete product: F-C2 damper together with duct piece and air terminal devices.
  • Page 12 F-C2-125-H0-2-VA F-C2-100-H0-3-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) 50 l/s Position: 3 Position: 5 Position: 7 Position: 1 Position: 9 m³/h m³/h F-C2-125-H0-3-VA F-C2-160-H0-3-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop &...
  • Page 13 F-C2-160-H0-4-VA F-C2-200-H0-4-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) m³/h m³/h F-C2-80-H0-5-VA F-C2-100-H0-5-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) m³/h m³/h F-C2-125-H0-5-VA...
  • Page 14 F-C2-200-H0-5-VA F-C2-80-H0-6-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) m³/h 60 m³/h F-C2-100-H0-6-VA F-C2-125-H0-6-VA Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) m³/h m³/h F-C2-160-H0-6-VA...
  • Page 15 (m3^/h), (l/s) - Air flow volume ±Δ (%) - Deviation from measured value (dB(A)) - A-weighted total sound power level v (m/s) - Air face velocity...

  • Page 16: Dimensions & Weights

    Dimensions & Weights Dimensions of F-C2...1-VA Overhangs and Weights of F-C2...1-VA F-C2...1-VA DN (mm) 18,8 31,3 57,0...
  • Page 17 Free Area of F-C2...1-VA Pos. F-C2...1-VA 0,0023 0,0022 0,0021 0,0020 0,0019 0,0018 0,0017 0,0016 0,0014 DN (mm) 0,0031 0,0029 0,0028 0,0027 0,0025 0,0024 0,0022 0,0021 0,0019...
  • Page 18 Dimensions of F-C2...2-VA Overhangs and Weights of F-C2...2-VA F-C2...2-VA DN (mm) 18,8 31,3 Free Area of F-C2...2-VA Pos. F-C2...2-VA 0,0024 0,0023 0,0021 0,0019 0,0018 0,0017 0,0015 0,0014 DN (mm) 0,0032 0,0030 0,0028 0,0026 0,0024 0,0022 0,0020 0,0019 0,0058 0,0055 0,0052 0,0050 0,0048 0,0045...
  • Page 19 Dimensions of F-C2...3-VA Overhangs and Weights of F-C2...3-VA F-C2...3-VA øD øA øB DN (mm) 18,8 107,1 31,3 132,1 57,0 167,1 Free area of F-C2...3-VA Pos. (mm) F-C2...3-VA 0,0012 0,0020 0,0024 0,0037 0,0049 0,0098 DN (mm) 0,0014 0,0023 0,0029 0,0043 0,0057 0,0114 0,0016 0,0026...
  • Page 20 Dimensions of F-C2...4-VA Overhangs and Weights of F-C2...4-VA F-C2...4-VA øD øA øB DN (mm) 18,8 107,1 31,3 132,1 57,0 167,1 77,0 207,1 Free Area of F-C2...4-VA Pos. (mm) F-C2...4-VA -7,5 0,0009 0,0011 0,0016 0,0020 0,0025 0,0030 0,0010 0,0013 0,0018 0,0023 0,0029 0,0034 DN (mm)
  • Page 21 Dimensions of F-C2...5-VA Overhangs and Weights of F-C2...5-VA F-C2...5-VA øD øA øB DN (mm) 87,1 18,8 107,1 31,3 132,1 57,0 167,1 77,0 207,1 Free Area of F-C2...5-VA Pos. (%) F-C2...5-VA 0,0009 0,0019 0,0029 0,0040 0,0010 0,0021 0,0032 0,0044 DN (mm) 0,0010 0,0021 0,0032...
  • Page 22 Dimensions of F-C2...6-VA Overhangs and Weights of F-C2...6-VA F-C2...6-VA øD øA øB DN (mm) 87,1 18,8 107,1 31,3 132,1 57,0 167,1 77,0 207,1 Free Area of F-C2...6-VA Pos. (mm) F-C2...6-VA 0,0017 0,0034 0,0051 0,0068 0,0021 0,0042 0,0064 0,0085 0,0106 0,0127 DN (mm) 0,0025 0,0050...

  • Page 23: Ordering Code

    Ordering code F-C2 - Dimension, øDN: 80, 100, 125, 160, 200 mm A - Type of Activation Spring loaded blades, release by a thermal fuse link set to 72 °C., no switches B - Valve type BOR-S BOR-R Balance-S Balance-E C - F-C2 Subtype Valve Example of the F-C2...VA Fire Dampers Ordering Code...

  • Page 24: Product Handling

    Product Handling Warning Some damper parts can have sharp edges. To prevent injuries, use gloves when you install or move the damper. Ensure that installation is performed by a trained person. Please follow the graphic instructions for placing and setting the valve.
  • Page 25 F-C2...1-VA Pos. DN (mm) Q (l/s) Q (l/s) = k · √ Δp (Pa)
  • Page 27 F-C2...2-VA Pos. DN (mm) Q (l/s) Q (l/s) = k · √ Δp (Pa)
  • Page 29 360° ... 180° 360° 180°...
  • Page 30 F-C2...3-VA Pos. (mm) DN (mm) Q (l/s) 10,3 Q (l/s) = k · √ Δp (Pa) F-C2...4-VA Pos. (mm) -7,5 DN (mm) Q (l/s) 10,2 11,5 Q (l/s) = k · √ Δp (Pa) F-C2...5-VA Pos. (mm) DN (mm) Q (l/s) Q (l/s) = k ·...
  • Page 31 F-C2...6-VA Pos. (mm) 180° 360° 180° 360° 180° 360° 180° 360° DN (mm) Q (l/s) 10,4 10,9 Q (l/s) = k · √ Δp (Pa) Legend for Product Handling: P1 - Fire damper (F-C2) P1.1* - Casing (3-VA, 4-VA, 5-VA, 6-VA) P2 - BOR-S P2.1 - Front panel P2.2 - Backing box...

  • Page 32: Installation

    Installation ≥ 100 mm EI 60 (v i ↔ o) S ≥ 100 mm (≥ 500 kg/m ≥ 120 mm 360° EI 90 (v i ↔ o) S ≥ 125 mm ≥ 100 mm (DN160 ... DN200) ≥ 100 mm F-C2...VA EI 120 (v i ↔...
  • Page 33 4. check the damper’s functionality as per the chapter “Fire Damper Functionality Check” before you install the fire damper. This procedure prevents the installation of a damper that has been damaged during transportation or handling. Information about installation, maintenance and operation is available in the “HandBook_F-C2...VA” document or more can be found at design.systemair.com.
  • Page 34 Installation 1. Wet Using Plaster/Mortar/Concrete Filling 1. The supporting construction opening must be prepared as depicted in wall preparation. Opening surfaces must be even and cleaned off. 2. The opening dimension D1 is driven by the nominal dimensions of the damper with added clearance. The flexible wall opening must be reinforced as per the standards for plasterboard walls when a vertical beam was breached with the opening.
  • Page 44 Opening and Wall and/or Ceiling Preparations...
  • Page 45 Damper Minimum Distances Legend for Installation 1. Wet 1S - F-C2...1-VA (P1+P2) 1R - F-C2...1-VA (P1+P3) P1 - Fire damper (F-C2) P2 - BOR-S P3 - BOR-R P4 - BALANCE-S (Supply) P5 - BALANCE-E (Exhaust) P6 - EFF (Exhaust) P7 - TFF (Supply) P9 - Screw UNI 4×30 mm 2 - Connected metal ductwork 3 - Concrete/masonry/cellular concrete wall...
  • Page 46 Installation 2. Dry Using Mineral Wool and Coverplates 1. The supporting construction opening must be prepared as depicted in wall preparation. Opening surfaces must be even and cleaned off. 2. The opening dimension D1 is driven by the nominal dimensions of the damper with added clearance. The flexible wall opening must be reinforced as per the standards for plasterboard walls when a vertical beam was breached with the opening.
  • Page 47 Notes: 2. Dry - Dry Installation, Using Mineral Wool and Coverplates a) - Flexible (plasterboard) wall b) - Concrete/masonry/cellular concrete (rigid) wall - Vertical supporting construction (wall)
  • Page 50 Opening and Wall and/or Ceiling Preparations Damper Minimum Distances...
  • Page 51 Legend for Installation 2. Dry 1S - F-C2...1-VA (P1+P2) 1R - F-C2...1-VA (P1+P3) P1 - Fire damper (F-C2) P2 - BOR-S P3 - BOR-R P4 - BALANCE-S (Supply) P5 - BALANCE-E (Exhaust) P6 - EFF (Exhaust) P7 - TFF (Supply) P9 - Screw UNI 4×30 mm 2 - Connected metal ductwork 3 - Concrete/masonry/cellular concrete wall...
  • Page 52 Installation 3. Soft Installation in a Soft Crossing with fire-resistive coating With this installation we recommend using flexible connection (see accessory FCR-C2) on one side, due thermal expansion of connected duct during fire. 1. The supporting construction opening must be prepared as depicted in wall preparation. Opening surfaces must be even and cleaned off.
  • Page 56 Opening and Wall and/or Ceiling Preparations Damper Minimum Distances...
  • Page 57 Legend for Installation 3. Soft 1S - F-C2...1-VA (P1+P2) 1R - F-C2...1-VA (P1+P3) P1 - Fire damper (F-C2) P2 - BOR-S P3 - BOR-R P4 - BALANCE-S (Supply) P5 - BALANCE-E (Exhaust) P6 - EFF (Exhaust) P7 - TFF (Supply) P9 - Screw UNI 4×30 mm 2 - Connected metal ductwork 3 - Concrete/masonry/cellular concrete wall...

  • Page 58: Operation Manual

    Operation Manual Warning: Both sides of F-C2 blades are spring loaded in the open position and are closing very quick. To avoid injury, make sure to keep the blades movement area clear while manipulating with F-C2. The fire damper is ready for installation when its blades are in open position. To open the damper follow these steps: A Check the thermal fuse link.
  • Page 59 If any discrepancies are discovered, these need to be entered in the Operating Journal along with a proposal for their removal. The Operating Journal can be found downloaded from design.systemair.com. Before the first installation, it needs to be inspected under the identical conditions as apply to the above mentioned 6-month inspections.
  • Page 60 Supplement Any deviations from the technical specifications contained in SystemairDESIGN or Handbook, and the terms should be discussedwith the manufacturer. We reserve the right to make any changes to the product without prior notice,provided that these changes do not affect the quality of the product and the required parameters.
  • Page 61 © Copyright Systemair Production a.s All rights reserved E&OE Systemair reserves the right to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Original instructions 2024-02-15...
