FDR-3G...KR

Fire Damper FDR-3G with Kit-R

Handbook

Table of Contents

Need help?

Do you have a question about the FDR-3G KR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SystemAir FDR-3G KR Series

Page 1 FDR-3G...KR Fire Damper FDR-3G with Kit-R Handbook...
Page 2: Table Of Contents
2/35 | FDR-3G...KR Table of Contents Overview ............3 Technical Parameters .
Page 3: Overview

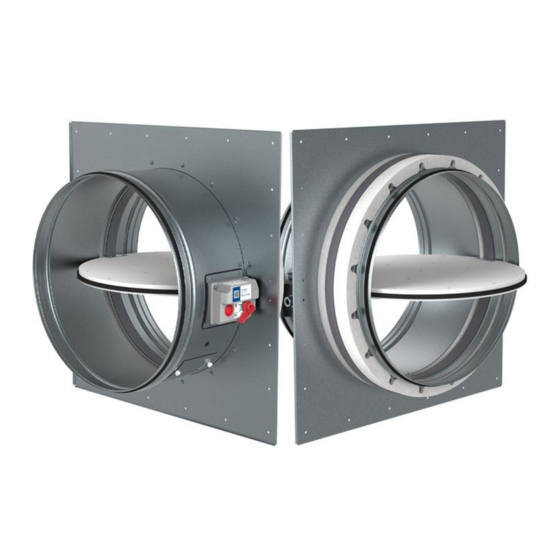

3/35 | FDR-3G...KR Description Fire dampers with round Kit up to size 630 mm represent passive fire protection, designed with the help of compartmentalization to prevent the spread of toxic gases, smoke and fire. FDR-3G...KR fire dampers installation is designed with simplicity in mind. Standard fire dampers are designed and certified in accordance with EN 15650 and tested for EIS criteria according to EN 1366–2.
Page 4 4/35 | FDR-3G...KR Fire damper with an activation mechanism H0 + an AC 230 V electromagnetic release mechanism in the impulse connection (release takes place when the electromagnet is activated) + open and closed indication with AC 230 V or AC/DC 24 V contact switches.
Page 5: Technical Parameters
5/35 | FDR-3G...KR Technical Parameters Durability test • 50 cycles/manually operated activation mechanism – with no change of the required properties • 10000 + 100 + 100 cycles/actuator operated activation mechanism – with no change of the required properties • 20 000 cycles/modulated actuator (B24T-SR-KR or G24T-SR-KR) – with no change of the required properties Fire testing pressure Underpressure up to 300 Pa Safety position...
Page 6 6/35 | FDR-3G...KR Blade tightness (STN EN 1751) Class 3 as standard Tightness of the housing (STN EN 1751) Class C as standard Conformity with EC directives 2006/42/EC Machinery Directive 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive Driving actuator types Belimo: BLF230-T, BLF24-T, BFL24-SR-T, BF230-T, BF24-T, BF24-SR-T, BFN230-T, BFN24-T, BFN24-T, BFL230-T, BFL24- T, BFL24-SR-T (also with connection possibilities with acronyms ST, W) Gruner: 360TA-230-12-S2, 360CTA-024-12-S2, 360TA-024-12-S2, 340TA-230D-03-S2, 340TA-024D-03-S2,...
Page 7 7/35 | FDR-3G...KR Product parts Legend P1 Blade P2 Casing P3 Manually operated activation mechanism (H0;H...) P4 Actuator operated activation mechanism (B...;G...) P5 Inspection lid P6 Thermoelectric fuse (BAT72;TA-72) P7 Supply and communication unit (BKN230-24;FS-UFC24-2) P14 Kit Base plate P15 Cover plate (PROMAT) P16 Intumex P9 Release and test button P10 Crank...
Page 8 P12 Closed position P13 Hexagon bent wrench No.10 (not part of delivery) Assessed Performance - FDR-3G 19 CE 1396 Systemair Production a.s. Hlavná 371, 900 43 Kalinkovo, Slovakia 1396-CPR-0162, FDR-3G (valid for subgroups: …EX, …KS, …OF) EN 15650 : 2010...
Page 9: Diagrams
9/35 | FDR-3G...KR Diagrams The pressure drop and A-weighted total discharged sound power level depend on the nominal diameter of the damper and air flow volume at different duct pressures. The type of activation does not influences the airflow parameter, therefore only one activation type is shown in the diagrams.
Page 10 10/35 | FDR-3G...KR FDR-3G-...-H0-KR FDR-3G-...-H0-KR Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) 1000 1000 2000 Size: 400 Size: 560 Size: 450 Size: 630 Size: 500 2000 3000 5000 m³/h 3000 5000 m³/h...
Page 11: Dimensions & Weights
11/35 | FDR-3G...KR Dimensions Free area DN (mm) 100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 630 0,003 0,007 0,009 0,011 0,013 0,018 0,023 0,031 0,039 0,050 0,065 0,085 0,110 0,138 0,173 0,220 0,283 Dimensions DN (mm) 100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 600 630...
Page 12: Ordering Code
12/35 | FDR-3G...KR Ordering Code DN - Dimension, øDN 100 mm up to 630 mm B - Type of Activation (H0-KR up to B24T-SR-KR) H0-KR (Manual crank, no switches) H2-KR (Manual crank, 2 switches AC 230 V or AC/DC 24 V) H5-2-KR (Manual crank, AC/DC 24 V electromagnet, 2 switches AC 230 V or AC/DC 24 V) H6-2-KR (Manual crank, AC 230 V electromagnet, 2 switches AC 230 V or AC/DC 24 V) B230T-KR (AC 230 V Belimo Actuator)
Page 13 13/35 | FDR-3G...KR Standardardly in position: B; On demand in position: L, T.
Page 14: Installation
14/35 | FDR-3G...KR Installation Methods EI 60 (v i ↔ o) S FDR-3G...KR EI 90 (v i ↔ o) S DN100 ... DN630 360° 4 Kit EI 120 (v i ↔ o) S Notes: 4. Kit - Kit Installation, using an Installation Kit - Vertical wall Installation, Maintenance &...
Page 15 15/35 | FDR-3G...KR Installation - Kit Installation Using an Installation Kit IMPORTANT: The installation kit can not be delivered separately!The installation kit is delivered pre-mounted on a damper. 1. The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off.
Page 16 16/35 | FDR-3G...KR...
Page 17 17/35 | FDR-3G...KR DN (mm) 100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 600 630 øD (mm) 450 500 550 600 660 700 730 øD (mm) 437 487 537 587 647 687 717 (mm) 350 375 390 400 410 430 450 475 500 530 565 605 650 700 750 810 850 880...
Page 18 18/35 | FDR-3G...KR ≥ 200 mm (DN ≤ 560 mm) ≥ 300 mm (DN > 560 mm) ≥ 125 mm ≥ 370 mm (BST0; GST0) ≥ 0 mm ≥ 200 mm (DN ≤ 560 mm) ≥ 200 mm (DN ≤ 560 mm) ≥...
Page 19 19/35 | FDR-3G...KR Electrical Connections DN (mm) 100 125 140 150 160 180 200 225 250 280 315 B230T-KR/6,5 VA/BFL230-T B230T-KR/10 VA/BFN230-T B24T-KR/4 VA/BFL24-T B24T-KR/6 VA/BFN24-T B24T-W-KR/4 VA/BFL24-T-ST B24T-W-KR/6 VA/BFN24-T-ST BST0-KR/11 VA/BFL24-T-ST + BKN230-24 BST0-KR/11 VA/BFN24-T-ST + BKN230-24 B24T-SR-KR/6,5 VA/BFL24-T-SR B24T-SR-KR/8,5 VA/BFN24-T-SR DN (mm) 100 125 140 150 160 180 200 225 250 280 315 355 400 450 500...
Page 20 20/35 | FDR-3G...KR Type of activation H2-KR IMPORTANT: Risk of electric shock!Switch off the power supply before working on any electrical equipment.Only qualified electricians are allowed to work on the electrical system. Microswitch:Power Supply: 125/250V AC or 12/24V DCElectric Parameters: 3A NOTES: •...
Page 21: Electrical Parameters
21/35 | FDR-3G...KR Type of activation H5-2-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Microswitch: Power Supply: 125/250V AC or 12/24V DC Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC (50/60 Hz)/DC 24 V...
Page 22 22/35 | FDR-3G...KR Type of activation H6-2-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Microswitch: Power Supply: 125/250V AC or 12/24V DC Electric Parameters: 3A Impulse Electromagnet: Power Supply: 230V AC, 50/60 Hz...
Page 23 23/35 | FDR-3G...KR Type of activation B230T-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: 230V AC, 50/60 Hz NOTES: •...
Page 24 24/35 | FDR-3G...KR Type of activation G230T-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: 230V AC, 50/60 Hz NOTES: •...
Page 25 25/35 | FDR-3G...KR Type of activation B24T-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
Page 26 26/35 | FDR-3G...KR Type of activation G24T-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
Page 27 27/35 | FDR-3G...KR Type of activation BST0-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. This type of activation is with a Belimo supply and communication unit BKN230-24 (other communication units on demand).
Page 28 28/35 | FDR-3G...KR Type of activation GST0-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. This type of activation is with a Gruner supply and communication unit fs-UFC24-2 (other communication units on demand).
Page 29 29/35 | FDR-3G...KR Type of activation B24T-W-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. This type of activation is with provided cable connectors for the supply and communication unit (communication unit not part of the mechanism).
Page 30 30/35 | FDR-3G...KR Type of activation G24T-W-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. This type of activation is with provided cable connectors for the supply and communication unit (communication unit not part of the mechanism).
Page 31 31/35 | FDR-3G...KR Type of activation B24T-SR-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
Page 32 32/35 | FDR-3G...KR Type of activation G24T-SR-KR IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
Page 33: Operation Manual
33/35 | FDR-3G...KR Operation Manual Warning To avoid injury, make sure to wear gloves and keep the blades movement area clear while manipulating with the damper.NEVER OPEN THE INSPECTION LID WHEN THERE IS AIR FLOWING IN THE DUCT CONNECTED TO THE FIRE DAMPER! Fire Damper Functionality Check Manually Operated Activation Mechanism 1.
Page 34 34/35 | FDR-3G...KR Due to the need to perform a visual check of the damper’s internal parts, open the inspection lid. For small sizes there is the possibility of removing the mechanism to perform the inspection. The removable mechanism always needs to be replaced into the damper with the damper blade being closed.
Page 35 Systemair DESIGN • 2022-04-11 • Handbook_FDR_3G_KR_en-GB • C7319238-9528-400B-B6BC-135FC17D64B3 • Original instructions...
