3.3 Install the Unit

Always keep 200 mm of free space behind the UPS rear panel.
Check that the indications on the name plate located on the top cover of the UPS meets to
the AC-power source and the true electrical consumption of the total load.
Note: The UPS charges the battery as soon as it is connected to the AC-power source, even
if button is not pressed.
Once the UPS is connected to the AC-power source, 8 hours of charging are required before
the battery can supply the rated backup time.
When the cables connected to terminal block, the inner copper wire must not be exposed
to avoid the risk of electric shock.

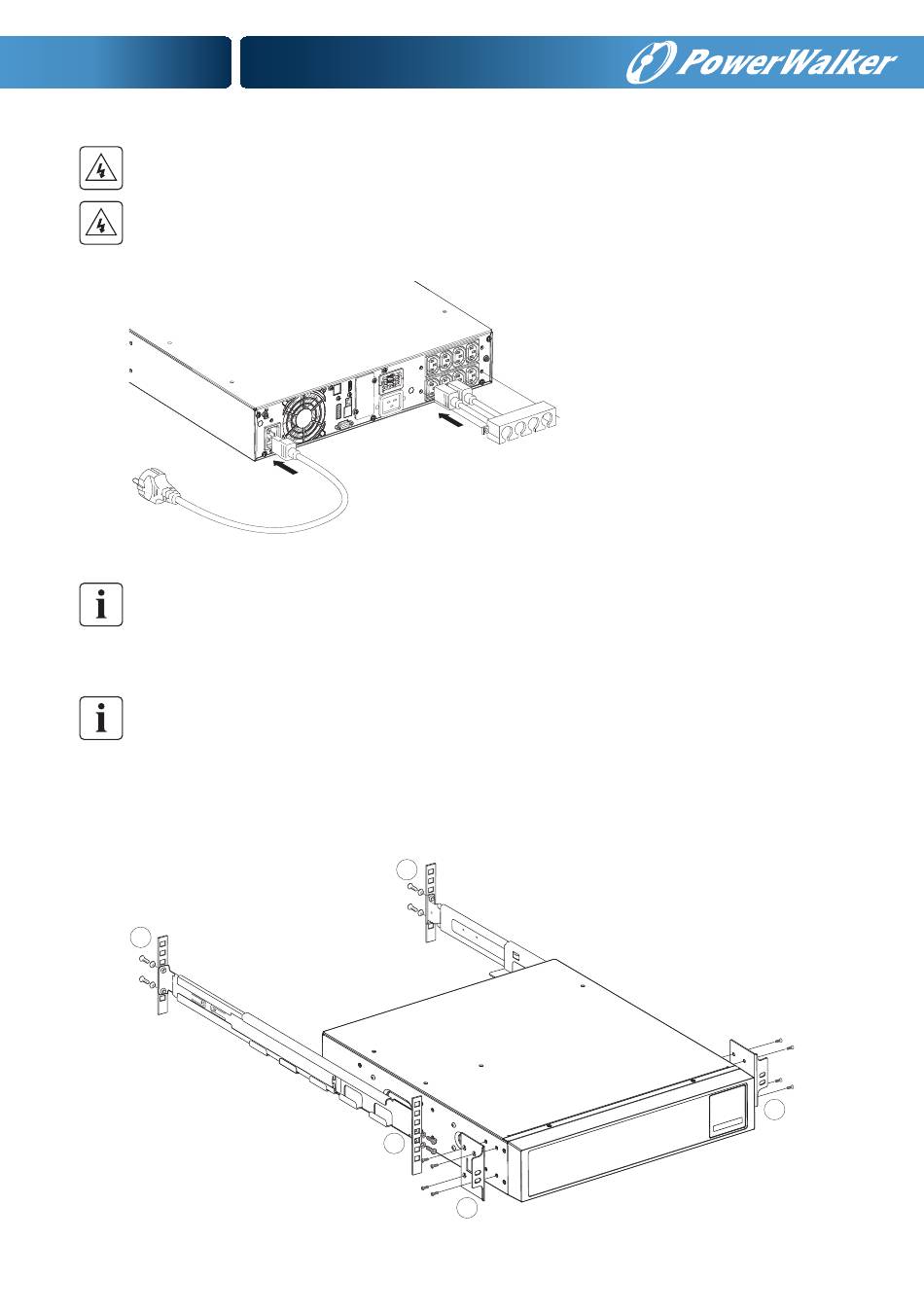

 Rack installation
Follow steps 1 to 4 for module mounting on the rails.
1
1
2
3
7
1. Connect the UPS input
socket to the AC-power source
using the cable of the protected
equipment.
2. Connect the loads to the
UPS using the cables.
3
