ENGLISH

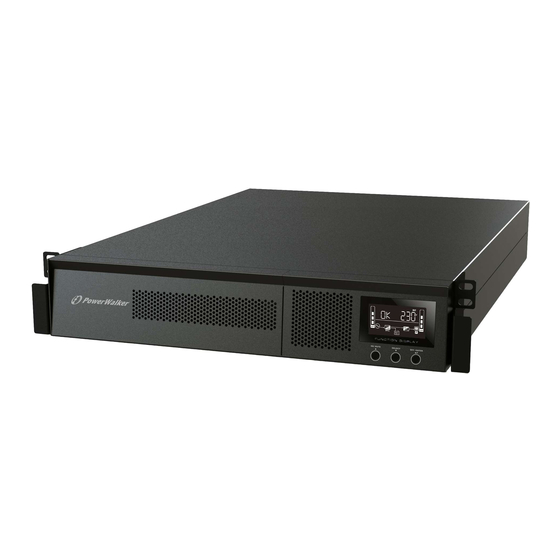

PowerWalker VFI RMG PF1 Series
I.
Assembly
The UPS can be assembled in a rack form using rack ears (Rack Mount Kit is not included) or in
tower form using tower holder. The LCD part can be taken out and turned 90 degrees to align
with orientation of the UPS.
Internal batteries are disconnected for transportation. It is necessary to open front panel and
connect the two available connectors before first usage. External batteries are connected in
front using third connector.
Details at
https://support.powerwalker.com/kb/faq.php?id=83
II.

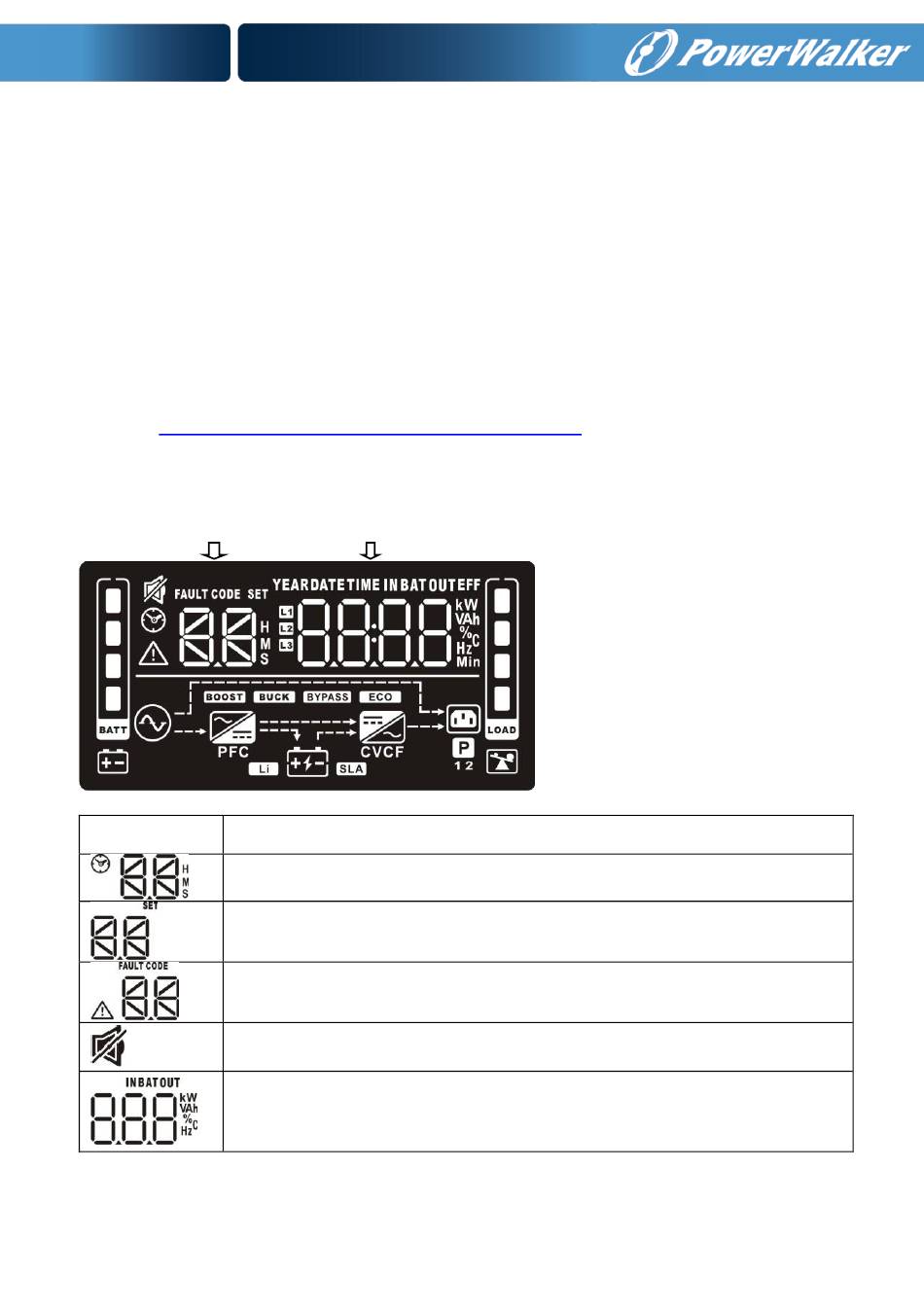

LCD Panel
Parameter 1
Function
Display
Indicates the estimated backup time. H: hours, M: minute, S: second.
Indicates the configuration items
Indicates the warning and fault codes
Indicates that the UPS alarm is disabled.
Indicates the input voltage, input frequency, input current, battery voltage,
battery current, battery Power, ambient temperature, output voltage,
output frequency, load current and load percent.
Quick Guide
Parameter 2
(faq.powerwalker.com)
Advertisement
Table of Contents
Related Manuals for PowerWalker VFI RMG PF1 Series
Summary of Contents for PowerWalker VFI RMG PF1 Series
- Page 1 ENGLISH Quick Guide PowerWalker VFI RMG PF1 Series Assembly The UPS can be assembled in a rack form using rack ears (Rack Mount Kit is not included) or in tower form using tower holder. The LCD part can be taken out and turned 90 degrees to align with orientation of the UPS.
- Page 2 ENGLISH Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%. Indicates overload. Indicates that programmable management outlets are working. Indicates the UPS connects to the mains. Indicates the battery is working. Indicates charging status Indicates the bypass circuit is working. Indicates the ECO mode is enabled.
-
Page 3: Communication Connection
ENGLISH Communication connection USB port RS-232 port Intelligent slot Network Surge Protection Apart from standard USB Port, the UPS is equipped with RS-232. Those two ports do not work at the same time. Battery Replacement The series offers hot-swappable battery sets easily accessible from front. The battery set can be disconnected and replaced without changing any settings in the UPS. -
Page 4: Frequency Converter Mode
ENGLISH connected Sounding every 2 seconds Over Charge Sounding every 2 seconds Site wiring fault Sounding every 2 seconds EPO enable Sounding every 2 seconds Over temperature Sounding every 2 seconds Charger failure Sounding every 2 seconds (At this time, UPS is off to Battery fault remind users something wrong with battery) - Page 5 ENGLISH standby mode or bypass mode. Press this button to display next selection in UPS setting mode. (down key) ON/Mute + Select Button When the main power is normal, press the two buttons simultaneously for 3 seconds. Then UPS will enter to bypass mode. This action will be ineffective when the input voltage is out of acceptable range.
-
Page 6: Technical Specification
ENGLISH Battery total AH setting 7-999 Total Power of batteries in Ah (2 strings of 9Ah means 18Ah regardless of the length of the string) Maximum charger current setting 1 / 2 / 4 / 6 / Total Power of batteries in Ah (2 strings of 9Ah 8 / 10 / 12 means 18Ah regardless of the length of the string) - Page 7 20-95 % RH @ 0- 40°C (non-condensing) Humidity Noise Level Less than 50dBA @ 1 Meter (With fan speed control) MANAGEMENT USB with HID PowerWalker ViewPower * Derate Power to 80% of Power when the output voltage is adjusted to 200VAC or 208VAC.
