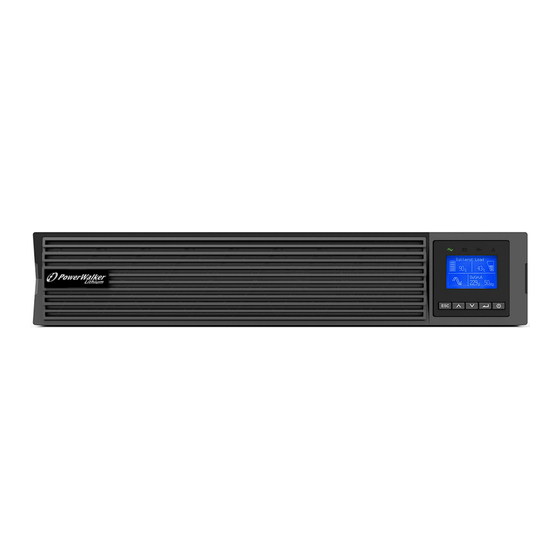

- Page 1 PowerWalker PowerWalker VFI LICR IoT Series USER MANUAL Service and support: Call your local service representative...
- Page 3 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. UPS Tower models are considered acceptable for use in the ambient of 0 ~ 45°C; UPS RT models are considered acceptable for use in the ambient of 0 ~ 40°C; Certification standards •...
- Page 4 carry sufficient information to enable the replacement of the battery with a suitable recommended type. ෮ CAUTION: Do not dispose of batteries in a fire. The batteries may explode. Dispose of used batteries according to the instructions. ෮ Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.
- Page 5 Special precautions • The unit is heavy: wear safety shoes and use vacuum lifter preferentially for handling operations. • All handling operations will require at least two people (unpacking, lifting, installation in rack system). • Before and after the installation, if the UPS remains de-energized for a long period, the UPS must be energized for a period of 24 hours, at least once every 6 months (for a nor- mal storage temperature less than 25°C).
-
Page 6: Table Of Contents
Contents Introduction ......................1 1.1 Electronic equipment protection ..................1 1.2 Environmental protection .....................2 Product Overview ....................3 2.1 Weight and Dimension ....................3 2.2 Rear panels ........................4 Installation ......................6 3.1 Inspecting the equipment .....................6 3.2 Checking the accessory kit ....................6 3.3 Install the Unit .......................7 3.4 Connecting the EBM(s) ....................8 Operation ...................... -
Page 7: Introduction
Introduction Thank you for selecting PowerWalker VFI LICR IoT UPS to protect your electrical equipment. We recommend that you take the time to read this manual to take full advantage of the many features of the UPS (Uninterruptible Power System). -
Page 8: Environmental Protection
1.2 Environmental protection Products are developed according to an eco-design approach. Substances This product does not contain CFCs, HCFCs or asbestos. Packing To improve waste treatment and facilitate recycling, separate the various packing compo- nents. • The cardboard we use comprises over 50% of recycled cardboard. •... -
Page 9: Product Overview
Product Overview 2.1 Weight and Dimension The weights in this table is reference only, please see the labels on the carton for details. RT models Description Net Weights (kg) Dimensions: D x W x H (mm) RT 1K 14.95 445*438*85.5 RT 1.5K 15.2 445*438*85.5... -
Page 10: Rear Panels
2.2 Rear panels RT 1K/1.5k 5 3 1 RT 2K 5 3 1 RT 3K 5 3 1... - Page 11 RT 36V& 72V EBM WLAN(HDMI) Ethernet (RJ45) RPO/Dry in/Dry out EBM auto detection RS232 Slot Card Box EBM Connector Input Breaker(optional) Input Socket/ Output Socket/ Output Fuse (optional) Input Terminal Output Terminal Programmable Output Socket...
-
Page 12: Installation
Installation 3.1 Inspecting the equipment If any equipment has been damaged during shipment, keep the shipping cartons and pack- ing materials for the carrier or place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a claim for concealed damage. To file a claim for shipping damage or concealed damage: 1. -
Page 13: Install The Unit
3.3 Install the Unit Always keep 200 mm of free space behind the UPS rear panel. Check that the indications on the name plate located on the top cover of the UPS meets to the AC-power source and the true electrical consumption of the total load. Connect the UPS input socket to the AC-power source using the cable of the protected... -
Page 14: Connecting The Ebm(S)
Tower installation 3.4 Connecting the EBM(s) A small amount of arcing may occur when connecting an EBM to the UPS. This is normal and will not harm personnel. - Page 15 Up to 4 EBMs can be connected to the UPS. 3.4.1 RT models...
-
Page 16: Operation
Operation 4.1 LCD panel The UPS provides useful information about the UPS itself, load status, events, measure- ments and settings. Online mode Fault indicator (green) indicator (red) Battery mode Bypass mode indicator (orange) indicator (orange) Battery Load Output Escape Down Enter On/Off button... -
Page 17: Lcd Description
The following table shows the indicator status and description: The button Function Illustration Press the Button for >100ms & < 1s can power on the UPS Power on without utility input at the condition of battery connected When the Unity is powered on, press the button for >1s can turn Turn on on the UPS Turn off... - Page 18 Operation status Cause Description Standby mode The UPS is Off without output. Online mode The UPS is operating normally and protecting the equipment. A utility failure has occurred, and the UPS is powering the equipment with battery. Battery mode 1 beep every 4 Prepare your equipment for shutdown.
-
Page 19: Display Functions
4.3 Display functions When starting the UPS, the display is in the default UPS status summary screen. Main menu Submenu Display information or Menu function UPS mode, IoT status, date/time, battery status and UPS status current alarms Event log Displays the events and faults stored Load Load information In /Out... - Page 20 Submenu Available settings Default settings Output frequency [autosensing], [converter 50Hz, 60Hz] autosensing High efficiency mode [disabled], [enabled] disabled Auto bypass [disabled], [enabled] disabled Load segment [Auto start delay], [Auto shutdown delay] Load segment delay time Cold start/Auto restart: Start/Auto restart/Start enabled [disabled], [enabled] from bypass...
-
Page 21: Starting The Ups With Utility
4.5 Starting the UPS with utility � � � Battery Load Battery Load Input Input � sec Plugged in power cord Starting � Battery Load Output UPS in normal mode 4.6 Starting the UPS on Battery Before using this feature, the UPS must have been powered by utility power with output enabled at least once. -
Page 22: Ups Shutdown
4.7 UPS Shutdown Battery Load Battery Load Input Output UPS shutting off ... Unplug the power cord, UPS in Standby mode 4 sec UPS shutting off... -
Page 23: Communication
Communication 5.1 RS232 and USB 1. Communication cable to the serial or USB port on the computer. 2. Connect the other end of the communication cable to the RS232 or USB communication port on the UPS. 5.2 UPS remote control functions •... -
Page 24: Iot
5.3 IoT Built-in ethernet port and WLAN (optional accessary) port enable market-leading and easy- to-use IoT solutions for: • Winpower View mobile app which allows you to remote monitor UPS(s) and keep in- formed about critical UPS event always. • Remote report UPS faults and status (contact with your service for detail) from APP or registered APP account (Email address). -
Page 25: Modbus Tcp
5.5 Intelligent Card (Optional) Intelligent Card allow the UPS to communicate with different types of devices in variety of networking environments. The PowerWalker VFI LICR IoT series could use the following connectivity cards, please contact your local distributor for details. -
Page 26: Ups Management Software
5.6 UPS Management Software 5.6.1 WinPower WinPower provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPSs. - Page 27 5.6.2 WinPower View APP WinPower View is a mobile app which allows you to centralized monitoring UPS(s) con- nected to cloud. Please download it from Google Play store or Apple APP store. chapter 5.3 Please refer to the for IoT connection.
-
Page 28: Ups Maintenance
UPS maintenance 6.1 Equipment care For the best preventive maintenance, keep the area around the equipment clean and dust free. If the atmosphere is very dusty, clean the outside of the system with a vacuum cleaner. For full battery life, keep the equipment at an ambient temperature of 25°C (77°F). The batteries are rated for 8 years service life. - Page 29 • Replacing the internal battery (For RT) 1. Put the new battery pack into the UPS. 2. Screw back the metal protection covers and the front panel. 3. Testing new batteries. Verify that the replacement batteries have the same rating and brand as the batteries being replaced.
-
Page 30: Recycle
6.5 Recycle Contact your local recycling or hazardous waste center for information on proper disposal of the used equipment. Do not dispose of the batteries in the fire. Which may cause battery explosion. The batter- ies must be rightly disposed according to local regulation. Do not open or destroy the batteries. -
Page 31: Troubleshooting
Troubleshooting Typical alarms and faults: To check the UPS status and Event log: 1. Press any button on the front panel display to activate the menu options. 2. Press the button to select Event log. 3. Scroll through the listed events and faults. The following table describes typical conditions. - Page 32 Conditions Possible cause Action Power overload Power requirements exceed Remove some of the equipment from the UPS. the UPS capacity (greater than The alarm resets when the condition becomes 100% of nominal; inactive. LED is On. over temperature warning The UPS internal temperature If the UPS is switched to bypass mode, the is too high.
-
Page 33: Specifications
Specifications 8.1 UPS Block Diagram Bypass DC/AC Input AC/DC Output Inverter Filter Boost Filter DC/DC Battery Charger 8.2 UPS Specification Model name 1.5k Power rating VA/Watt 1000VA/1000W 1500VA/1500W 2000VA/2000W 3000VA/3000W Line mode up to 91.3% up to 92.1% up to 93.8% up to 94.3% Efficiency ECO mode... - Page 34 Model name 1.5k Short-circuit Bypass mode 550A/2.8ms 699A/7ms 699A/7ms current (RMS) Normal/Battery 20A/100ms 36A/100ms 54A/100ms /protect time mode Voltage 48VDC 76.8VDC 76.8VDC Battery Capacity (AH) Material Lithium iron phosphate (Li-FePO4) Maximum EBM quantity EBM auto detection Battery Hot swappable Charging method Charger Charging current 1.5A...
- Page 35 Model name 1.5k Input power cable Output power cable EBM cable Yes (in EBM) USB cable RS232 cable Optional Accessory Rail kit Optional Tower Feet Rack ear Manual (English)
- Page 36 614-40197AN1-00...
