ENGLISH
Quick Guide

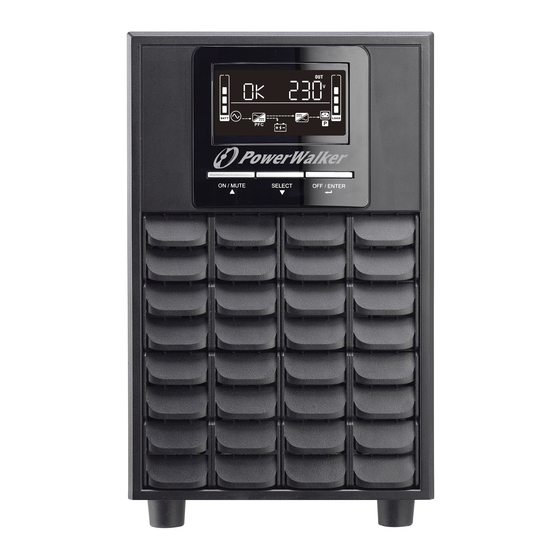

PowerWalker VFI CG PF1 Series
I.

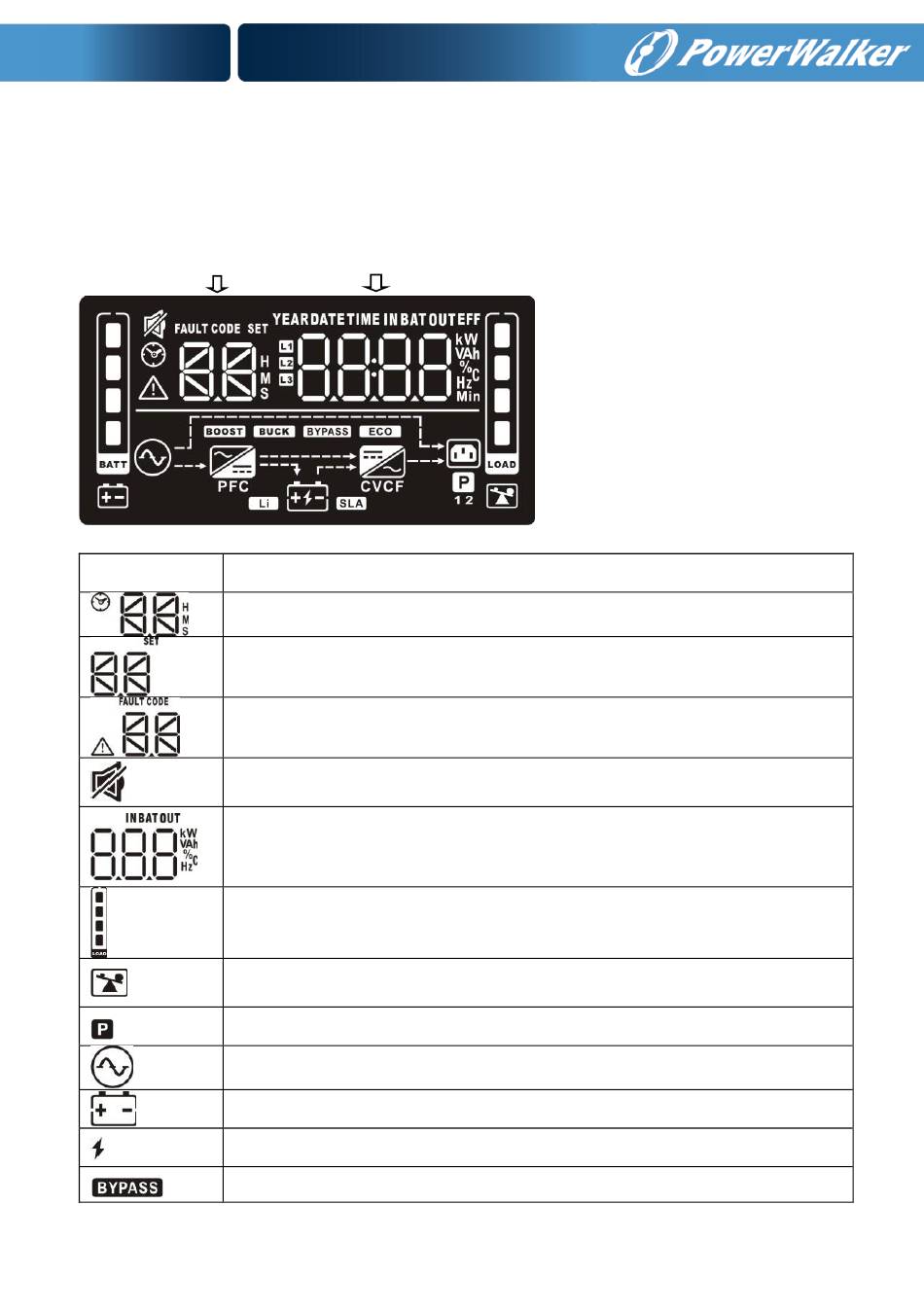

LCD Panel
Parameter 1
Parameter 2
Function
Display
Indicates the estimated backup time. H: hours, M: minute, S: second.
Indicates the configuration items
Indicates the warning and fault codes
Indicates that the UPS alarm is disabled.
Indicates the input voltage, input frequency, input current, battery voltage,
battery current, battery Power, ambient temperature, output voltage,
output frequency, load current and load percent.
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
Indicates overload.
Indicates that programmable management outlets are working.
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates charging status
Indicates the bypass circuit is working.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PowerWalker VFI CG PF1 Series
Summary of Contents for PowerWalker VFI CG PF1 Series
- Page 1 ENGLISH Quick Guide PowerWalker VFI CG PF1 Series LCD Panel Parameter 1 Parameter 2 Function Display Indicates the estimated backup time. H: hours, M: minute, S: second. Indicates the configuration items Indicates the warning and fault codes Indicates that the UPS alarm is disabled.
-
Page 2: Communication Connection
ENGLISH Indicates the ECO mode is enabled. Indicates the AC to DC circuit is working. Indicates the PFC circuit is working. Indicates the inverter circuit is working. Indicates the UPS is working in converter mode. Indicates the output is working. Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%. - Page 3 ENGLISH Apart from standard USB Port, the UPS is equipped with RS-232. Those two ports do not work at the same time. Modes and warnings Warning Icon Alarm Muted Online mode No Alarm ECO mode No Alarm Frequency Converter No Alarm mode Battery mode Sounding every 5 seconds...
-
Page 4: Frequency Converter Mode
ENGLISH Sounding every 2 seconds (At this time, UPS is off to Battery fault remind users something wrong with battery) Out of bypass voltage Sounding every 2 seconds range Bypass frequency Sounding every 2 seconds unstable Sounding every 2 seconds Battery replacement Sounding every 2 seconds EEPROM error... - Page 5 ENGLISH Parameter 1 Parameter 2 01 Output voltage setting 200/208/22 Value in V AC 0 /230/240 02 Frequency Converter Mode ENA/dIS Enable or Disable (default) Output frequency setting 50 / 60 Value in Hz 50 / 60 Value in Hz 04 ECO Mode ENA/dIS Enable or Disable (default)
- Page 6 ENGLISH means 13.68V/bat EPO logic setting Active Open (default). EPO will be activated if pins 1 and 2 are not shorted Active Close. EPO will be activated if pins 1 and 2 are shorted 17 External output isolation ENA/dIS Allow or disallow (default) external transformer connection output isolation transformer connection.
- Page 7 20-95 % RH @ 0- 40°C (non-condensing) Humidity Noise Level Less than 50dBA @ 1 Meter (With fan speed control) MANAGEMENT USB with HID PowerWalker ViewPower * Derate Power to 80% of Power when the output voltage is adjusted to 200VAC or 208VAC.
