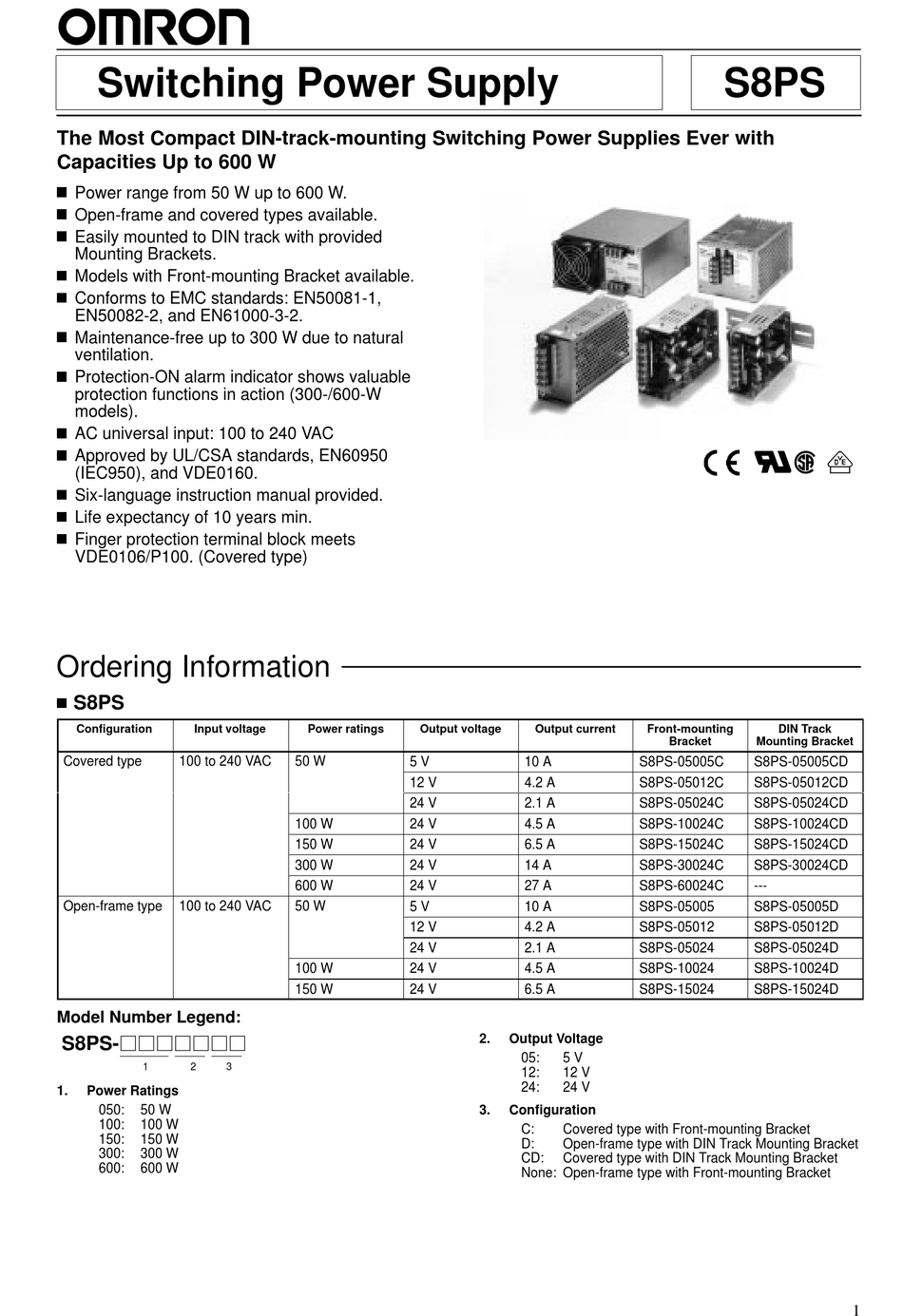

Omron S8PS Series Product Manual

Switching Power Supply
The Most Compact DIN-track-mounting Switching Power Supplies Ever with
Capacities Up to 600 W
Power range from 50 W up to 600 W.
Open-frame and covered types available.
Easily mounted to DIN track with provided
Mounting Brackets.
Models with Front-mounting Bracket available.
Conforms to EMC standards: EN50081-1,
EN50082-2, and EN61000-3-2.
Maintenance-free up to 300 W due to natural
ventilation.
Protection-ON alarm indicator shows valuable
protection functions in action (300-/600-W
models).
AC universal input: 100 to 240 VAC
Approved by UL/CSA standards, EN60950
(IEC950), and VDE0160.
Six-language instruction manual provided.
Life expectancy of 10 years min.
Finger protection terminal block meets
VDE0106/P100. (Covered type)

Ordering Information

S8PS
Configuration Input voltage
Covered type 100 to 240 VAC
Co e ed y e 00 o
O e Open-frame type a e y e 100 to 240 VAC 00 o
Model Number Legend:
S8PS-jjjjjjj
1 2 3
1. Power Ratings
050: 50 W
100: 100 W
150: 150 W
300: 300 W
600: 600 W
Power ratings
50 W
0 C 50
100 W
150 W
300 W
600 W
0 C 50 50 W
100 W
150 W
Output voltage Output current
5 V 10 A
12 V 4.2 A
24 V 2.1 A
24 V 4.5 A
24 V 6.5 A
24 V 14 A
24 V 27 A
5 V 10 A
12 V 4.2 A
24 V 2.1 A
24 V 4.5 A
24 V 6.5 A
2. Output Voltage
05: 5 V
12: 12 V
24: 24 V
3. Configuration
C: Covered type with Front-mounting Bracket
D: Open-frame type with DIN Track Mounting Bracket
CD: Covered type with DIN Track Mounting Bracket
None: Open-frame type with Front-mounting Bracket
S8PS
RC
Front-mounting DIN Track
Bracket Mounting Bracket
S8PS-05005C S8PS-05005CD
S8PS-05012C S8PS-05012CD
S8PS-05024C S8PS-05024CD
S8PS-10024C S8PS-10024CD
S8PS-15024C S8PS-15024CD
S8PS-30024C S8PS-30024CD
S8PS-60024C ---
S8PS-05005 S8PS-05005D
S8PS-05012 S8PS-05012D
S8PS-05024 S8PS-05024D
S8PS-10024 S8PS-10024D
S8PS-15024 S8PS-15024D
