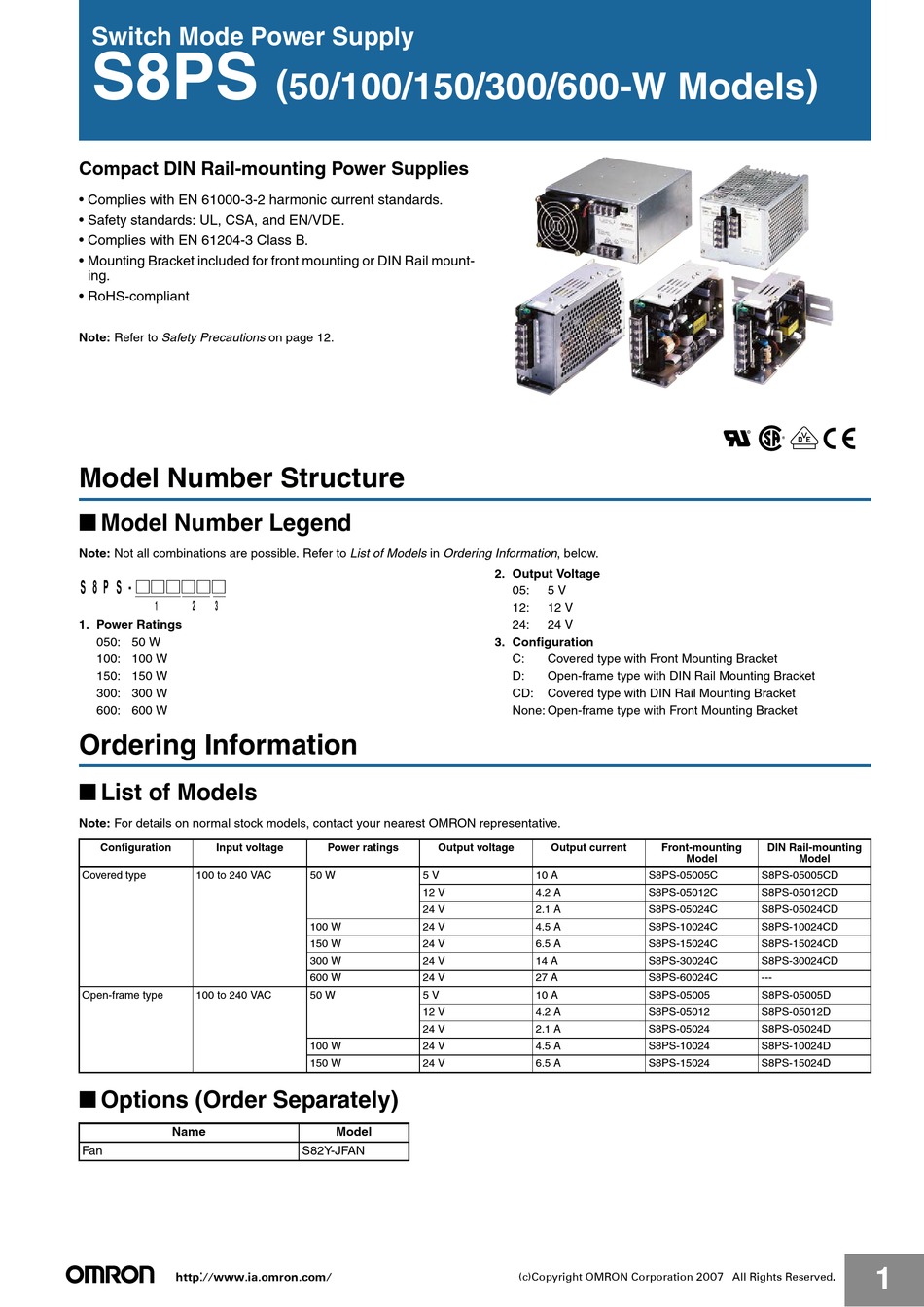

Switch Mode Power Supply
S8PS
Compact DIN Rail-mounting Power Supplies
• Complies with EN 61000-3-2 harmonic current standards.
• Safety standards: UL, CSA, and EN/VDE.
• Complies with EN 61204-3 Class B.
• Mounting Bracket included for front mounting or DIN Rail mount-
ing.
• RoHS-compliant
Note: Refer to Safety Precautions on page 12.
Model Number Structure
■ Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
S8PS-@@@@@@
1
2
3
1. Power Ratings
050: 50 W
100: 100 W
150: 150 W
300: 300 W
600: 600 W
Ordering Information
■ List of Models
Note: For details on normal stock models, contact your nearest OMRON representative.
Configuration
Input voltage
Covered type
100 to 240 VAC
Open-frame type
100 to 240 VAC
■ Options (Order Separately)
Name
Fan
http://www.ia.omron.com/
( 50/100/150/300/600-W Models )
Power ratings
Output voltage
50 W
5 V
12 V
24 V
100 W
24 V
150 W
24 V
300 W
24 V
600 W
24 V
50 W
5 V
12 V
24 V
100 W
24 V
150 W
24 V
Model
S82Y-JFAN
2. Output Voltage
05:
5 V
12:
12 V
24:
24 V
3. Configuration
C:
Covered type with Front Mounting Bracket
D:
Open-frame type with DIN Rail Mounting Bracket
CD:
Covered type with DIN Rail Mounting Bracket
None: Open-frame type with Front Mounting Bracket
Output current
Front-mounting
10 A
S8PS-05005C
4.2 A
S8PS-05012C
2.1 A
S8PS-05024C
4.5 A
S8PS-10024C
6.5 A
S8PS-15024C
14 A
S8PS-30024C
27 A
S8PS-60024C
10 A
S8PS-05005
4.2 A
S8PS-05012
2.1 A
S8PS-05024
4.5 A
S8PS-10024
6.5 A
S8PS-15024
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
DIN Rail-mounting
Model
Model
S8PS-05005CD
S8PS-05012CD
S8PS-05024CD
S8PS-10024CD
S8PS-15024CD
S8PS-30024CD
---
S8PS-05005D
S8PS-05012D
S8PS-05024D
S8PS-10024D
S8PS-15024D
1
