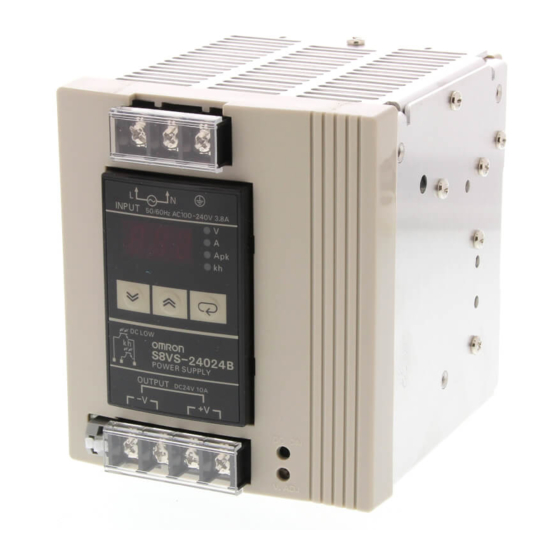

Omron S8VS-24024A -F Series Manual

Switch Mode Power Supply
S8VS
Indication Monitor for
Visualization of Operating Status
For Even Greater Maintenance
Efficiency *
• Status displayed on 3-digit, 7-segment display. *
• Signal output notifications at 90 W or more. *
• Conformity to various safety standards for global
usability.
• Varied coverage with 3-year warranty.
• DIN rail mounting supported.
* Models with indication monitor
Refer to Safety Precautions for All Power Supplies and Safety
!
Precautions on page 32.
Recommended Noise Filter
Noise filter
S8V-NF
For more information, refer to S8V-NF Noise
Filter Data Sheet (Cat. No. T212-E1).
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
S8VS- @@@@@@@@-@
1 2 3 4 5
1. Power Ratings 3. Indication monitor
015: 15 W None: Without indication monitor (standard model)
030: 30 W A:
060: 60 W
090: 90 W B:
120: 120 W BE:
180: 180 W
240: 240 W
4. Alarm output
480: 480 W
None: Sinking (Emitter COM) *
2. Output voltage
P:
(VDC) Note: No alarm output possible with 60-W models.
* Both sinking and sourcing outputs are available for
05: 5 V
480-W models.
12: 12 V
24: 24 V
Note: Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details.
(15/30/60/90/120/180/240/480-W Models)
6
With indication monitor (maintenance forecast
monitor)
With indication monitor (total run time monitor)
With indication monitor but without alarm output
(total run time monitor)
Sourcing (Collector COM)
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
5. UL Class 2 Output Standards (UL 1310)
None: Does not conform. *
S: Conforms.
* 15-W, 30-W, and 60-W models conform to Class 2
output standards (UL 1310).
Note: The S option is available only for 90-W models.
6. Terminal Block Form
None: Screw terminal block
F: Screwless terminal block
1
