Hayman Reese 03274RW Installation Instructions Manual

Hayman Reese 03274RW Installation Instructions Manual

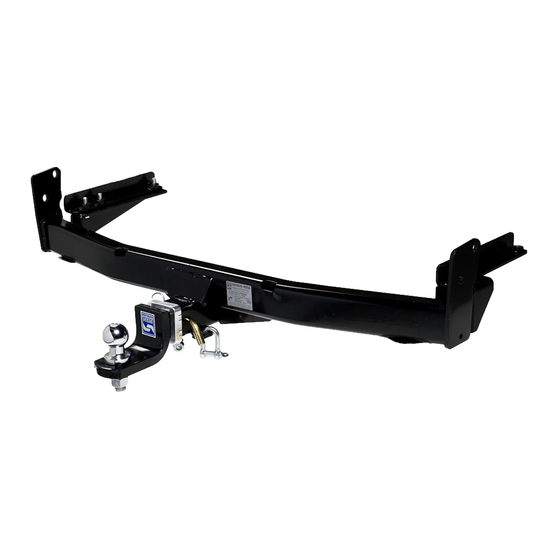

Towbar for volkswagen amarok 2h cl4 ut

Advertisement

Quick Links

XX
PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
B
03274RW
WLE70004
1200 mm
21161
WLL9004
30 Mins.
30 Mins.
60 Mins.
No
Page

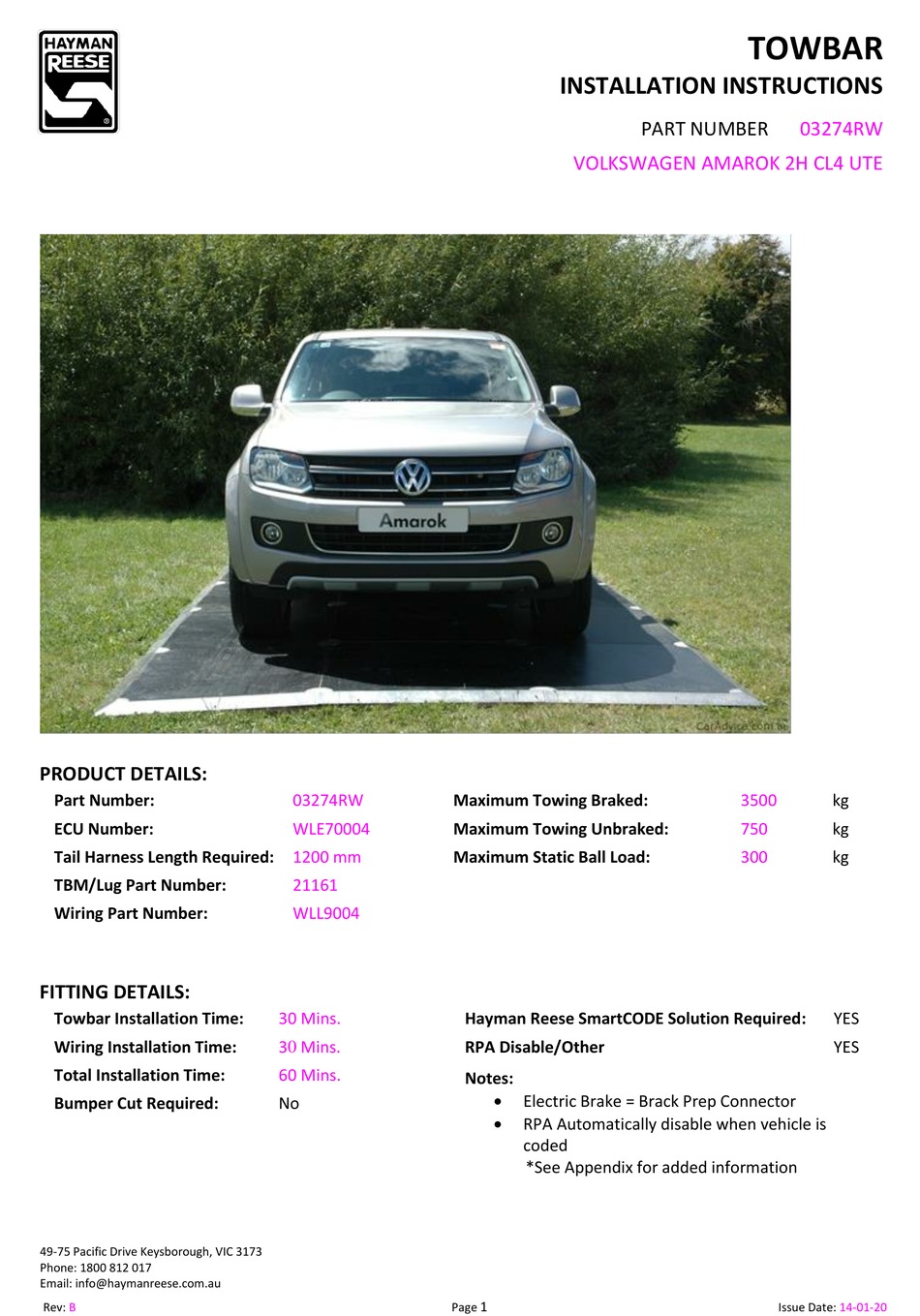

INSTALLATION INSTRUCTIONS
