Hayman Reese 03276RW Installation Instructions Manual

Hayman Reese 03276RW Installation Instructions Manual

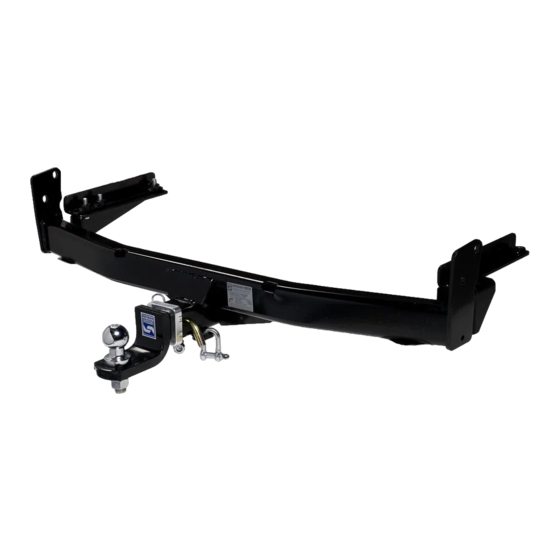

Towbar for ford ranger px3 cl4 cn ute

Advertisement

Quick Links

XX
PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
C
03276RW
Maximum Towing Braked:
WLE70003
Maximum Towing Unbraked:
1800 mm
Maximum Static Ball Load:
21161
WLL90003
60 Mins.
Hayman Reese SmartCODE Solution Required:
15 Mins.
RPA Disable/Other:
75 Mins.
Note:
No
Page
INSTALLATION INSTRUCTIONS

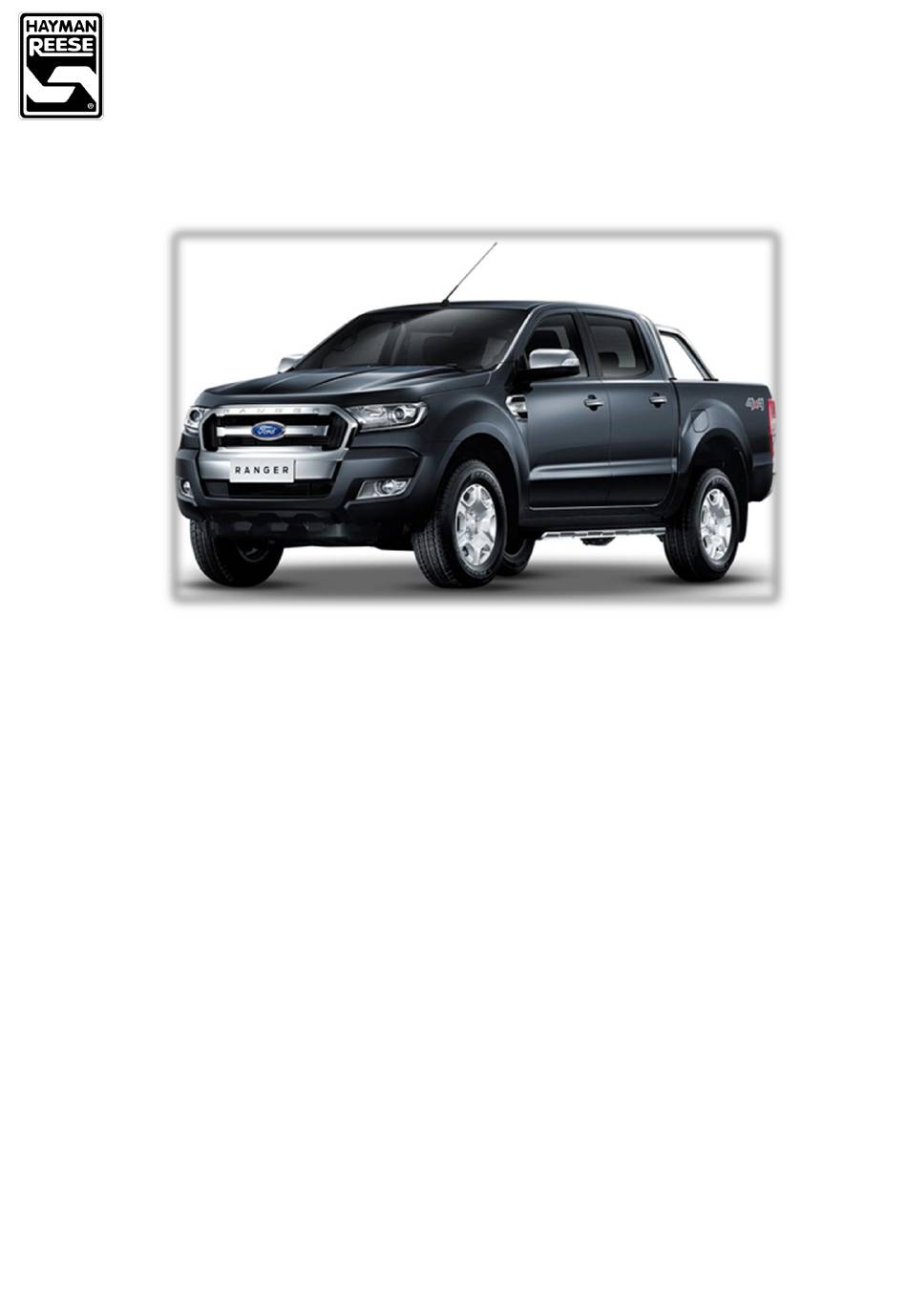

FORD RANGER PX3 CL4 CN UTE
Electric brake wire blue wire taped back to input
harness
• RPA accessary disable when vehicle is coded.
*See Appendix for added information
• All images shown as Tub variants
1
TOWBAR
PART NUMBER
03276RW
3500
750
350
Issue Date:
kg
kg
kg
YES
YES
04-03-2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03276RW and is the answer not in the manual?

Questions and answers

Summary of Contents for Hayman Reese 03276RW

  • Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21161 Wiring Part Number: WLL90003 FITTING DETAILS: Towbar Installation Time: 60 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 15 Mins. RPA Disable/Other: Total Installation Time: 75 Mins. Note: • Electric brake wire blue wire taped back to input...
  • Page 2 1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing.
  • Page 3 SCREW PAN HD M4 X 16 X 0.7P G4.6 NUT PLATE LH T6 NUT NYLON LOCK HEX HD M4X0.7P G8 NUT PLATE RH T6 HAYMAN REESE LOGO STICKER WASHER FT M12 x 37 x 3mm HITCH BOX COLLAR COVER SET SCREW M12 X 40 X 1.75P G8.8 ANTI-RATTLE PULL PIN ASSY GOLD M12x1.75 HEX NUT PC8...
  • Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 1. All vehicles: Disconnect the sensor and light connections. Lower the spare wheel. CAUTION: Be aware of wheel dislodgement when lowering. 2. Complete either Step 2.1 / 2.2 or 2.3 depending on Vehicle application 2.1 For Vehicle with steel bumper...
  • Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 2.2 For Vehicles with Plastic Rear Bumper Remove the bolts from either side of the plastic rear bumper, and remove the plastic bumper from the vehicle. NOTE: Place the bumper step assembly on a safe place to avoid damage.
  • Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 4. Towbar Fitment NOTE: Two persons required to lift towbar up to vehicle. Insert the Nut plate into the passenger side of the Chassis Rail and align with the holes, repeat on the driver side.
  • Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 6. Torque all bolts to recommended specification as per below. Tighten Vertical M12 Bolts x 2 per side first then horizontal bolts. M10 x 1.25 x 35mm: 48 N.m M12 x 1.75 x 40mm: 77 N.m...
  • Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 8. Locate the vehicle CAN, Trailer, Power connectors (1) from underneath the floor carpet (bracket may or may not be present). 9. Connect the vehicle CAN, Trailer, Power connectors (1) to the harness patch mating connectors (2).
  • Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03276RW FORD RANGER PX3 CL4 CN UTE 14. Connect the tail harness (1800mm) 8-way connector (1) to the trailer patch 8-way mating connector (2). 15. Waterproof the trailer patch 8-way connector (1) and the tail harness 8-way male connector (2) using silicone or grease (3).
  • Page 10: Customer Information

    TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following.
  • Page 11 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
  • Page 12 OE functionality as set by OE manufacturer. Please read the vehicles owner’s manual for proper operation and understanding. Coding can be carried out using the Hayman Reese SmartCODE (HRSC) using the following steps. Note, if HRSC is unavailable, vehicle coding can be carried out by OE manufacturer as needed.
