PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03412W
Maximum Towing Braked:
04836
Maximum Towing Unbraked:
1800 mm
Maximum Static Ball Load:
07756
101292-WL
90
Hayman Reese SmartCODE Solution Required:
Mins.
30 Mins.
RPA Disable/Other:
120 Mins.
No
Page
INSTALLATION INSTRUCTIONS
PART NUMBER
1
TOWBAR
03412W

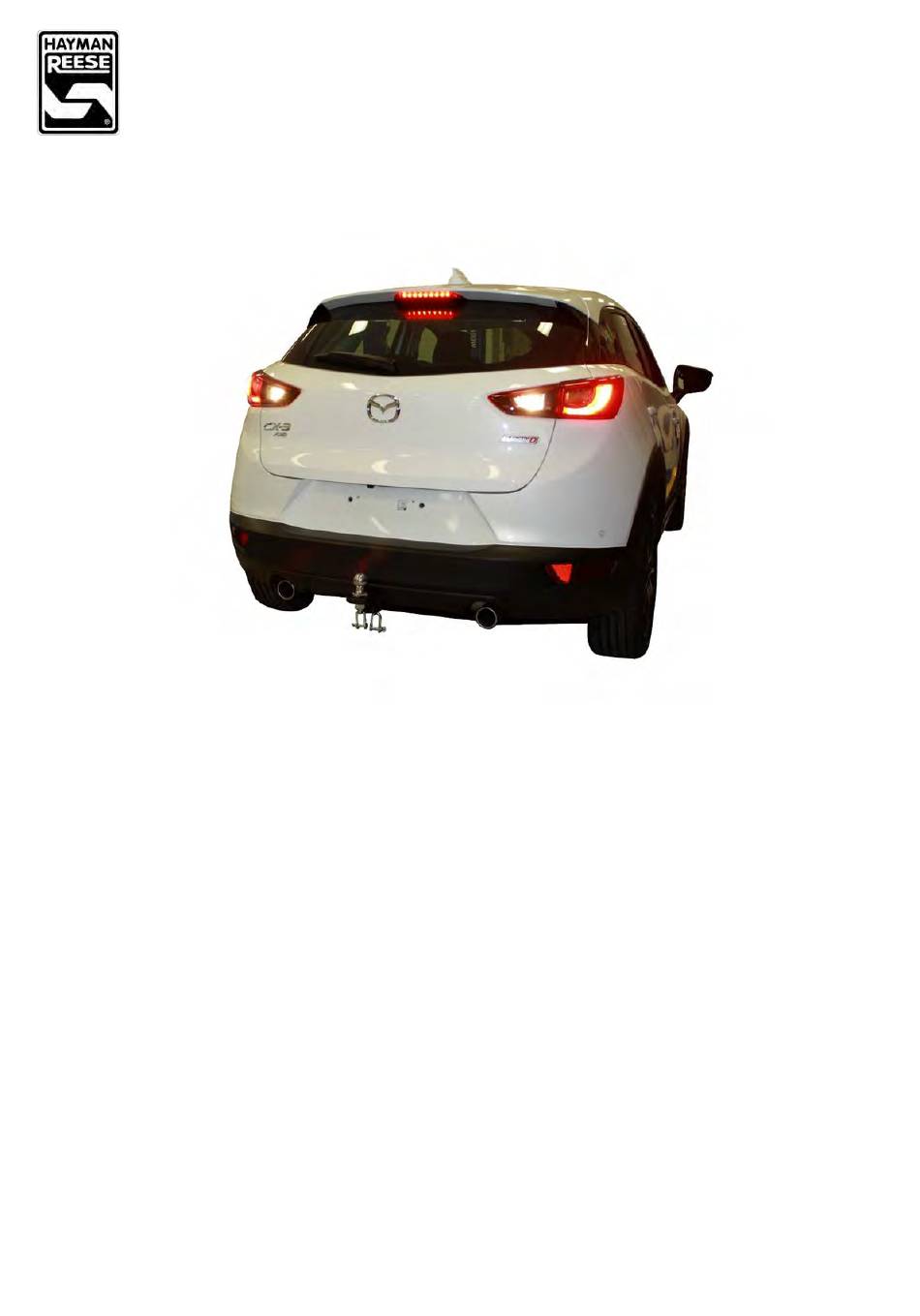

MAZDA CX-3
1200
kg
640
kg
120
kg
NO
NO
Issue Date:
23-11-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03412W
Summary of Contents for Hayman Reese 03412W
- Page 1 1800 mm Maximum Static Ball Load: TBM/Lug Part Number: 07756 Wiring Part Number: 101292-WL FITTING DETAILS: Towbar Installation Time: Hayman Reese SmartCODE Solution Required: Mins. Wiring Installation Time: 30 Mins. RPA Disable/Other: Total Installation Time: 120 Mins. Bumper Cut Required:...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 LH SIDEARM NUT NYLOC HEX HD M4x0.7P RH SIDEARM TOWBALL 50mm LUG ASSEMBLY "D" SHACKLE 10mm BOLT HEX HD M16x45x2.0P HAYMAN REESE LOGO STICKER SPRING WASHER M16x5x3.5 COMPLIANCE LABEL WASHER PLAIN M14x28x3 LOAD RATING LABEL BOLT HEX HD M12x50x1.75P WIRING LOOM NUT HEX HD M12x1.75P...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 1. Release tailgate to expose boot cabin. 2. Remove 4 x Screws on both Passenger and Drivers side. Where 2 x Screws secure the tail light and a further 2 x Screws secure the bumper to the vehicle.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 4. On the underside of the vehicle remove 2 x Screws where the bumper joins with the guard liner. Repeat for Passenger and Driver side. 5. Remove 4 x trim clips on the underside of the bumper.
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 7. On the inside of the guard liner remove 6 x Trim Clips and 2 x Screws. Repeat for Passenger and Driver side. 8. On the underside of the guard moulding remove the male trim clip located above of the centre of the wheel.
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 10. Carefully remove the outer guard moulding. Then remove 1 x trim Clip and 1 x Set Screw securing the bumper to the reinforcement. Repeat for Driver and Passenger side. 11. Carefully remove the bumper by first peeling away at the sides.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 13. Remove and discard the horizontal plastic protector secured with 2 x Trim clips. 14. Slide Sidearm into the chassis rail. Repeat for the other side. 15. Peel off the tape covering the two holes in the chassis rail.
- Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 16. Fit the towbar to the side arms and loosely secure using 3 x M12 x 50 x 1.75P Bolts, 4 x M12 Washers and 1 x M12 x 1.75P Nut Per Side Fit the Lug Assy using 2 x M16 x 45 x 2.0P...
- Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 IMPORTANT Due to possible vehicle variations, always confirm any noted vehicle colour wires with a multi-meter to ensure the correct function is identified before soldering or scotch locking. For vehicle wires denoted with two colours (example;...
- Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 21. On the rear luggage compartment trim (1), remove the two clips (2). 22. Remove the rear luggage compartment trim (1) by pulling in an upwards direction. 23. On the RHS luggage compartment trim (1) remove the clip (2).
- Page 12 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 28. Connect the 6-way connectors (1) from the vehicles tail lamp wiring harness, to the 6-way mating connectors (2) on the Trailer Wiring Harness. 29. Secure the Trailer Wiring Harness ground ring terminal (3) to the vehicle earth point using the existing fastener.
- Page 13 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 32. At the rear exterior of the vehicle, mount the tail harness socket (1) to the towbar mounting bracket using M4 fasteners (not supplied). 33. Route the tail harness (tail length 1200mm) (2) across the LHS and up into the exposed grommet hole (3).
- Page 14 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03412W MAZDA CX-3 37. Test the trailer wiring harness function using a light board or multi-meter. Secure all harnesses using cable ties (not supplied). 38. Re-fit all removed parts and secure all fasteners, ensuring there are no squeaks or rattles.
-
Page 15: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 16 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
