Pro-Ject 6 PerspeX Balanced

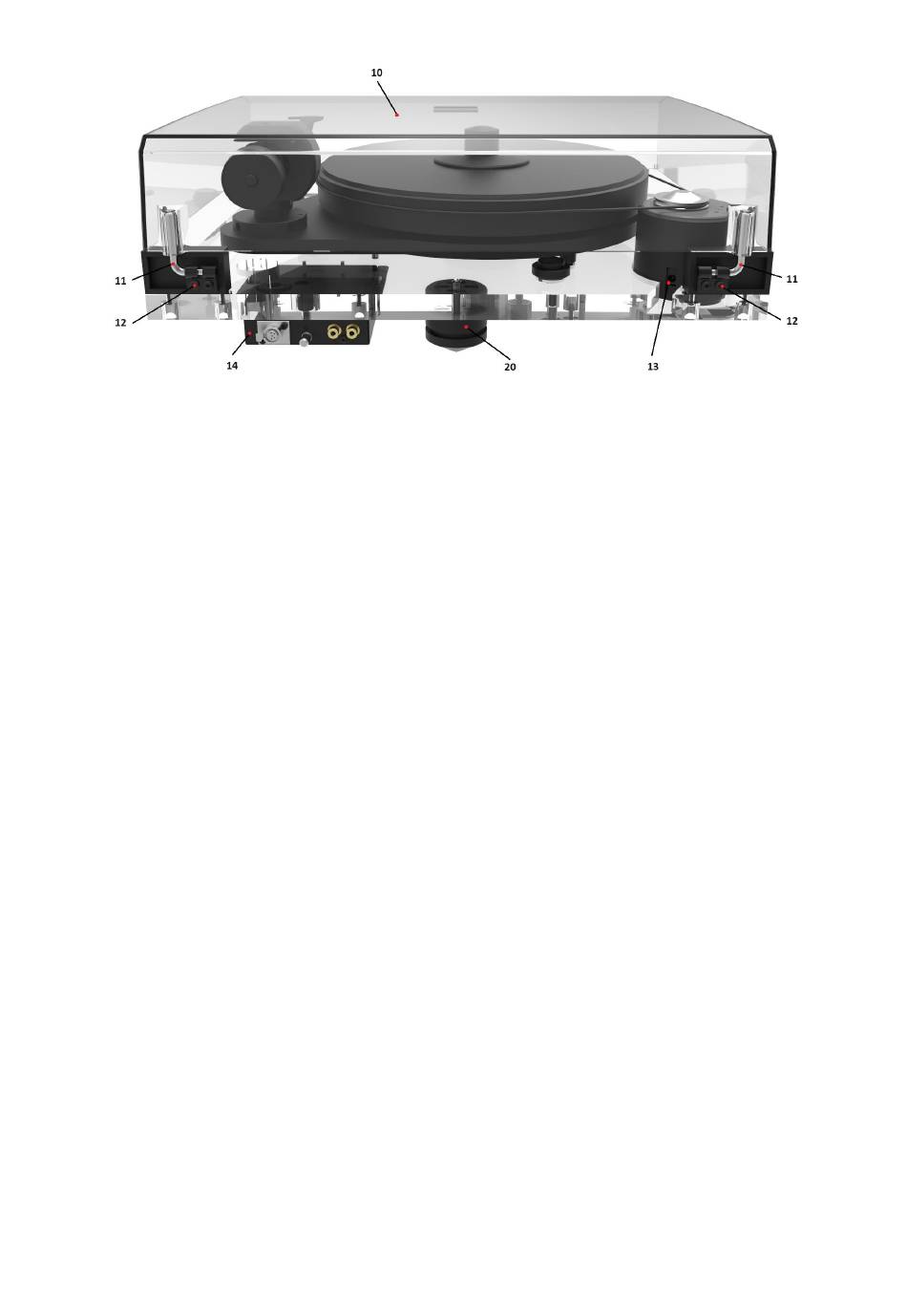

Controls, features, and connections

1 Sub-chassis transport screw
2 Motor pulley
3 Drive belt
4 Speed control button
5 Sandwich platter
6 Tonearm counterweight
7 Tonearm lift lever
8/18 Tonearm rest and removable transport lock
9 Tonearm tube
10 Lid
11 Lid hinges
12 Hinge fasteners
13 Power supply socket
14 Phono output socket with miniXLR, RCA output and earth connection
15 Anti-skating weight adjustment scale
16 Anti-skating weight on wire
17 Anti-skating weight wire support
19 Headshell with finger lift
20 Adjustable tip-toe feet with anti-scratch cups
21 Motor unit
22 Sub-chassis
23 Screw-down record clamp
A, B, C Knurled sub-chassis levelling screws
Connection cable (not shown)
Universal power supply (not shown)
Single adapter (not shown)
Spirit level (not shown)
© Pro-Ject Audio Systems · 6 PerspeX Balanced · Revision 27.05.2024
6a Downforce scale
9a Tonearm base
3
