- Page 1 INSTRUCTIONS FOR USE Pro-Ject Debut III E...
- Page 2 © Audio Trade GmbH · Pro-Ject Debut III E / Ortofon OM 5E · Revision 1.3.08/1.5.08...

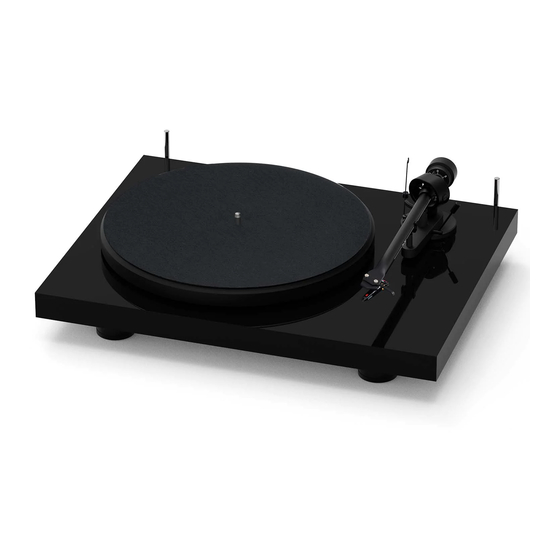

- Page 3 PRO-JECT DEBUT III E Controls, features and connections Motor transportation screw (marked red) Stepped drive pulley Drive belt * Hook * Platter with felt mat * Tonearm counterweight * Downforce scale Tonearm lift lever 8/18 Tonearm rest and removable transport lock Tonearm tube Tonearm base Lid *...
- Page 4 Mains power connection The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug from the power supply to the socket (13) on the rear of the record player before connecting the power supply to the mains.
-
Page 5: Maintenance And Cleaning
Connection to the amplifier The record player has a captive tonearm signal lead (14) for connection to the amplifier. Use the Phono input (sometimes labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge used. - Page 6 Fitting and connecting the cartridge ** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the cartridge to the headshell using the screws supplied with the cartridge by passing one screw through each slot in the headshell (21).
- Page 7 Potential incorrect use and fault conditions PRO-JECT turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common fault symptoms is included.
- Page 8 Accessories 2 motor transport screws (marked red) Tomearm transport look Tonearm counterweight Power supply Platter © Audio Trade GmbH · Pro-Ject Debut III E / Ortofon OM 5E · Revision 1.3.08/1.5.08...
