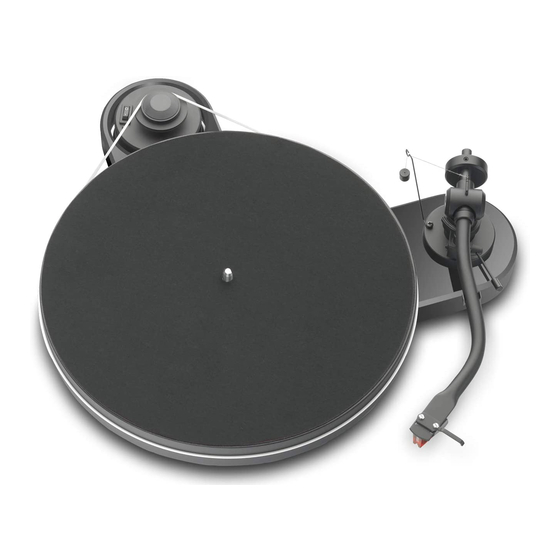

- Page 1 INSTRUCTIONS FOR USE Pro-Ject RPM 1.3 Genie...
-
Page 2: Controls, Features And Connections
Controls, features and connections 1/11 Power switch, motor unit with stepped drive pulley Drive belt * Platter Tonearm counterweight * Tonearm lift lever 6/16 Tonearm rest and removable transport lock Tonearm tube Power supply socket Phono output sockets and earth connection Anti-skating weight * Anti-skating weight support hoop Anti-skating weight adjustment scale... -
Page 3: Cartridge Downforce Adjustment
PRO-JECT RPM 1.3 Genie Dear music lover, thank you for purchasing a PRO-JECT AUDIO record player. In order to achieve maximum performance and reliability with this record player you should study these instructions for use carefully. Warning of a hazard for the user, the unit or possible misuse. Important notice. -
Page 4: Adjusting The Azimuth
Adjusting the azimuth ** The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly. A small screw at the bearing end of the arm allows incorrect azimuth to be corrected if your needle is not mounted exactly perpendicular to the cartridge Screw body (which is often the case). -
Page 5: Changing Replay Speed
Changing replay speed Put the belt (2) over the larger diameter part of the motor pulley (11). To revert to 33 1/3 r.p.m. repeat the proceedings using the smaller step on the pulley. When the Pro-Ject Speed Box ore the Speed Box SE are used speed change between 33 and 45 r.p.m. is electronic. -
Page 6: Warranty
Potential incorrect use and fault conditions PRO-JECT turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common fault symptoms is included. - Page 7 Platter Chassis Motor © Audio Trade GmbH · Pro-Ject RPM 1.3 Genie / Ortofon OM 3E · Revision 4.5.09/15.10.09...
