ExView Application

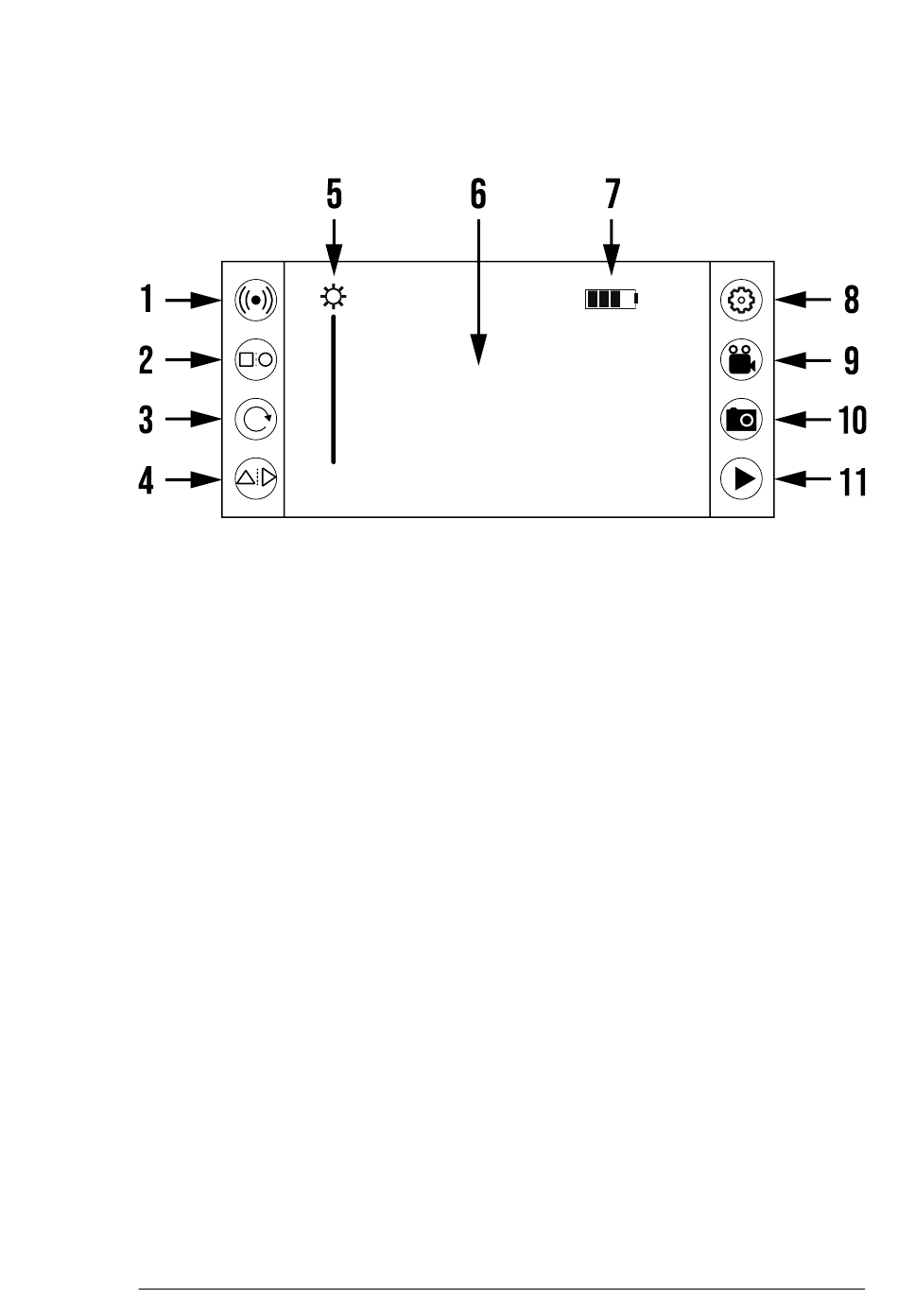

The app screen shot, below, provides a basic overview of the app icons and
features. Refer to the ExView user manual for complete instructions. A link to
the manual is provided in the app Settings menu, or navigate to the FLIR sup-
port site, directly from your web browser, to obtain a copy of the manual.
1. Switch to Bluetooth® mode
2. Select an image from the gallery, for a side-by-side comparison with the
live camera image
3. Rotate the camera image
4. Toggle front and side view camera images
5. Adjust camera light brightness
6. Camera image
7. Borescope battery status
8. Settings menu
9. Start/Stop video recording
10. Capture camera image
11. Open image and video gallery
App Connection Troubleshooting
If the Borescope and app stop communicating, follow the steps below.
1. Switch OFF the Borescope
2. Close the ExView App
3. Switch ON the Borescope
4. Select the BR450W from the list of available Wi-Fi networks
5. Open the ExView app and try again
6. If issues persist, delete the app, completely, from your mobile device, and
reinstall it. After reinstalling, repeat the steps above.
