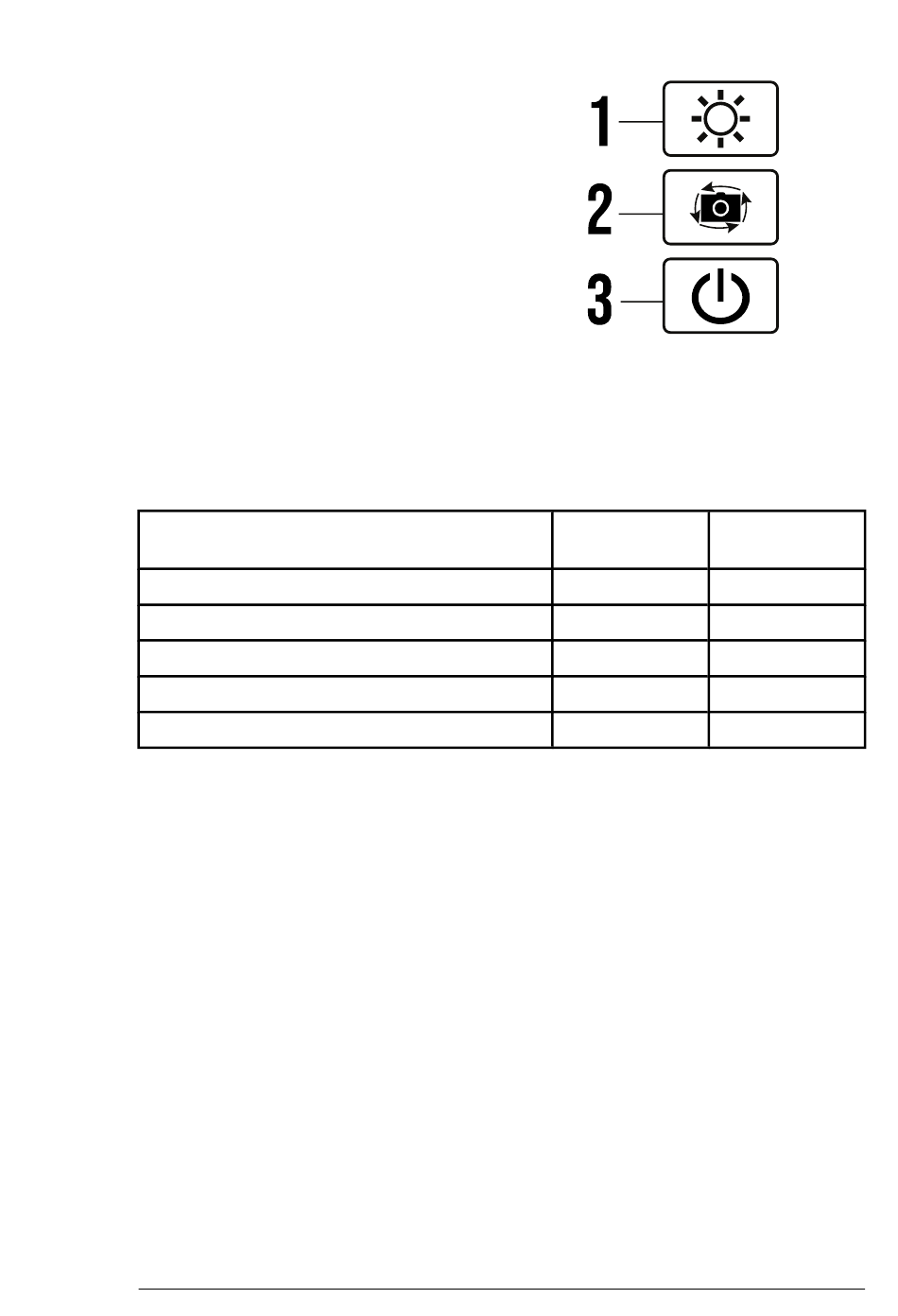

Control Buttons
1. Camera brightness adjustment button.
Short press to step through the five (5)
intensity levels and OFF.
2. Camera select button. Short press to
toggle front and side view camera
images.
3. Power button. Short press to switch
ON the device. Long press to switch
OFF the device. The APO timer
switches the device OFF after five mi-
nutes of inactivity. To adjust the APO
timer, use the Settings menu in the Ex-
View app.
LED Indicators
The two LED indicators, above the control buttons, show Wi-Fi connection
status (on left) and battery status (on right). Refer to the table below for bat-
tery and Wi-Fi status.
Condition
100% charged, not connected to Wi-Fi network
100% charged, connected to Wi-Fi network
Battery charging, not connected to Wi-Fi network
Battery charging, connected to Wi-Fi network
Low battery
Mobile Device Attachment Accessory
The Borescope system includes an accessory for attaching a mobile device
to the control unit. The side of the accessory with the fixed washer, screws in-
to the mounting hole on the Borescope control unit.
The side of the accessory with the moveable washer, attaches to a mobile de-
vice bracket (not supplied). The handle on the accessory allows you to easily
loosen, tighten, and position the accessory. Do not overtighten.
#NAS100203; r. AC/97487/97487; en-US
Wi-Fi LED (left) Battery LED
(right)
Blinking Green Solid Green
Solid Green Solid Green
Blinking Green Solid Red
Solid Green Solid Red
n/a Blinking Red
