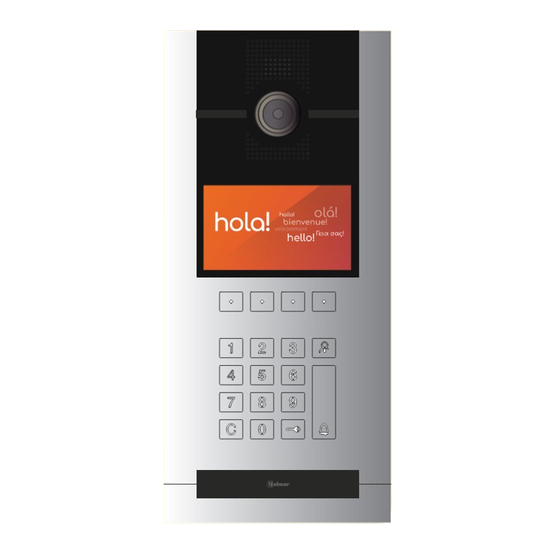

- Page 1 6502/G2+ 12226502 12226512 Marcar o número da habitação ou pulsar para mostrar a agenda 6502/G2+ V01 REV.0123|ENGLISH...
-
Page 2: Table Of Contents
10.7. Video installation in risers with monitors in daisy-chain connection mode ........17 10.8. Single lock release connection ......................18 10.9. Double lock release connection ......................18 10.10. 4 door panels connection ........................19 10.11. Additional analog CCTV camera connection ..................19 Footer Infos www.golmar.es... -
Page 3: Safety Cautions
- Connection terminals Conector RJ-45 Conector Wiegand CCTV and local poweringy termiinals CCTV Electric lock 1 connections N.O. or N.C. contacts Exernal exit pushbutton for the electric lock inputs PL bus connection (*) Tamper alarm contact near to the connection terminals. www.golmar.es... -
Page 4: Initial Configuration
You must finish the configuration process in the same way as if it was a block panel. (*) It is reommended to change the installer code that is mentioned in this manual. www.golmar.es... -
Page 5: Access Control And Lock Settings
You can register a total of 2000 access cards or fobs and assign them as user or administrator cards. In case of existing an addressbook, the user access cards will be assigned to the apartment, being able to register up to 5 cards for each apartment, while the administrator access cards don’t belong to any system address. www.golmar.es... -
Page 6: Manage Access Cards
Show card to be added Card deleted Show the card to be deleted and wait Choose the “Single card” option If the card is already registered, for the confirmation message and press validate. this will be deleted corectly. Footer Infos www.golmar.es... -
Page 7: Additional Settings
Display Display 03:59 03/03/19 Ajustes de la placa Ajustes de la placa Enter time (24h) Enter date (DD/MM/YY) Enter the time through the Enter the date through the numeric keypad. numeric keypad. www.golmar.es Footer Infos... -
Page 8: Video Settings
Choose the special calling methods Choose if you want to enable or disable Choose if you want to enable or disable the direct concierge call pushbutton settings. the villa mode and confirm the election. and confirm the selection. Footer Infos www.golmar.es... -
Page 9: Modify Settings Access Password
If you choose any settings reset, the door panel will show a confirmation screen to avoid accidental settings reset. Confirm the reset in this screen and wait until the panel is operative again. www.golmar.es Footer Infos... -
Page 10: Initial Configuration Through The Web Client
In this moment, the computer is ready to work in the same IP range as the panel IP address. Enter the IP address in the web browser: default IP Access to the Web Client: 192.168.100.101 192.168.100.101 192.168.100.101 Search Search The password to access is 2718. Footer Infos www.golmar.es... -
Page 11: Settings
(s). About Apply Next Previous Go to the previous screen. Apply established settings. Go to the next screen. (*) In villa mode, the door panel makes a call to the address 1 by only pressing the bell icon pushbutton. www.golmar.es... -
Page 12: Name List
To import a .CSV file with the door panel addressbook, this must be saved as “Namelist.csv” and it must have an established format. You can download a sample file or export the existing file, modify it, and then upload it by matching the established format. You can download a generic file in the “Download” section of the product website: https://www.golmar.es/products/6502-g2- plus#product Footer Infos... -
Page 13: Access Cards
Address / Code Time Date Settings llamando a 01001 17:00:45 01/01/2000 llamando a 01056 00:39:49 01/01/2000 Name List Access cards Event log About Previous Next Export Export log events .CSV file. Go to the previous screen. Go to the next screen. www.golmar.es... -
Page 14: About
DIP 8 9 , Monitor address Master connection. Slave 1 DIP 10 Slave 2 End of line resistor Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Cable B+C+D RAP-GTWIN/HF 2x1mm 96m15m 130m 230 Vac FA-G2+ BUS(M) BUS(PL) To the BUS... -
Page 15: Daisy-Chain Audio Installation
Slave 3 End of line resistor Slave 3 Slave 2 End of line resistor Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN GOLMAR S.A. C/ Silici, 13. 08940-SPAIN GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Cable 230 Vac RAP-GTWIN/HF 2x1mm FA-G2+... -
Page 16: Distributed Mixed Installation
DIP SWITCH 10: Telephones’ End Of EMD OF LINE ON D2L-G2+ Line Resistor. 9 10 12258950 DISTRIBUIDOR D2L-G2+ GOLMAR S.A D2L-G2+ C/Silici, 13 08940-SPAIN To the previous Back side of distributor UID: mn vx8 d 8 u skp v the ART 7W/G2+ BUS connector. -
Page 17: Video Installation In Risers With Distributors
230 Vac To the BUS connectors of the monitors. FA-G2+ BUS (M) BUS (PL) To the BUS D4L-G2+ BUS(M) BUS(PL) GOLMAR S.A C/Silici, 13 connector of 08940-SPAIN DISTRIBUIDOR D4L-G2+ 12258940A the rst D4L-G2+ distributor. GOLMAR S.A To the BUS (M) -
Page 18: Single Lock Release Connection
Maximum door lock release 12 Vcc/270mA. Two opener with AC Al conector BUS (PL) de FA-G2+. 230 Vac ~ ~ ~ ~ Place the varistor that comes with the module TF-104 directly over the door lock connectors. www.golmar.es Footer Infos... -
Page 19: Door Panels Connection
230 Vac FA-G2+ BUS(M) BUS(PL) To the BUS BUS (M) BUS (PL) connector of the rst Cable distributor. RAP-GTWIN/HF 2x1mm To the BUS connector of the FA-G2+. To the BUS (PL) connector of the FA-G2+. Shield. Video. www.golmar.es Footer Infos... - Page 20 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Telf: +34 934 800 696 www.golmar.es Vertrieb DACH: Elektrohandel Eisterer www.tuersprechanlagen.at Golmar reserves the right to make any changes without prior notice.
