golmar Art 4/G2+ User Manual

Monitor, hands-free, 2-wire installation
Hide thumbs Also See for Art 4/G2+:
Table of Contents

Advertisement

Quick Links

TECHNOLOGY

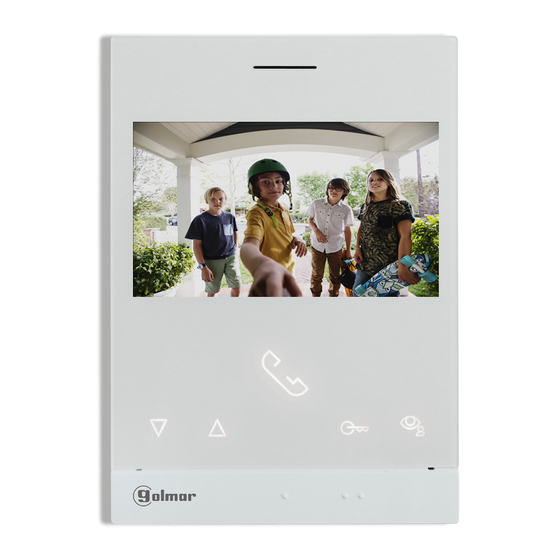

Art 4/G2+ monitor
Hands-free
2-wire installation
Code 50122527
TART
4
G2+ EN
REV.0 19
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Art 4/G2+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar Art 4/G2+

Summary of Contents for golmar Art 4/G2+

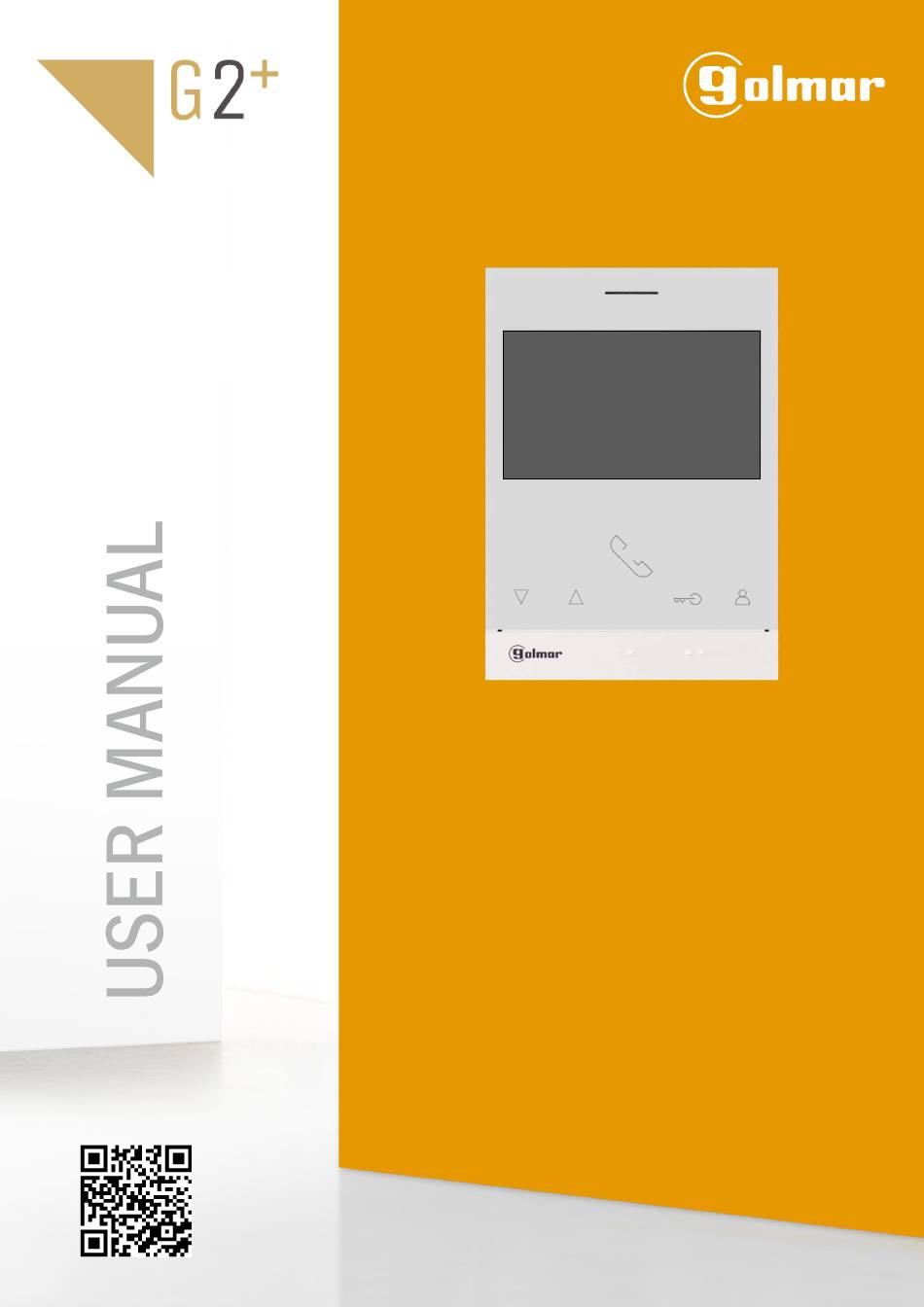

  • Page 1 TECHNOLOGY Art 4/G2+ monitor Hands-free 2-wire installation Code 50122527 TART G2+ EN REV.0 19...

  • Page 2: Table Of Contents

    Recordings menu ..........................19 to 21 Special codes ..............................22 to 23 Cleaning the monitor ..............................24 Notes ..................................25 RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. Always disconnect the power supply before making modifications to the device.

  • Page 3: Description

    ART 4/G2+MONITOR DESCRIPTION MADE IN CHINA DIP 1 to 5 Monitor address DIP 6,7 00 - Master 10 - Slave 1 01 - Slave 2 11 - Slave 3 DIP 8 EOL resistor OFF = 0 ON = 1 A. Speaker.

  • Page 4: Installation

    ART 4/G2+MONITOR INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector.

  • Page 5: Main Menu

    ART 4/G2+MONITOR MAIN MENU 20-09-2017 09:27 If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button located just below the corresponding icon. The device will return to standby mode after 10 seconds without activity.

  • Page 6: Settings Menu

    ART 4/G2+MONITOR SETTINGS MENU 20-09-2017 09:27 Returning to the main menu: Press the button below icon to return to the main menu. Setting the monitor's date and time, as well as the presentation format: Press the button below icon to access the settings screen. Go to the option to be modified by pressing the buttons below...
  • Page 7 ART 4/G2+MONITOR Continued from previous page. SETTINGS MENU Select the field to be modified by pressing the buttons below corresponding icons , then press the buttons below corresponding icons to adjust the value/format. Validate the changes made by pressing the button below icon .
  • Page 8 ART 4/G2+MONITOR SETTINGS MENU Automatic deletion of images/videos, internal memory and MicroSD card: Press the button below icon to access the selection screen. In some countries, the law does not permit the storage of images or videos for more than 30 days after recording. The automatic deletion function performs this task for you.
  • Page 9 ART 4/G2+MONITOR Continued from previous page. SETTINGS MENU If you have inserted a MicroSD card into the monitor, you can delete the still images videos recorded on the MicroSD card. The monitor has the option to format the MicroSD card.

  • Page 10: Settings Screen ('Do Not Disturb' / 'Automatic Door Opening' And 'Enable/Disable Intercom')

    ART 4/G2+MONITOR SETTINGS SCREEN: 'Do not disturb' / 'Automatic door opening' and 'Enable intercom'. 'Do not disturb' / 'Automatic door opening' and 'Enable/disable intercom' settings: Access the main menu as described on p. 5. Then press the button below icon for 3 seconds to access the settings screen and select the option to be modified.

  • Page 11: 'Recording Mode' Settings Screen

    ART 4/G2+MONITOR Continued from previous page. 'RECORDING MODE' SETTINGS SCREEN Recording mode settings: Access the recordings menu as described on p. 5. Then press the button below icon to access the settings screen. Press the buttons below icons to select image recording mode during call reception: no recording...

  • Page 12: Door Panel Call Screen

    ART 4/G2+MONITOR DOOR PANEL CALL SCREEN 0 -0 -2 1 7 019 11:17:10 This screen is displayed when receiving a call or pressing the button below icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed (door panel 1, door panel 2, camera 1 or camera 2).

  • Page 13: Communication Screen

    ART 4/G2+MONITOR COMMUNICATION SCREEN 0 -0 -2 1 7 019 11:17:10 This screen is displayed during a communication process. In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed (door panel 1, door panel 2, camera 1 or camera 2).

  • Page 14: Image And Communication Settings

    ART 4/G2+MONITOR IMAGE AND COMMUNICATION SETTINGS During a call/communication process, press the button below icon for 3 seconds to access the image and monitor in communication volume settings menu. 0 -0 -2 1 7 019 11:17:10 Press for 3 seconds The following brightness control menu will then be displayed.
  • Page 15 ART 4/G2+MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following contrast control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons . To access the colour control, press the button below icon .
  • Page 16 ART 4/G2+MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following monitor communication volume control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons . To return to the brightness control (carousel mode), press the button...

  • Page 17: Intercom Menu

    ART 4/G2+MONITOR INTERCOM MENU Access the intercom menu as described on p. 5. From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monitor(s) of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p.
  • Page 18 ART 4/G2+MONITOR Continued from previous page. INTERCOM MENU To make an external intercom call (to other apartments), go to the option with icon by pressing the buttons below corresponding icons and press the button below icon to access the code selection menu of the apartment with which you wish to communicate.

  • Page 19: Recordings Menu

    ART 4/G2+MONITOR RECORDINGS MENU Access the recordings menu as described on p. 5. This menu displays the list of images saved in the memory of the device. If a MicroSD card is inserted in the monitor, images/videos will be recorded on the MicroSD card. Press the button below icon to access the list of videos saved on the MicroSD card.
  • Page 20 ART 4/G2+MONITOR Continued from previous page. RECORDINGS MENU If a MicroSD card is inserted in the monitor, press the button below icon to access the list of videos. In the list of recorded videos, those that have not been viewed are highlighted in white. There are 10 recordings per page and the number of pages is shown in the bottom right of the screen.
  • Page 21 ART 4/G2+MONITOR Continued from previous page. RECORDINGS MENU To return to the recordings menu, press the button below icon . Then, to return to the main menu, press the button below icon Recordings menu 0 -0 -2 9 7 019...

  • Page 22: Special Codes

    ART 4/G2+MONITOR SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 23 ART 4/G2+MONITOR Continued from previous page. SPECIAL CODES Video sources available on a monitor. Visible Not visible Factory setting Door panel 1 Door panel 2 Camera 1 Camera 2 Automatic door opening upon reception of a call on a monitor.

  • Page 24: Cleaning The Monitor

    ART 4/G2+MONITOR CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the monitor in the same direction, from top to bottom.

  • Page 25: Notes

    ART 4/G2+MONITOR NOTES...
  • Page 26 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
