REALTRUCK TRUXEDO LO PRO Installation Sheet

2024-2025 ford ranger soft roll-up
Hide thumbs Also See for TRUXEDO LO PRO:

Advertisement

NOTE: It is important that all areas where the bed cover
mounts are clean and free of debris prior to installing.

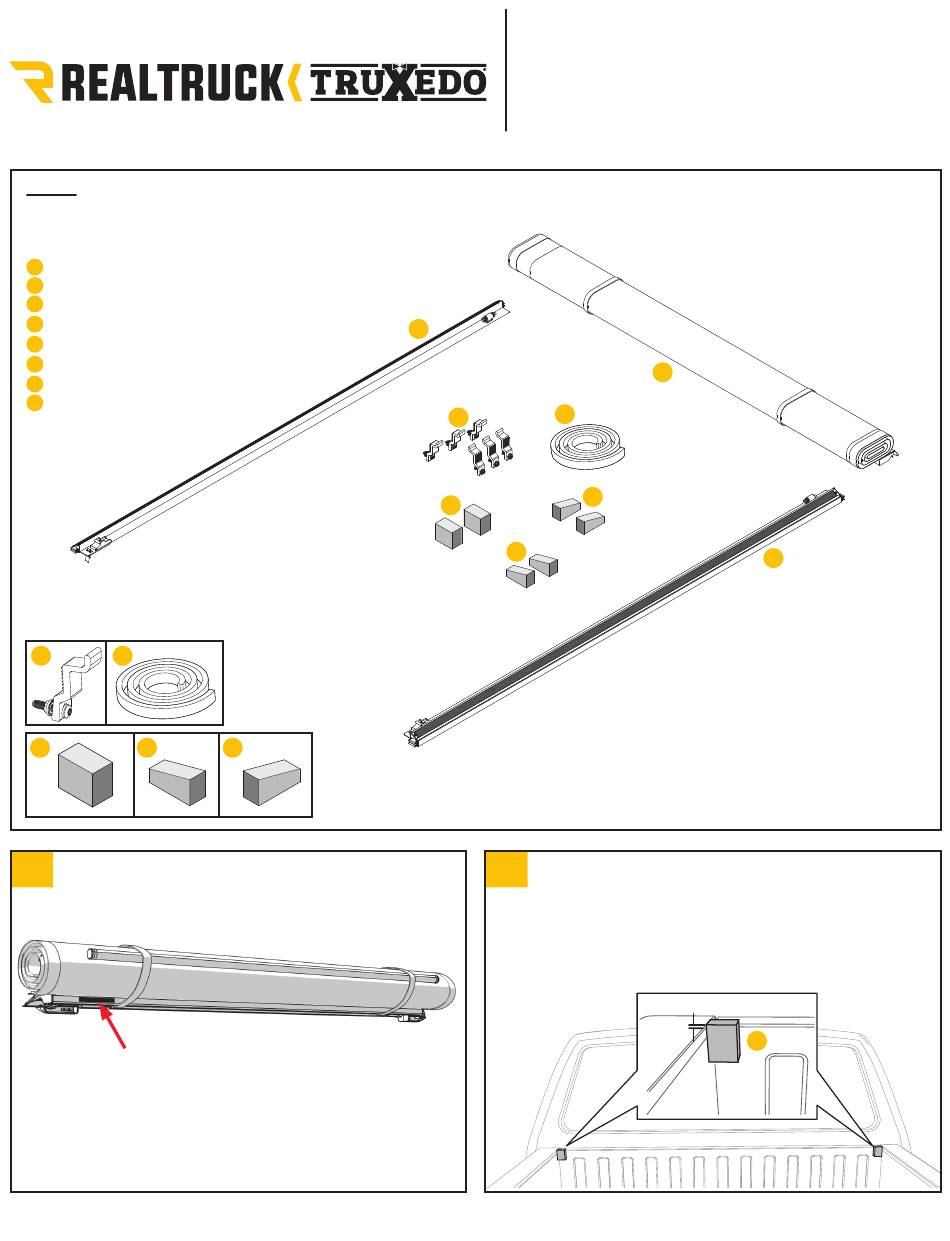

PARTS INCLUDED IN YOUR KIT:
1x Driver side rail
A
1x Passenger side rail
B
C
1x Cover assembly
6x clamps
D
1x Bulkhead seal (on select make/models)
E
2x Front corner seals
F
2x End plug seals
G
2x End plug seals
H
D
E
F
G
1
The serial number for the cover is located here.
For future reference, write it here:
_____________________________________________
RealTruck Truxedo • 2209 Kellen Gross Dr., Yankton SD 57078 • 877-878-9336 ©RealTruck Group, Inc., 2024
H
2024-2025 FORD RANGER
LO PRO SOFT ROLL-UP
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 877-878-9336, Mon - Fri, 8:00 a.m. - 5:00 p.m. CT
A
E
D
H
F
G
2
Install corner seal (G) included with cover (A) by
cleaning the front of the bulkhead with soap and water to
remove dirt and debris. Clean the area with isopropyl alcohol to
remove wax or grease and to evaporate any remaining water.
Allow the surface to dry. Peel the white paper backing and
adhere the seal to front corners as shown. Apply pressure
evenly to the entire seal to ensure proper adhesion.
C
B
TOOLS REQUIRED
Flat head screwdriver
T-30 Drive socket or T-Handle wrench
Isopropyl alcohol
TOOLS RECOMMENDED
Spring clamps
Scissors/utility knife
1/8"
G
P/N 1119027 Rev. B Rev. 11-27-24
