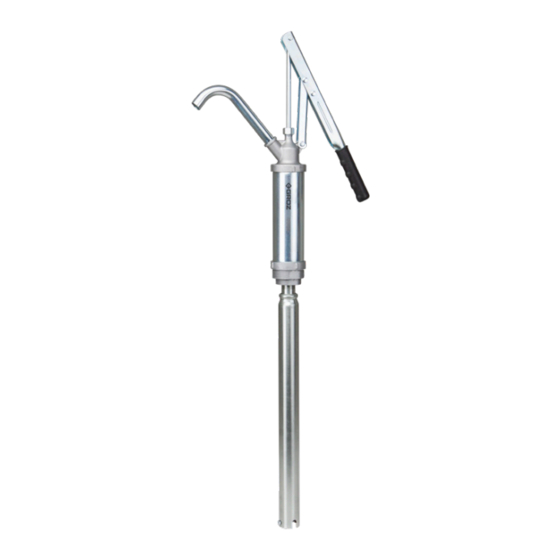

Lever Action
Oil Pump
Value engineered for
optimal performance
at an affordable cost
Built-in 1-1/2" & 2" bung
for use on drums with
either openings
Nitrile rubber piston
rings for smooth
operation
Complete with
curved metal spout &
telescopic PVC / Steel
suction tube for use
on 50-205 litre
(15-55 gallon) barrels
DELIVERS
UPTO
300 ML (10 OZ.) /
STROKE
SPECIFICATIONS
MODEL
Fits
Delivery Rate
Recommended Use
Do Not Use
Wetted Components
Suction Tube Material
Suction Tube Length
Discharge
Spout
Aluminium
Die Cast Head
1-1/2"
Bung Nut
EBP-03
EBP-02
50-205 litre (15-55 gallon) barrels
Upto 300 ml (10 oz. ) / stroke
Oil Based Fluids, Heating Oils, Motor Oils, Heavy & Light Oils, Diesel & Kerosene
Water Based Fluids, Solvents, Acids, Antifreeze, Gasoline etc.
Steel, Aluminum, PVC & NBR
PVC
18" to 34-1/2" (460 to 875 mm)
INSTRUCTION MANUAL
S1055, REV C
EBP-02
EBP-03
Aluminum, Steel & NBR
Steel
18-1/2" to 34-1/2" (475 to 875 mm)
EBP-02
EBP-03
Lever
Handle
Barrel
2" Bung
Nut
Telescopic
Suction Tube
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Groz EBP-02
Summary of Contents for Groz EBP-02
- Page 1 INSTRUCTION MANUAL S1055, REV C Lever Action EBP-02 Oil Pump EBP-03 Value engineered for optimal performance at an affordable cost Built-in 1-1/2" & 2" bung for use on drums with Discharge either openings Spout Lever Handle Nitrile rubber piston rings for smooth...
- Page 2 SAFETY INFORMATION 2. Screw the bend pipe (28) onto the pump head. • Keep the work area clean and dry. Damp or Tighten securely to eliminate any possibility of wet work areas can result in injury. leakage. • When not in use, tools and equipment should 3.
- Page 3 EXPLODED VIEW PARTS LIST REF NO. PARTS DESCRIPTION QUANTITY REF NO. PARTS DESCRIPTION QUANTITY M5 Bolt Barrel Plunger Rod Rivet Cap Nut Steel Washer O-Ring (Upper) Steel Washer O-Ring (Lower) Paper Washer Plastic Cap Bung Nut Plastic Washer Rivet Taper Spring U-Clip Steel Washer Grip...
- Page 4 Groz makes all efforts to ensure that its products meet the highest standards of quality and durability and warrants to the original purchaser its range of products for a period of 12 months from Groz Invoice date, against defects in materials and workmanship. If the Groz product is part of a set, only the portion that is defective is subject to this warranty.
