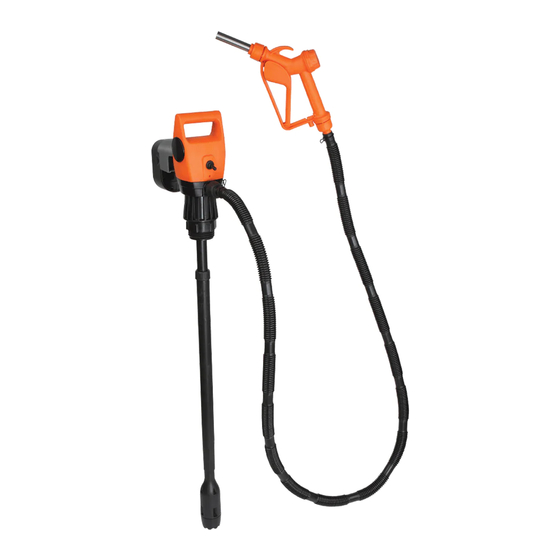

Electric
Drum Pump
Electric drum pump designed for
pumping fuels, water based media, light
oils, DEF & select chemicals from metal
drums of 55 gallon (205 litre or 275-330
gallon (1000-1250 litre) IBC's
Compact & lightweight construction
Convenient ON/OFF Switch with LED
Indicator
Built-in fuse for overload protection
Silenced motor makes almost no noise
Stainless steel filter built into the suction
tube inlet prevents contaminants from
getting in & causing damage
Built-in 2" bung adaptor fits directly onto
metal drums of 55 gallon (205 litre). Bung
adapter can be adjusted by 0.6" (15 mm)
to adjust to drums with varying heights.
Includes an additional bung thread
converter for converting 2" standard bung
threads to 2.5" X 5 mm buttress for using
pump with IBC's
Telescopic suction tube extends from 33-
1/2" (850 mm) to 49" (1245 mm) for use
with 55 gallon (205 litre) drums or 275-
330 gallon (1000-1250 litre) IBC's
Supplied complete with 2m (6.6') hose &
manual dispensing nozzle with 3/4" (19
mm) OD Stainless Steel Spout
Duty Cycle: 15 minutes On /
15 Minutes Off
WETTED COMPONENTS
Viton, POM, Stainless Steel, PE, NBR, PP
RECOMMENDED USE
Diesel, Kerosene, Bio Diesel, DEF/
Adblue, Water based media, Antifreeze,
Detergents, Pesticides Herbicides, Urea,
Light oils with viscosity upto 100 cst
DO NOT USE WITH
Gasoline, Corrosive chemicals, Lacquer
thinners, any material that is not
compatible with the pump construction
FEATURES
DELIVERS
UPTO
28 LPM
(7.4 GPM)
FLUIDS
DIESEL
KEROSENE
www.groz-tools.com

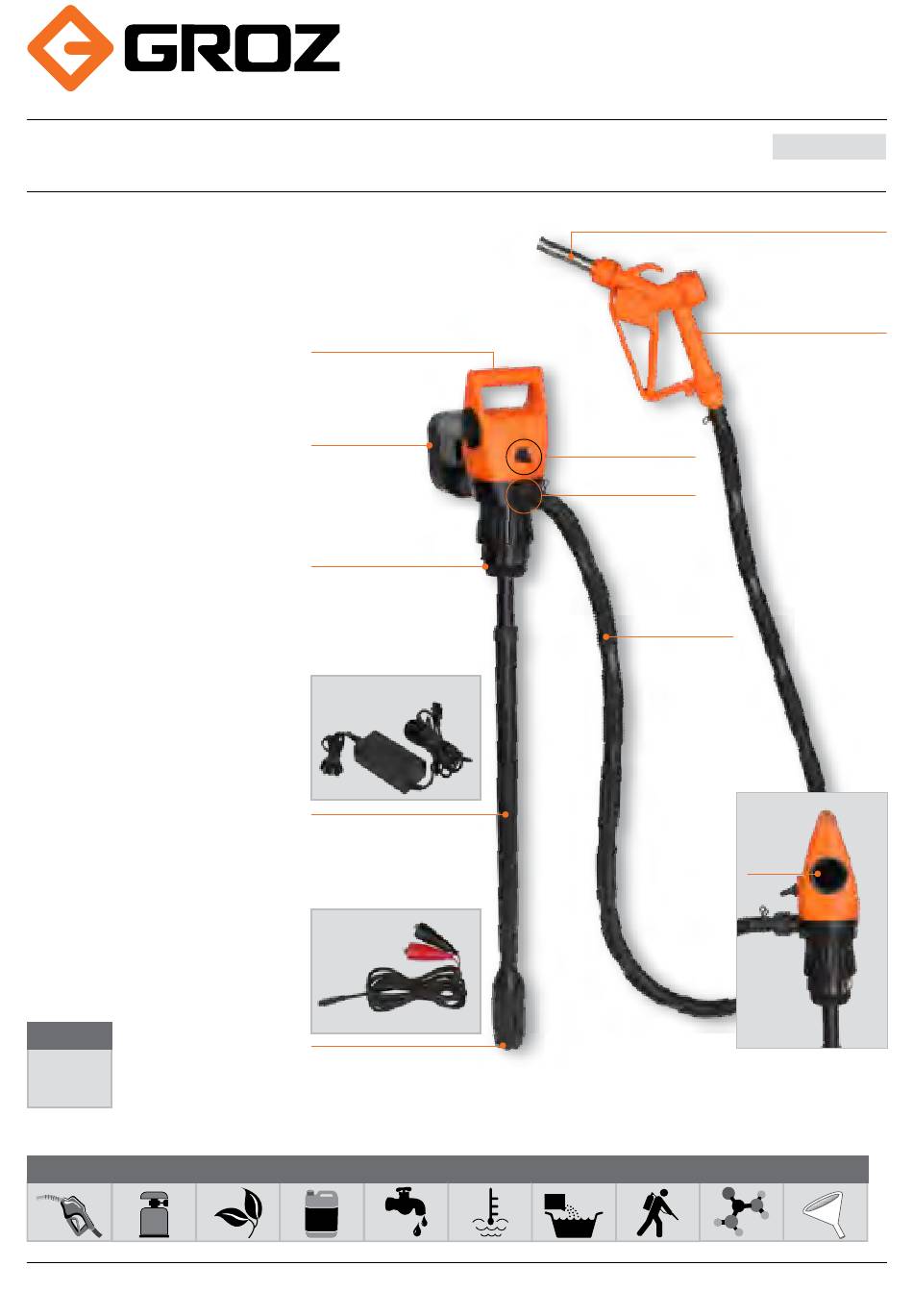

Lift Handle
19.2V, 1.5Ah
Ni Cd/18.5V, 1.3Ah
Li-Ion Battery
Thread Converter
(with 2.5" X 5 mm
Buttress Threads)
100V-240V, 50/60 Hz
AC Dual Voltage
Power Adaptor
Telescopic
Suction
Tube
12V DC
Battery Cable
SS Strainer
DEF / ADBLUE
BIO DIESEL
WATER
ANTIFREEZE
DETERGENTS
INSTRUCTION MANUAL
On/Off Switch
Pump outlet
with swivel
connection
Flexible
Corrugated Hose
2m (6.6') long
Nozzle
Holster
PESTICIDES
UREA
HERBICIDES
info@groz-tools.com
S2180, REV C
EDR-55
3/4" (19mm)
SS Spout
Manual
Dispensing
Nozzle
LIGHT OIL
