INSTRUCTION MANUAL

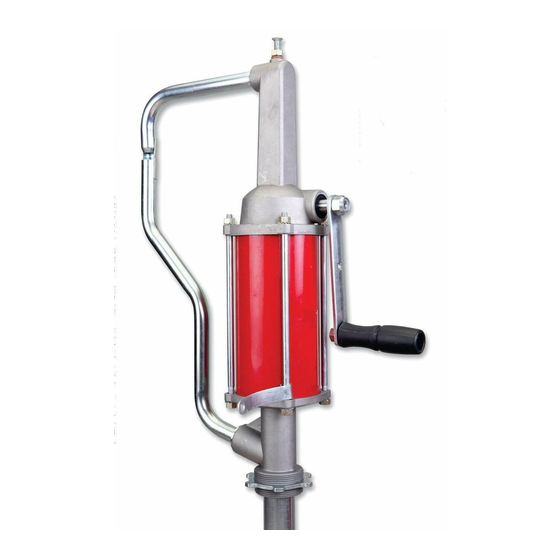

Quart / Litre Stroke Pump
QSP-01
Congratulations on purchase of this World Class Quart / Litre Stroke Pump!
• Heavy duty industrial pump to dispense 1 Quart or 1 Litre
of media per stroke, making it economical and suitable for
metered delivery.
• A precision Rack and Pinion mechanism.
• Adjustment screw for easy calibration between quart and
litre measurement
• Built in 2" Bung Adaptor to fit most of the drum sizes.
• Complete with a telescopic suction tube for use with 15-55
gallons (50-205 litre) barrels
• Spring Loaded Drain Back Tube for overflown media
• Lockable handle which allows the pump to be pad locked,
when not in use
• Lock Nut for positioning the pump outlet in any direction

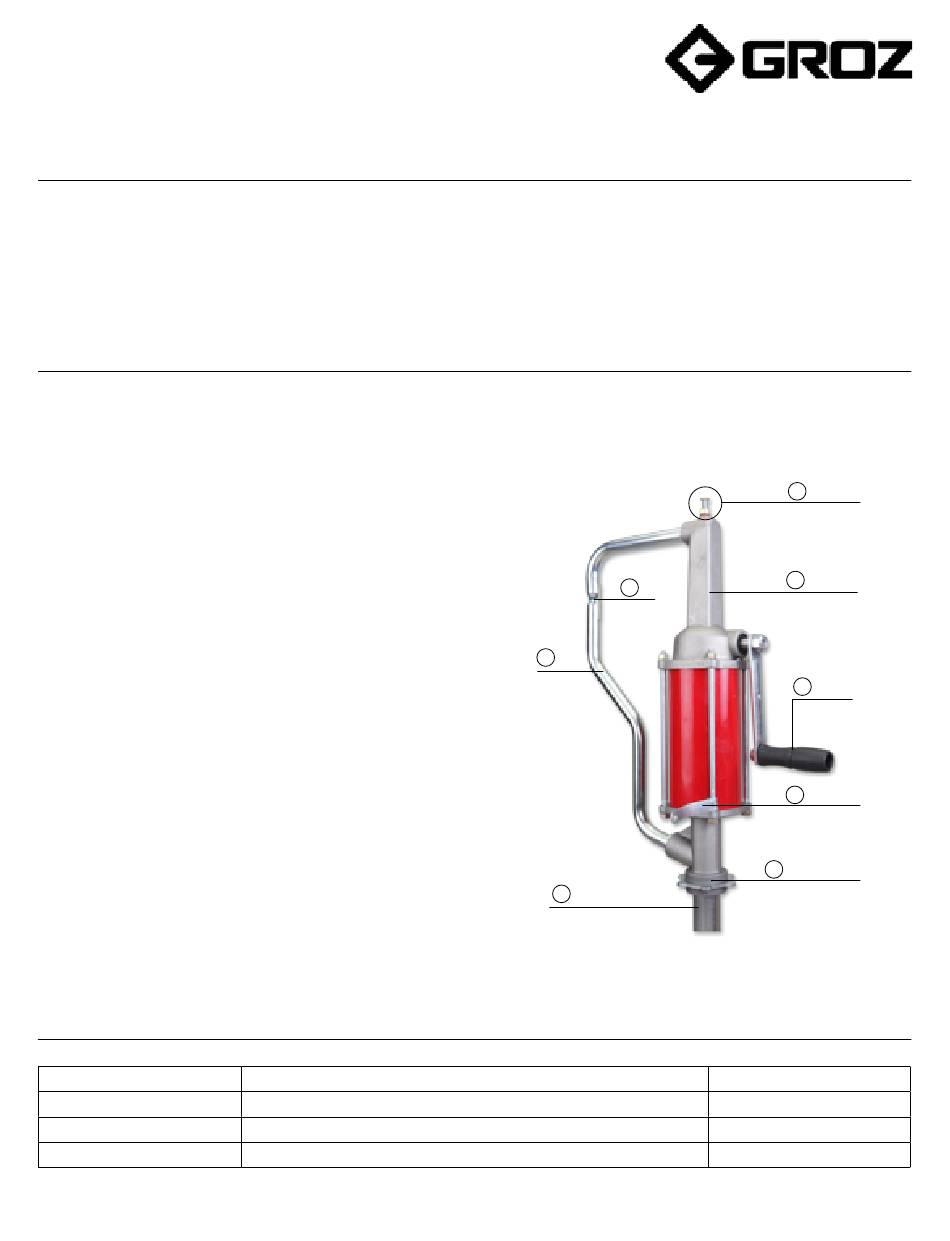

PART DESCRIPTION
REFERENCE NUMBER
1
2
3
1
DESCRIPTION
Pump body (Including components 4, 5, 6, 7, 8)
Telescopic suction tube
Handle Assembly
8
Pump
Outlet
5
Spring
Loaded
Drain
Back
Tube
2
Telescopic Suction Tube
S1520, Rev A
4
Quart / Litre
Adjusment
Screw
1
Pump Body
3
Handle
Assembly
6
Latch for Pad
Locking
7
2" Bung Adaptor
with Lock Nut
QUANTITY
1
1
1
