INSTRUCTION MANUAL
Electric Diesel Pump
EDP/12, EDP/24
Congratulations on purchase of this World Class Electric Diesel Pump !
• Portable Diesel transfer pumps designed for everyday
use in Agricultural, Construction, Automotive &
Industrial applications
• Lightweight, yet strong non corroding Aluminum Die
Cast Construction
• Self priming Vane pump design
• Duty Cycle: 30 Minutes On / 30 Minutes Off
• Available in a choice of 12V or 24V in two styles:
1. Base Plate Style
2. Drum Mount Style
• Delivery nozzle comes in a choice of Manual / Automatic

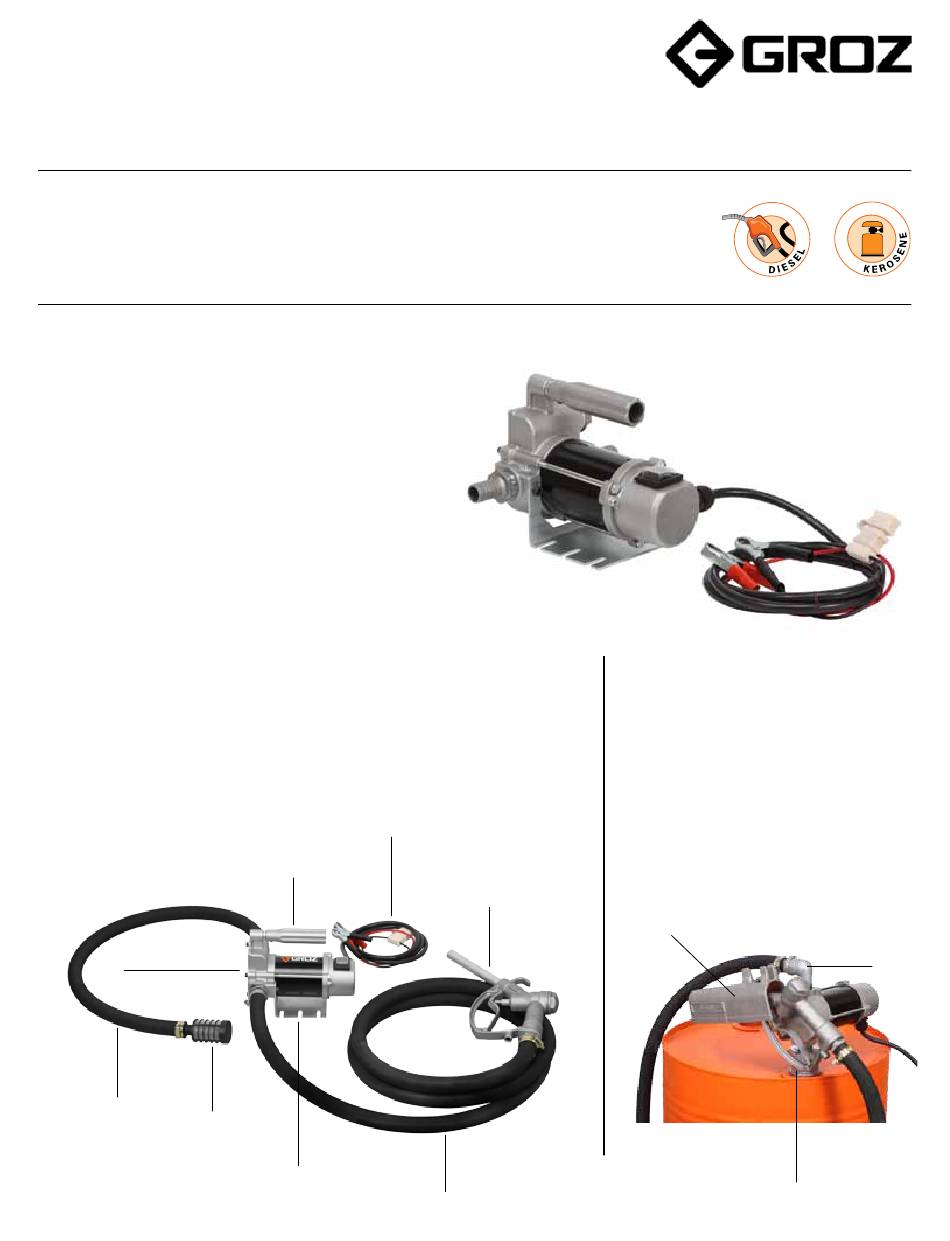

BASE PLATE STYLE
• Includes Pump with Base Plate, Lift Handle, Strainer, 2m long Battery
Cable with fuse & clamps. Aluminum Nozzle
• Pump inlet & outlet threaded ¾" (F)
• Supplied complete with 4m x ¾" ID hose that can be cut into two parts
for use as a suction & delivery hose
• Hardware supplied includes 3 hose barbs (3/4") & 4 hose clamps
Pump
Suction
Hose
Strainer
Battery Cable with
Fuse & Clamps
Lift Handle
Base
Plate
Delivery
Hose
1
DRUM MOUNT STYLE
• Includes Pump with 2" Bung, Elbow
Fitting, 2 pc threaded steel Suction tube
& Nozzle Holder, 2m long Battery Cable
with fuse & clamps. Aluminum Nozzle
• Pump Inlet threaded 1"(F) & outlet
threaded ¾" (F)
• Supplied complete with 3m x ¾" ID
delivery hose
• Hardware supplied includes 2 hose
barbs (3/4") & 2 hose clamps
Aluminum
Nozzle
Nozzle
Holder
S1940, Rev C
Elbow
Fitting
Bung &
Suction Tube
