INSTRUCTION MANUAL
Waste Oil Drain
WOD-68
Congratulations on purchase of this World Class Waste Oil Drain!

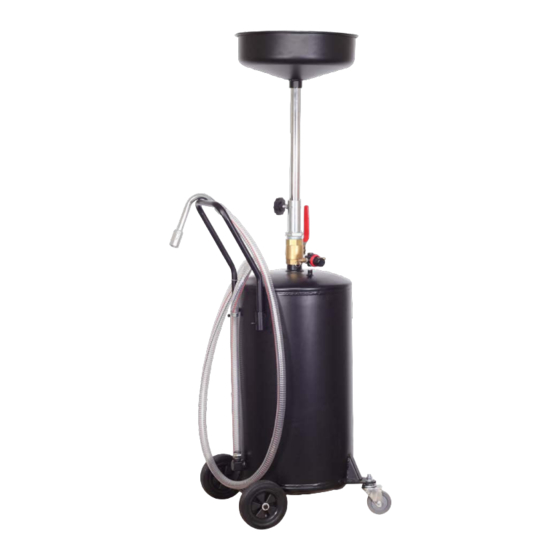

Used/Waste Oil Drain with wheel mounted tank for gravity
draining of motor, engine, gearbox & differential oils,
transmissions & power steering fluids etc. from all type of
motor vehicles placed on an auto-lift or a pit.
Centrally mounted bowl is height adjustable & can be
optimally positioned allowing oil draining as well as other
operations
CONSTITUENTS
1. Tank fitted with Pressure Regulator & Safety Valve.
Assembled with 2 front swivel castors and discharge
hose
2. Bowl fitted with wire mesh screen
3. Drain Tube
4. Bowl Adjustment Tube Lock & Collar
5. Handle
6. Rear Rubber Wheels (2)
7. Wheel Fitment Kit comprising of 2 washers & 2 Circlips
8. PTFE Tape
TOOLS NEEDED TO ASSEMBLE THE UNIT
1. HexKey*
*not included
2. Circlip Plier*
*not included
Spout Handle
Top Hose
Clamp
Discharge
Hose
doubles
as a level
indicator
S1570, Rev A
Bowl fitted
with wire mesh
Drain Tube
Bowl Adjustment
Tube Lock
Tank Closure Valve
Collar
Brass Valve
Pressure Regulator
Tank
Front
Wheel
Rear Wheel
