INSTRUCTION MANUAL
Electric Fuel Pump
FPM
FPM-12, FPM-12/HF, FPM-24, FPM-115, FPM-220

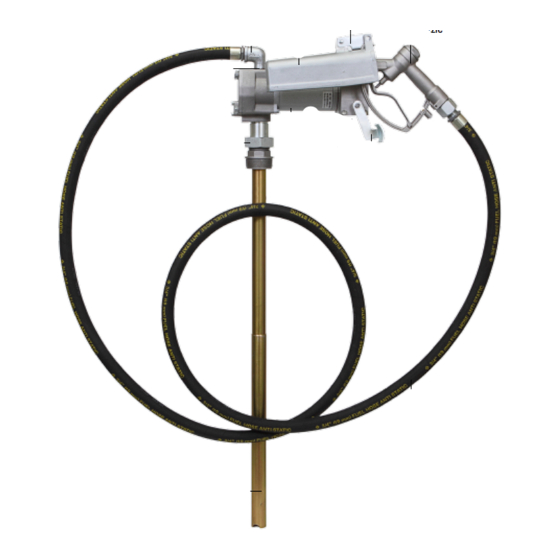

Congratulations on purchase of this World Class Electric Fuel Pump!
Pump
Outlet
Swivel
Nut
Suction Tube
Pad Lock
Nozzle
Elbow
Lever
Holder
OFF
ON
Switch
Motor
Hose
12' x 3/4" I.D.
Fuel
Control
This is an Electric Fuel Pump. Pump uses 2 Sintered Powder
Nozzle
Metal gears for suction & is designed for use with Gasoline,
Diesel, E15 Fuel, Kerosene, Bio Diesel (B20) etc. In ideal
laboratory conditions, pump dispenses up to 15 GPM (57 LPM)
at the pump outlet. The actual discharge varies depending on
fuel being used, temperature, Hose Length, power supply etc.
Pump Comes in 4 Power Ratings
• 12V DC
• 24V DC
• 115V AC, 60 Hz.
• 220V AC, 50/ 60 Hz
Rating is marked on the pump motor.
Pump uses an Explosion Proof motor & the motor is UL ,
cUL, ATEX & IECEx listed.
1
S1590, Rev B
LISTED MOTOR
Inside of
Pump
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Groz FPM Series
Summary of Contents for Groz FPM Series
- Page 1 INSTRUCTION MANUAL S1590, Rev B Electric Fuel Pump LISTED MOTOR FPM-12, FPM-12/HF, FPM-24, FPM-115, FPM-220 Congratulations on purchase of this World Class Electric Fuel Pump! Pad Lock Fuel Nozzle Elbow Lever Control Holder This is an Electric Fuel Pump. Pump uses 2 Sintered Powder Nozzle Metal gears for suction &...
- Page 2 PUMP CONSTITUENTS 1. Pump & Motor Assembly 2. Nozzle Holder 3. Elbow 4. Suction Tube (2 parts) 5. Bung Nut 6. Hose Assembly (12’ Long x ¾” ID Anti Static Hose) 7. Fuel Control Nozzle 8. Power Cord complete with Fuse & Clamps* 9.
-
Page 3: Assembly And Installation
ASSEMBLY & INSTALLATION Ensure tank / drum being used is clean & free of welding slag. 6. Connect the two halves of the Suction Tube. Suction tube Ensure the tank is vented to allow air into the tank as fuel is is designed for use with tanks / drums which are 36”... -
Page 4: Pump Operation
12. The pump is now 4. In less than 10 seconds, the pump will be primed & fuel will ready for use start dispensing from the Nozzle 5. Dispensing Action can be stopped by closing the Nozzle, with the pump still ON. This however must not be done for more than 5 minutes. -
Page 5: Pump Assembly
PARTS DRAWING FOR FPM-12, FPM-12/HF, FPM-24, FPM-115, FPM-220 PUMP ASSEMBLY HOSE, SUCTION TUBE, POWER CABLE & FUEL CONTROL NOZZLE ASSEMBLY... - Page 6 PARTS LIST FOR FPM-12, FPM-12/HF, FPM-24, FPM-115, FPM-220 PUMP ASSEMBLY REFERENCE NUMBER DESCRIPTION QUANTITY Thread Forming Bolt M4 Cover (Strainer) O-Ring Strainer Thread Forming Bolt M8 Housing Cover O-Ring Gear Key Gear Shaft (Gear) Housing (Machined) Fitting (Bung) Swivel Nut Bung Adaptor Seal (Metal Inserted) O-Ring (Viton)
-
Page 7: Pump Specification
PUMP SPECIFICATION FPM-12 FPM-12/HF FPM-24 FPM-115 FPM-220 Description Heavy Duty 12V DC High Flow 12V DC Heavy Duty 24V DC Heavy Duty 115V AC Heavy Duty 220V AC Flow Rate* Up to 15 GPM Up to 20 GPM Up to 15 GPM Up to 15 GPM Up to 15 GPM (57 LPM) -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Motor rotation wrong. (12 VDC and 24 VDC Check wiring instructions for possible problems units only) Missing relief valve o-ring seal (16) Remove gear cover (6), inspect seal, replace if missing or damaged Sheared drive key (9) Remove cover (6) and inspect key, replace if worn or sheared Dirt under by-pass valve (17) or seal (16) Remove cover (6) and inspect, clean or replace if damaged... - Page 9 REPLACEMENT & SERVICE PARTS PROGRAM FOR ELECTRIC FUEL PUMPS REPLACEMENT PARTS PROGRAM REFERENCE # FROM OIPM GROZ PART # DESCRIPTION MOT/FPM/12 Motor, 12V DC MOT/FPM/12/HF Motor, 12V DC HF MOT/FPM/24 Motor, 24V DC MOT/FPM/115 Motor, 115V AC, 60 Hz MOT/FPM/220...
- Page 10 SERVICE PARTS PROGRAM CONSTITUENT QTY. KIT PART # KIT DESCRIPTION CONSTITUENT PART # CONSTITUENT DESCRIPTION REFERENCE PER KIT FROM OIPM ORG/BS154 O Ring ORG/V/BS809 O Ring (Viton) FPM/KIT/SK Seal Kit ORG/BS126 O Ring SEL/FPM/12 Seal (Metal Inserted) GEAR/FPM/12 Gear FPM/KIT/GK Gear Kit KEY/GEAR/FPM/12 Key (Gear)
- Page 11 Village Kherki Daula, National Highway-8 Gurgaon-122001, Haryana, INDIA TEL +91.124.282.7700 / 221.4050 FAX +91.124.2827986 / 221.4224 FAX (USA) +1.509.271.7848 FAX (UK) +44.870.121.1854 E-MAIL info@groz-tools.com www.groz-tools.com The Groz name, Groz logo and the mark are trademarks of Groz Engineering Tools (P) Ltd. India...
