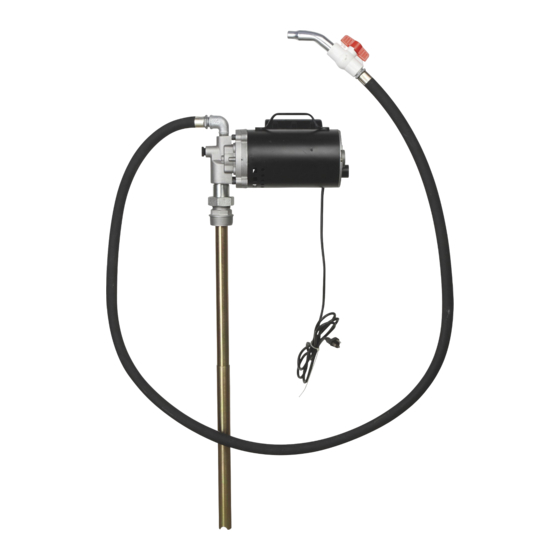

Electric Oil Pumps
Heavy duty oil pump
designed to transfer
bulk oils, hydraulic
oils, used oil etc.
Air cooled motor with
thermal protection
Non-corroding
aluminum die cast
pump body
Sintered powder
metal gears
Self-priming, positive
displacement design
Built-in 2" bung
adaptor for mounting
on drums/tanks
ANTIFREEZE
OIL
SPECIFICATIONS
DESCRIPTION
FLOW
MOTOR
AMP
RPM
SUCTION PIPE
HOSE
INLET/ OUTLET
DISPENSING NOZZLE
POWER CABLE LENGTH
MAX. WORKING PRESSURE
WETTED COMPONENTS
RECOMMENDED USE
DO NOT USE WITH
CAT NR.
OPM/115
Electric oil pump with 115V AC motor
OPM/220
Electric oil pump with 220V AC motor
OPM/115/HF
Electric oil pump with high flow 115V AC motor
OPM/220/HF
Electric oil pump with high flow 220V AC motor
High horsepower to
flow ratio assures
adequate power to
pump viscous fluids at
low temperatures
Pump has an internal
relief valve to bypass
flow, if the discharge
pressure exceeds the
relief valve setting
Can be used to
transfer used oil with
a screen fitted onto
the suction tube
Duty Cycle:
30 minutes ON / 30
minutes OFF
GEARED PUMP
AC REGULAR FLOW
OPM/115
Heavy Duty, 115V AC
Heavy Duty, 220V AC
Upto 15 LPM (4 GPM)
Upto 11.5 LPM (3 GPM)
1/2 HP 115V AC,60 Hz
1/2 HP 220V AC,50 Hz
9 Amp
6 Amp
1600
1300
Aluminum, Steel, Cast Iron, Nylon, NBR, Zinc, Polypropylene, PVC
Oils up to a viscosity of SAE 90, Synthetic Oils, Used Oils, Hydraulic Oils, Cutting Oils, Oil Based
Herbicides, Non-Flammable Oil Based Solvents, Liquid Soap
Fuels, Corrosive Media, Acids, Chemicals, Lacquers, Paint Thinners
DESCRIPTION
INSTRUCTION MANUAL
3/4" × 8'
Rubber
Hose
OPM/220
OPM/115/HF
High Flow Heavy Duty,
115V AC
Upto 30 LPM (8 GPM)
1/2 HP 115V AC,60 Hz
9 Amp
3400
34" long
3/4" × 8'
1" NPT/ 3/4" NPT
Ball Valve
8'
65 PSI (4.5 BAR)
S3260 REV A
OPM
Lift Handle
Convenient
Spin Collar
for easy
installation
2 pc
threaded
suction
Power
tube
Cable
AC HIGH FLOW
OPM/220/HF
High Flow Heavy Duty,
220V AC
Upto 23 LPM (6 GPM)
1/2 HP 220V AC,50 Hz
6 Amp
2800
Advertisement
Table of Contents
Related Manuals for Groz OPM/115
Summary of Contents for Groz OPM/115
- Page 1 30 minutes ON / 30 adaptor for mounting minutes OFF on drums/tanks ANTIFREEZE GEARED PUMP SPECIFICATIONS AC REGULAR FLOW AC HIGH FLOW OPM/115 OPM/220 OPM/115/HF OPM/220/HF DESCRIPTION Heavy Duty, 115V AC Heavy Duty, 220V AC High Flow Heavy Duty, High Flow Heavy Duty,...
-
Page 2: Safety Information
SAFETY INFORMATION • Male threads between the 2 suction tube • Keep the work area clean and dry. Damp or (19) parts wet work areas can result in injury. • Male threads on the suction tube (19) end • Store idle equipment. When not in use, tools that fits into the pump inlet. -
Page 3: Exploded View
mount the pump to the motor (1) are removed 8. Motor (1) is air cooled & thermally protected and then reinstalled through the two holes in the which means that the pump can be run for a mounting bracket. The other leg of the bracket long time. -
Page 4: Parts List
PARTS LIST REF NO. PARTS DESCRIPTION QUANTITY REF NO. PARTS DESCRIPTION QUANTITY Motor Spin collar Shaft seal Bung adaptor Cap screw (M8 x 1.25) Ball (relief valve) Body cover Spring (relief valve) O-Ring Pin (3/8 x 3/4) Bolt (3/8-16 UNS) Plug (1/2"... - Page 5 Motor stalls when nozzle is closed Relief valve is stuck Inspect relief valve, making sure ball (15) is free. Replace if damaged Low supply voltage Check supply voltage Gears (7) damaged and binding Inspect gears (7). Gears should turn freely. Replace if damaged Damaged motor (1) Replace the motor (1)
- Page 8 Groz makes all efforts to ensure that its products meet the highest standards of quality and durability and warrants to the original purchaser its range of products for a period of 12 months from Groz Invoice date, against defects in materials and workmanship. If the Groz product is part of a set, only the portion that is defective is subject to this warranty.
