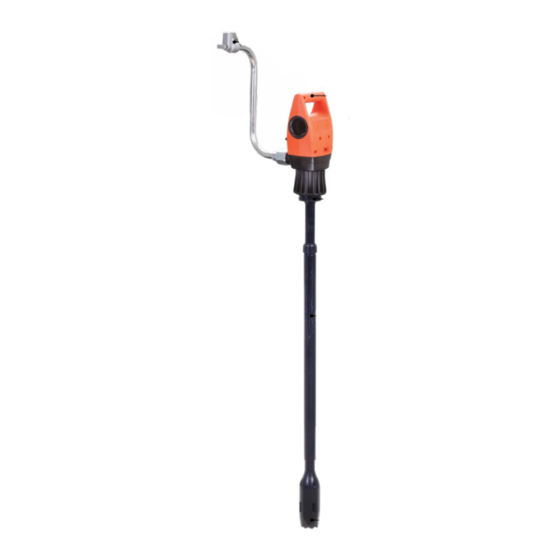

Groz EDR-OL Instruction Manual

Electric Oil
Drum Pump
Electric oil transfer
pump for use in
workshops.
Compact &
lightweight
construction.
On/Off Switch with
LED Indicator.
Built-in fuse for
overload protection.
Silenced motor makes
almost no noise.
Duty Cycle:
15 minutes On / 30
Minutes Off.
Self-priming design:
Allows for high
suction lift even at dry
start-up.
Stainless steel filter
built into the suction
tube inlet prevents
contaminants from
entering & hence
avoiding resultant
damage.
Suitable for use with
205 litres (55 gal.)
drums or 1000 - 1250
litres (275-330 gal.)
IBC's/Totes
SPECIFICATIONS
MOTOR TYPE
AC POWER ADAPTER
MAX. VISCOSITY OF MEDIA
WORKING TEMPERATURE RANGE
WETTED COMPONENTS
RECOMMENDED USE
DO NOT USE WITH
CAT NR.
EDR/OL/AC/AU
EDR/OL/AC/EU
EDR/OL/AC/UK
EDR/OL/AC/US
Discharge spout with
a. Aluminum die
cast non-drip
attachment
b. Welded steel
holder that
prevents entry of
contaminants.
Built-in 2" bung
adaptor fits 205
litre (55 gal.) drums.
Bung adapter can
be adjusted by 0.6"
(15 mm) to adjust to
drums with varying
heights.
Includes an additional
bung thread converter
for converting 2"
standard bung
threads to 2.5" × 5
mm buttress for using
the same pumps with
IBC's/Totes
Telescopic suction
tube extends from
33-1/2" (850 mm) to
49" (1245 mm)
DELIVERS
UPTO
16 LPM
With SAE-30
(4.2 GPM)
Hydraulic oil
DC Brush Motor (5 Pole)
Input: 100 - 240 V AC, 50 / 60 Hz,
Output: 20 V DC Constant Voltage, 6A max
100 cSt / 465 SSU
41°F TO 104°F (5°C TO 40°C)
Viton, POM, Stainless Steel, PE, NBR, PP, Steel, Aluminum
Motor oil, Hydraulic oil, Lubricants
Gasoline, Corrosive chemicals, Lacquer thinners, any material that is not
compatible with the pump construction
DESCRIPTION
With non-drip attachment & AC power adaptor with AU plug
With non-drip attachment & AC power adaptor with EU plug
With non-drip attachment & AC power adaptor with UK plug
With non-drip attachment & AC power adaptor with US plug

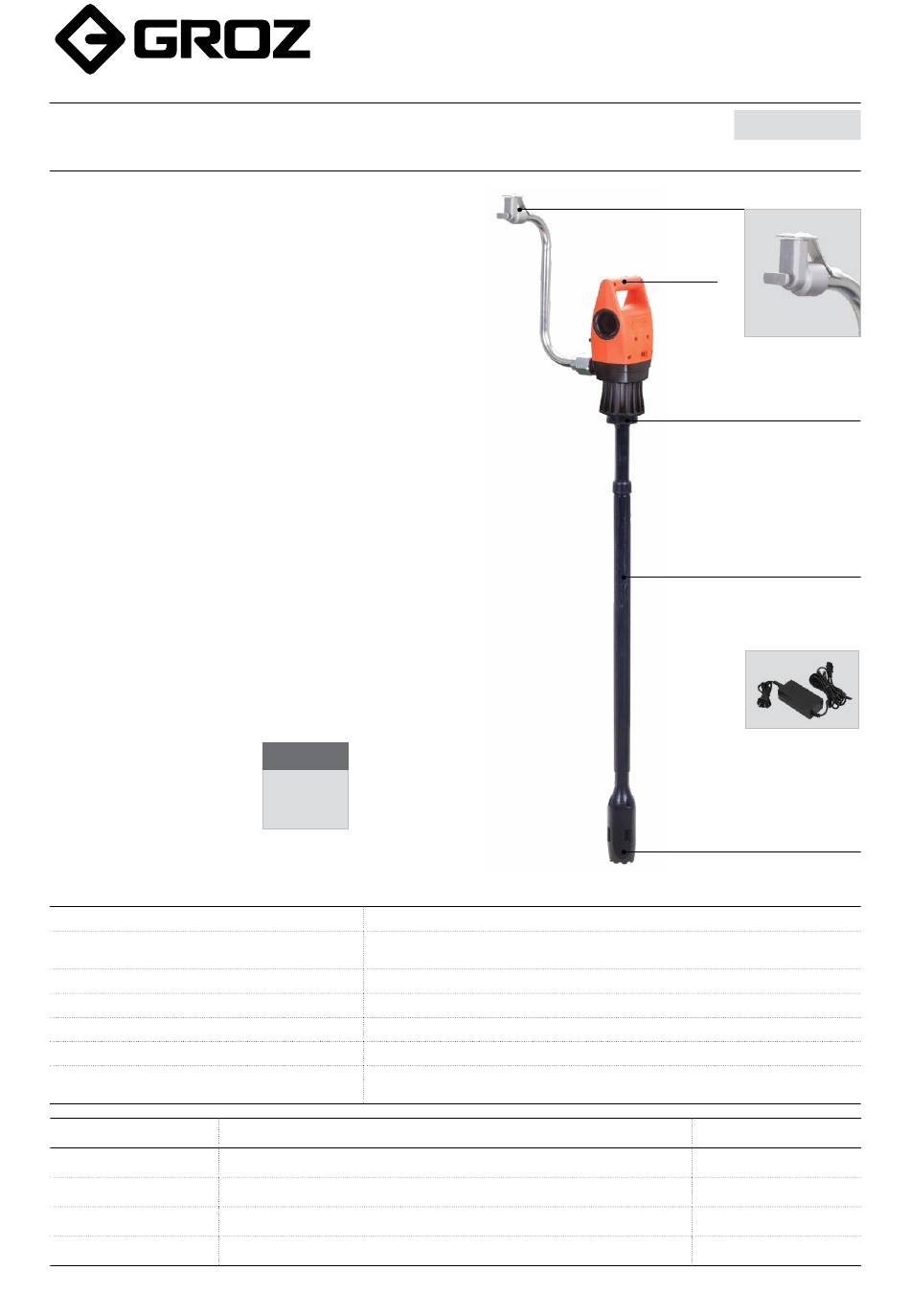

INSTRUCTION MANUAL
S3200 REV A
EDR-OL
Rigid Spout - Can
be rotated 180°
to double up as a
non drip nozzle
Lift
Handle
Thread Converter
Buttress Threads)
With 100V-240V,
PLUG TYPE
Australian
European
UK
US
(with 2.5x5 mm
Telescopic
Suction Tube
50/60 Hz, AC
Dual Voltage
Power Adaptor
SS Filter
