Groz S1410 Instruction Manual

Plastic

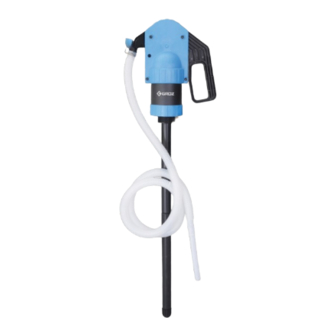

Lever Pump
Lever action barrel pump, designed for use
with high viscosity oils, agricultural chemicals
etc. Pump design makes it extremely
convenient & comfortable to pump thick oils
without excessive fatigue
Choice of materials used in the pump
construction, make it versatile for use
with water based media, as well as select
chemicals
Built-in 2" bung adaptor allows the pump to
be fixed on drums with 2" opening
Pump position can be adjusted using the lock
nut incorporated in the pump body
Pump outlet is fitted with an air vent cap
which when loosened breaks the siphon
action
Supplied complete with suction tube for use
with 50-205 litres (15-55 gallons) drums & 2m
3/4" flexible corrugated discharge hose
×
Also available with Tri-sure adaptor - making
the pump suitable for use on plastic drums
with buttress threads
WETTED COMPONENTS
Polyacetal, Polypropylene, Polyethylene, PVC
& Viton
RECOMMENDED USE
Water-based media, Detergents, Soaps,
Antifreeze, Windshield washer, Hydraulic oils,
Lubricants, Herbicides & Pesticides, Adblue,
Urea, DEF etc. Pump should only be used
with Non-flammable liquids
DO NOT USE WITH
Any media not compatible with materials
used in the pump construction
These pumps must never be used for fuel
transfer or with thinners, solvents etc.
FEATURES
FLOW RATE
UPTO
1 PINT (500ML) /
STROKE
OPERATING TEMPERATURE
–5°C TO 45°C
(23°F TO 113°F)
www.groz-tools.com
FLUIDS
OIL ANTIFREEZE
PESICIDES &
DEF / ADBLUE
HERBICIDES
INSTRUCTION MANUAL
WINDSHIELD
WATER
FLUID
UREA
S1410, REV B
PLP
Anti Siphon
Vent Cap
Operating Lever
Lock Nut to mount
pump in any position
2" Bung Adaptor
Suction Tube
Flexible corrugated
PVC Hose
(2m x 3/4" I.D.)
BUNG/P/TS
