Groz EDR-OLM Instruction Manual

Groz EDR-OLM Instruction Manual

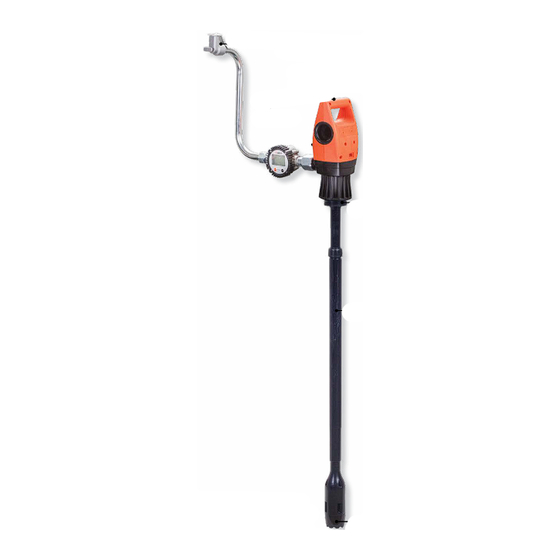

Electric oil drum pump

Advertisement

Quick Links

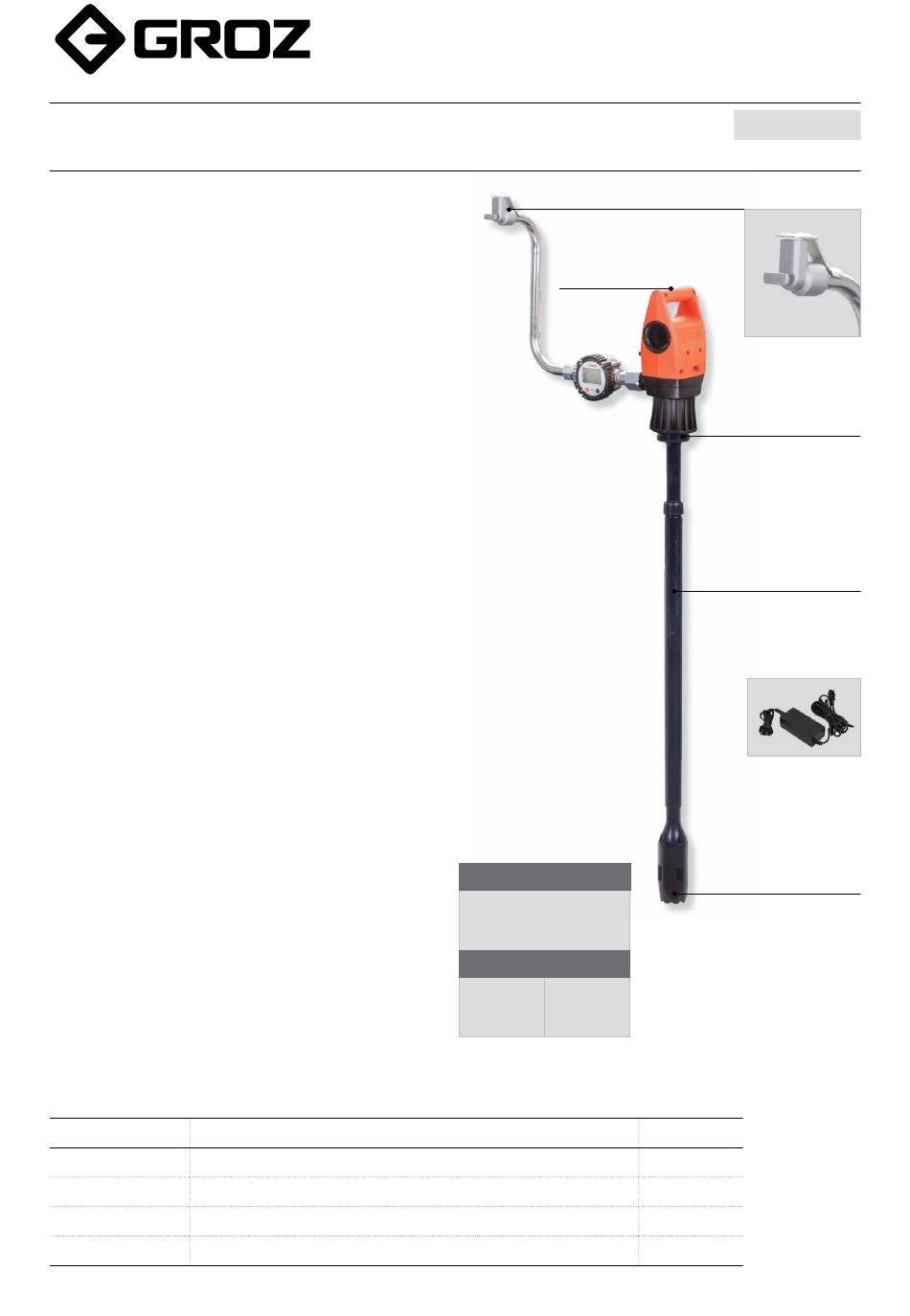

Electric Oil
Drum Pump
Electric oil transfer
pump for use in
workshops.
Compact &
lightweight
construction.
On/Off Switch with
LED Indicator.
Built-in fuse for
overload protection.
Silenced motor makes
almost no noise.
Duty Cycle:
15 minutes On / 30
Minutes Off.
Self-priming design:
Allows for high
suction lift even at dry
start-up.
Stainless steel filter
built into the suction
tube inlet prevents
contaminants from
entering & hence
avoiding resultant
damage.
Discharge spout with
a. Aluminum die
cast non-drip
attachment
b. Welded steel
holder that
prevents entry of
contaminants.
Comes with Digital
Oil Meter
a. High pressure
positive
displacement
meter suitable for
in-line applications.
CAT NR.
DESCRIPTION
EDR/OLM/AC/AU
With oil meter, non-drip attachment & AC power adaptor with AU plug
EDR/OLM/AC/EU
With oil meter, non-drip attachment & AC power adaptor with EU plug
EDR/OLM/AC/UK
With oil meter, non-drip attachment & AC power adaptor with UK plug
EDR/OLM/AC/US
With oil meter, non-drip attachment & AC power adaptor with US plug
b. Oval gear
mechanism for
optimum accuracy.
c. 6 Digit non-
resettable totaliser.
d. Electronic display
using one 3V
lithium Ion battery
with life up to 2
years.
e. Robust aluminum
die cast
construction with
protective shroud
on meter.
f. Easy user re-
calibration
g. Meter measures in
Litres, US Gallons,
Quarts, Pints
Built-in 2" bung
adaptor fits 205
litre (55 gal.) drums.
Bung adapter can
be adjusted by 0.6"
(15 mm) to adjust to
drums with varying
heights.
Includes an additional
bung thread converter
for converting 2"
standard bung
threads to 2.5" × 5
mm buttress for using
the same pumps with
IBC's/Totes
Telescopic suction
tube extends from 33-
1/2" (850 mm) to 49"
(1245 mm)
Suitable for use with
205 litres (55 gal.)
drums or 1000 - 1250
litres (275-330 gal.)
IBC's/Totes
INSTRUCTION MANUAL
Rigid Spout - Can
to double up as a
Lift
Handle
WORKING
TEMPERATURE RANGE
41°F TO 104°F
(5°C TO 40°C)
MAX. WORKING
DELIVERS
PRESSURE
UPTO
1000 PSI
16 LPM
(70 BAR)
(4.2 GPM)
S3120, REV A
EDR-OLM
be rotated 180°
non drip nozzle
Thread Converter
(with 2.5x5 mm
Buttress Threads)
Telescopic
Suction Tube
With 100V-240V,
50/60 Hz, AC
Dual Voltage
Power Adaptor
SS Filter
With SAE-30
Hydraulic oil
PLUG TYPE
Australian
European
UK
US
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDR-OLM and is the answer not in the manual?

Questions and answers

Summary of Contents for Groz EDR-OLM

  • Page 1 INSTRUCTION MANUAL S3120, REV A Electric Oil EDR-OLM Drum Pump Electric oil transfer b. Oval gear pump for use in mechanism for Rigid Spout - Can workshops. optimum accuracy. be rotated 180° c. 6 Digit non- to double up as a non drip nozzle Compact &...
  • Page 2 Know the digital oil meter Major components Bend pipe assembly & outlet adaptor Power adaptor LCD display - Powered by one lithium battery of 3V. Includes three numerical Totals and other Power cord keys as given in the figures: O.I.P.M. www.groz-tools.com...
  • Page 3 RESET Key - is used to reset the Batch Total Resettable and Reset Total Batch Total MODE Key- is used to change the unit of measurement Combination of RESET + MODE keys- is used to 1/2" Female 1/2" Female enter calibration mode Port Port Oval Gear Assembly: It has two female...
  • Page 4 3. At the end of the process, the display shows toggling back and forth between GAL and the reset batch total and the RESET TOTAL. L with each being displayed for 2 seconds before toggling back to the other. www.groz-tools.com...
  • Page 5 0,000 12,345 33,3 1345,6 4. After a few moments, the RESET TOTAL is replaced by TOTAL 3. Press the MODE button which will cause the units of measurement for batch total to start 0,000 toggling. 1345,6 D. Resetting the reset total The RESET TOTAL can only be reset immediately after resetting the batch total.
  • Page 6 9. Once the desired volume (2 units in this case) is selected, that volume will remain displayed in the bottom right part of the display. The meter can be calibrated as many times 0,000 as desired. Calibration is needed to make the meter suitable for actual conditions. www.groz-tools.com...
  • Page 7 MAINTENANCE (Refer “EXPLODED VIEW”) 2. Remove the two screws (l) from the back The Meter has been designed to require a side of the electronic assembly (j), this will minimum amount of maintenance. The only separate the electronic assembly (j) from the maintenance jobs required are: meter face plate (h).
  • Page 8: Exploded View

    Shroud (Meter) Toggle switch Meter face plate Pump outlet Screw Joint nut Electronic assembly Telescopic suction tube Allen bolt Filter Screw End cap Battery Outlet adaptor Sticker Adaptor Digital oil meter Bend pipe assembly Housing Power adaptor Power cord Cover www.groz-tools.com...
  • Page 9: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Pump not creating suction Filter clogged Clean the filter Pump not working Wire damaged inside the pump. Send the pump to the service centre Electricity supply problem Check the electricity supply. Power adaptor not working Replace the power adaptor.
  • Page 12 This warranty does not apply to damage due directly or indirectly, to misuse, abuse, wear and tear, negligence or accident, repairs or alterations outside Groz plants, or to lack of maintenance. Groz shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of its products.
