IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

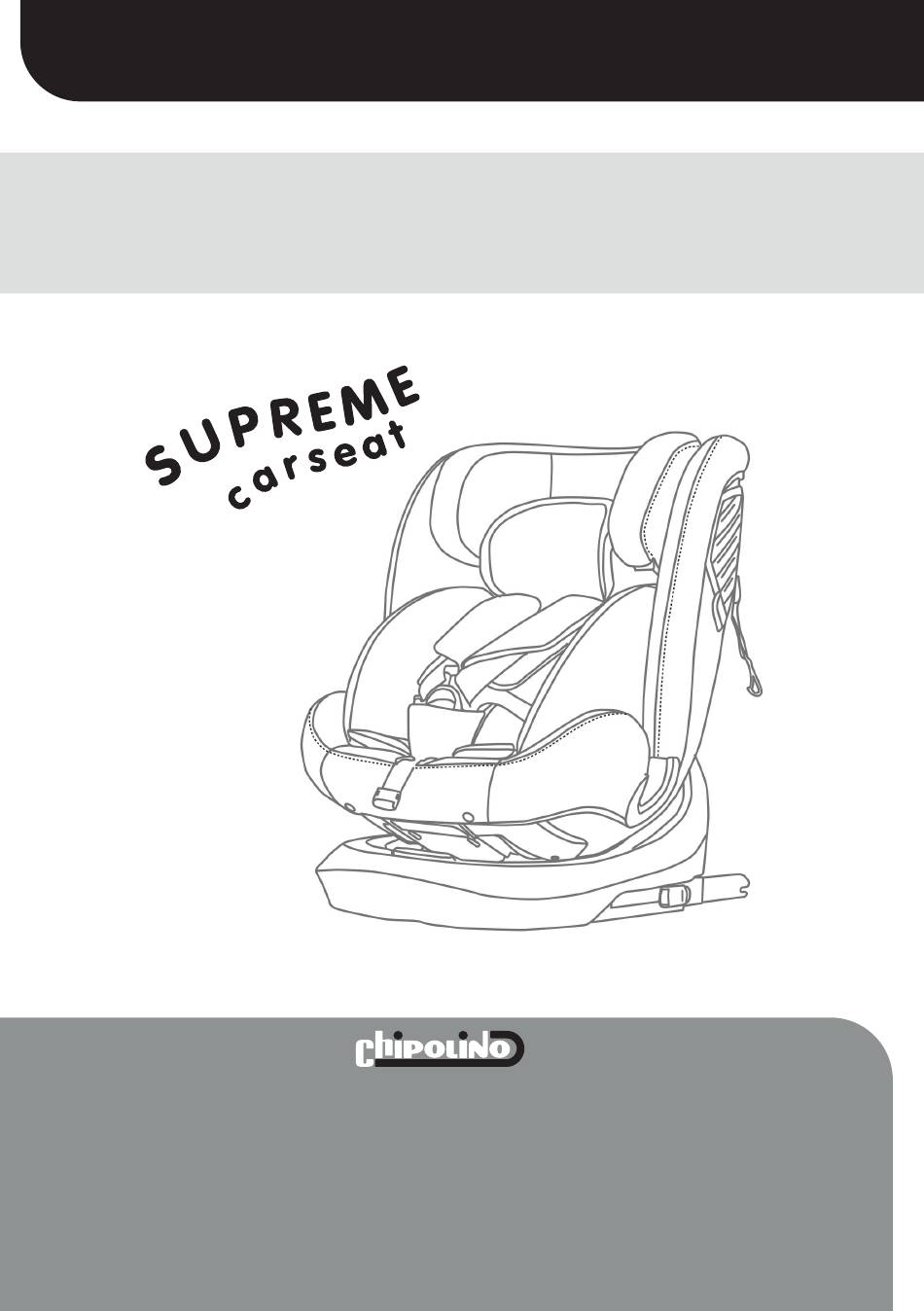

INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„SUPREME"
This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Table of Contents
Related Manuals for Chipolino SUPREME
Summary of Contents for Chipolino SUPREME
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „SUPREME” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...

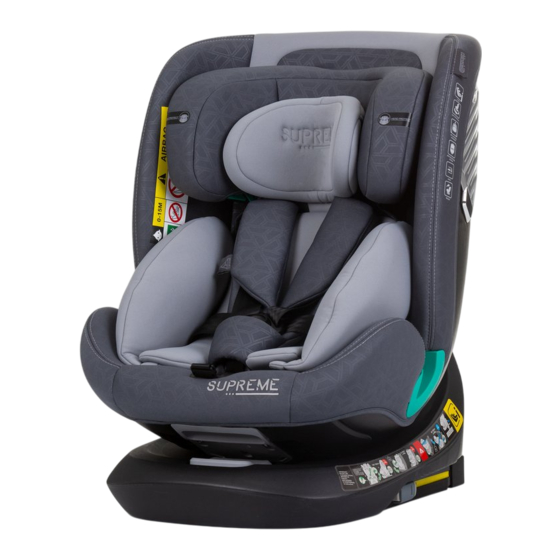

- Page 2 Car seat „SUPREME” is suitable for children with height 40-150 cm and approximate age 0-12 years: I-Size universal ISOFIX: 40-105 cm / ≤18 kg. I-Size booster seat : 100-150 cm Position of Position of the Installation method Height of the child...
- Page 3 CAUTION! 1. NEVER INSTALL THE CAR SEAT IN DIRECTION OF NORMAL MOVEMENT OF THE VEHICLE AND IN “FORWARD FACING” POSITION BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS! 2. DO NOT PLACE THE RESTRAINT SYSTEM ON A VEHICLE SEAT EQUIPPED WITH ACTIVE AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURY! Diagonal belt of the vehicle seat Lap belt of the vehicle seat...
- Page 4 CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM! CAUTION! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH ACTIVE AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH! ...
-
Page 5: Product Features
Keep the instructions for use in the space provided in the car seat or in the vehicle in which you are going to use the car seat. Do not expose the car seat to direct sunlight to prevent the child from burning, deforming the car seat and especially the plastic parts. - Page 6 1. Headrest 11. Handle to rotate the seat 2. Additional cushion 12. Shoulder belts pad 3. Buckle 13. Shoulder belts 4. Soft pad of the buckle 14. Headrest cover 5. Adjustment strap 15. Handle for adjusting the headrest height 6. Belts adjusting mechanism 16.
- Page 7 Adjusting the ISOFIX attachments Hold and press the ISOFIX adjustment button (1) as shown in the figure and at the same time move the ISOFIX attachment outwards as far as possible. Make the same steps for the other ISOFIX attachment. Installation and removal of ISOFIX attachments “click”...
- Page 8 INSTALLATION OF TOP TETHER 1. Press the button for adjusting the length of the Top tether (1) and pull the Top Tether as much as possible. 2. Thread the Top tether through the guide (2) of the car seat, as shown in the figure. 3.
- Page 9 ROTATION /CHANGE OF THE CAR SEAT DIRECTION ‘’FORWARD’’ ‘’REARWARD“ placing/removing “click” facing facing of the child 1. Pull out the handle for rotation of the seat at 360° (1). 2. With other hand, turn the seat (2). The can be fixed in two positions: А.
-
Page 10: Adjusting The Height Of The Headrest
ADJUSTING OF 5-POINT HARNESS OF THE CAR SEAT AND RESTRAINING THE CHILD IN THE CAR SEAT “click” 1. Press the button for adjusting the belts (1) and at the same time pull the shoulder straps outward (2). IMPORTANT! Pull the shoulder belts, not the soft pads on them. 2. - Page 11 USE OF ADDITIONAL BABY CUSHION Front view Back view Use the additional baby cushion for babies with height from 40 up to 60 cm. The soft cushion makes additional comfort and convenience for small babies. INSTALLATION OF THE CAR SEAT “REARWARD” FACING For child’s height: 40-105 cm ISOFIX + Top Tether + 5-point harness of the car seat click...
- Page 12 “click” 1. Rotate the car seat so that when installed on the passenger seat, the car seat faces “BACKWARD”. Install the car seat with the ISOFIX attachment, following the installation instructions in the “ISOFIX” section. IMPORTANT! Make sure the car seat is firmly and securely mounted on the passenger seat. 2.
- Page 13 click “click” 1. Rotate the car seat so that when installed on the passenger seat, the car seat faces “FORWARD”. Install the car seat with the ISOFIX attachment, following the installation instructions in the “ISOFIX” section. IMPORTANT! Make sure the car seat is firmly and securely mounted on the passenger seat. 2.
- Page 14 INSTALLATION OF THE CAR SEAT „FORWARD“FACING For child’s height: 100-150 cm Installation way 1: 3-point safety belt of the vehicle Installation way 2: 3-point safety belt of the vehicle +ISOFIX Preparation of the car seat before installation click 1. Press the belts adjustment button (1) and at the same time pull the shoulder belts out (2). IMPORTANT! Pull the shoulder belts, not the soft pads on them.
- Page 15 Installation way 1: 3-point safety belts of the vehicle Height of the child: 100-150 cm “click” 1. Place the car seat onto the vehicle seat on “FORWARD’’ facing position and press so that it is as close as possible to the back of the vehicle seat. 2.
-
Page 16: Removal Of The Cover
1. Place the car seat onto the vehicle seat on “FORWARD’’ facing position and install the car seat with ISOFIX attachments, following the instructions for installation in section “ISOFIX”. IMPORTANT! Make sure the car seat is firmly and securely installed to vehicle seat. 2. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Clean the plastic or metal parts with damp cotton cloth or sponge and mild soap. Upholstery and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 18 Bulgaria, Plovdiv, Golyamokonarsko shosse Str. № 1 www.chipolino.com...
