IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
MODEL „DUO SMART"
This child restraint system
is
manufactured
in
compliance with the requirements of Regulation No 129/03 of the Economic
Commission for Europe of the United Nations (UN/ECE) — Uniform provisions
concerning the approval of enhanced Child Restraint Systems used on board of
motor vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Related Manuals for Chipolino DUO SMART
Summary of Contents for Chipolino DUO SMART
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM MODEL „DUO SMART” This child restraint system manufactured compliance with the requirements of Regulation No 129/03 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions...
- Page 2 Child restrained system „DUO SMART” is approved according to Regulation R129/03 and complies with the following requirements: • It is installed in REARWARD FACING position and using the 3-point vehicle belt • Children height 40-87 cm Weight ≤ 13 kg •...
- Page 3 Not allowed installation Allowed installation Do not install the car seat on a vehicle seat equipped with activated air bag. Install the car seat on vehicle seat equipped with 3-point belt. CAUTION! WARNINGS! WARNING! NEVER LEAVE YOUR CHILD UNATTENDED! ...
- Page 4 In case of a car accident, the child restraint system and its belts may be damaged, therefore, it is recommended to replace it with a new one. Never use second hand child restraint. It may have suffered structural damage, which may make the child restraint extremely dangerous. Do not use this car seat without its seat cover and do not replace it with a new one, unless supplied by the manufacturer.
-
Page 5: Product Features

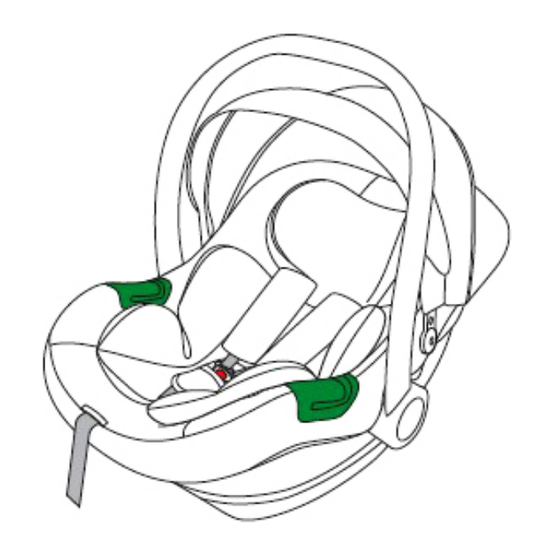

PRODUCT FEATURES Universal Belted Enhanced Child Restraint System. Suitable for children with height 40-87 cm and weight ≤ 13 kg. Head rest and shoulder belts height adjustment in 6 positions; 3-point safety belt; Additional new born pad for children with height 40-75 cm; MAIN PARTS Handle Headrest Lap belt guide Shoulder belts pads Canopy frame Shoulder belts Central buckle Crotch pad Crotch belt Belt length... - Page 6 1. HEAD REST AND SHOULDER BELTS HEIGHT ADJUSTMENT The head rest and shoulder belts height may be adjusted in 6 positions. Press the button (Press) and pull out the shoulder belts in order to loosen them (a). Press the head rest height adjustment button (b) and move it up or down to your desired position. Release the button in order to fix the height. When the position is fixed you will hear a click. ATTENTION! Check if the headrest is fixed by trying to slide it down. IMPORTANT! Always make sure that the shoulder belts are at the correct height for your child. Belts must go through the openings of the fabric cover and car seat, located closest to child’s shoulders.: Too low Too high Suitable height...
- Page 7 2. LOOSENING THE SHOULDER BELTS Step 1: Press the belts length adjustment button – located under the „PRESS“ label and at the same time grab the belts as shown in the figure. Step 2: Pull out the shoulder belts while holding the button pressed in order to loosen them. 3. TIGHTENING THE SHOULDER BELTS Pull the strap in order to tighten the belts.
- Page 8 5. SECURING THE CHILD IN THE CAR SEAT Before placing the child in the car seat you must loosen the shoulder belts (See section 2), adjust the headrest and shoulder belts height (See section 1) and place the newborn pad (See section 4). Press the red button on the central buckle (a), in order to unfasten the belts and put them aside (b). Place the child in the car seat and the shoulder belts on his shoulders (c). Join the two metal ends and insert them in the central buckle (d). When fixed you will hear a click. IMPORTANT! Make sure the belt ends are well fixed in the buckle by trying to pull the belts up (e). To take the child out of the seat, repeat the same actions in reverse order.
-
Page 9: Handle Adjustment
6. HANDLE ADJUSTMENT Press the buttons on both sides of the handle and move the handle. The handle may be placed in 4 positions: 1 – Position FORWARD (suitable for installing the car seat in the vehicle in position „REARWARD“). 2 – Position UP (suitable to carry the car seat). 3 – Position BACK (suitable to use when car seat is used as cradle). 4 – Position DOWN (suitable for when you feed the baby or play with it). ATTENTION! Make sure that the handle is well fixed and the belt is fastened before each use! 7. CANOPY INSTALLATION... - Page 10 Move the handle to position BACK, as shown in figure Insert the canopy frame in the fabric. Insert both ends of the canopy in the corresponding openings. Fix the edge of the canopy to the car seat as shown in the figure. Open the canopy by pulling it to the front. Move the handle to the desired position as described in section 6 „Handle adjustment“. To remove the canopy repeat the same actions in reverse order. 8.
- Page 11 Step 1: Place the child in the car seat. Fasten and adjust the 3-point safety harness. Adjust the handle in position UP. Place the car seat on the vehicle seat in REARWARD facing position and make sure that it is firmly pressed against the vehicle seat. Step 2: Thread the vehicle lap belt through the lap belt guides. Fasten the belt in the vehicle belt buckle (click). Pull the diagonal belt in the direction shown in the picture in order to tighten it. Note: Make sure that the belt is well fastened by trying to pull it. Step 3: Thread the diagonal vehicle belt through the diagonal belt guide located on the car seat back. Step 4: Tighten the vehicle belt by pulling in the direction shown in the picture. Step 5: Move the handle in position FORWARD.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap Fabric cover and soft pads may be hand washed at 30 ̊ С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 13 Bulgaria, Plovdiv, Golyamokonarsko shosse № 1 www.chipolino.com...
