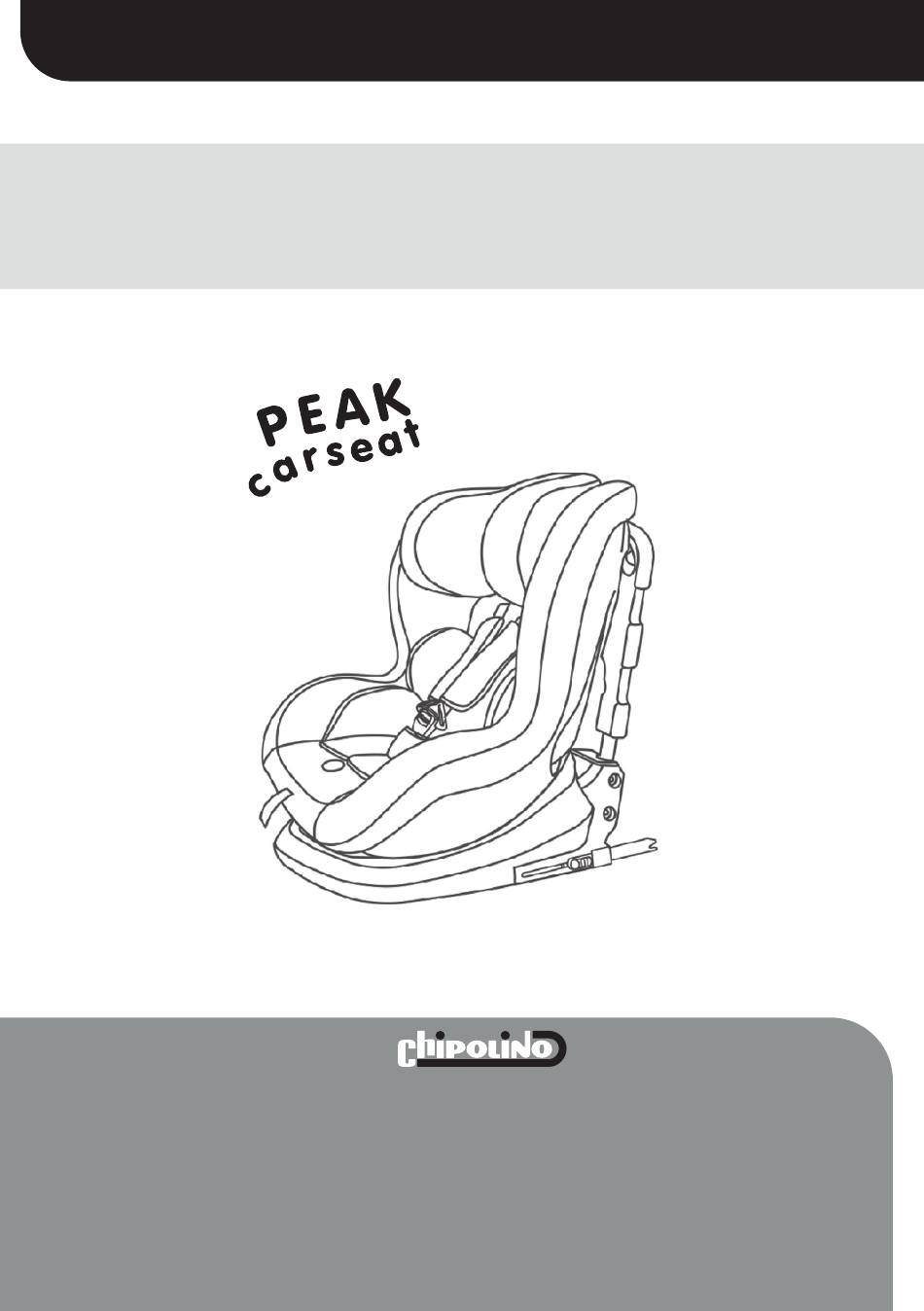

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„PEAK"
This child restraint system
is
manufactured
in
compliance
with
the
requirements
of
Regulation
No
129
of
the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform
provisions concerning the approval of enhanced Child Restraint Systems
used on board of motor vehicles (ECRS), the provisions of the Product safety
Directive 2001/95/EU of the European Parliament and The Council as well
as the Consumer Protection Law of Bulgarian Legislation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chipolino PEAK
Summary of Contents for Chipolino PEAK
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „PEAK” This child restraint system manufactured compliance with requirements Regulation the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning the approval of enhanced Child Restraint Systems...
- Page 2 Child restrained system “PEAK” is suitable for children with height 40-150 cm, approx. age 0-12 years: I-Size universal ISOFIX: 40-105 cm / ≤18 kg. I-Size booster seat: 100-150 cm Installation way Child height Position of car seat Approved type of car seat...
- Page 3 CAUTION ! 1. NEVER INSTALL THE CAR SEAT IN “FORWARD FACING” POSITION BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS! 2. NEVER INSTALL AND USE THE RESTRAINT SYSTEM IN POSITION “REARWARD” FACING ON A VEHICLE SEAT EQUIPPED WITH ACTIVATED AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURIES! 3.
- Page 4 CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM. CAUTION! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH! ...
-
Page 5: Product Features

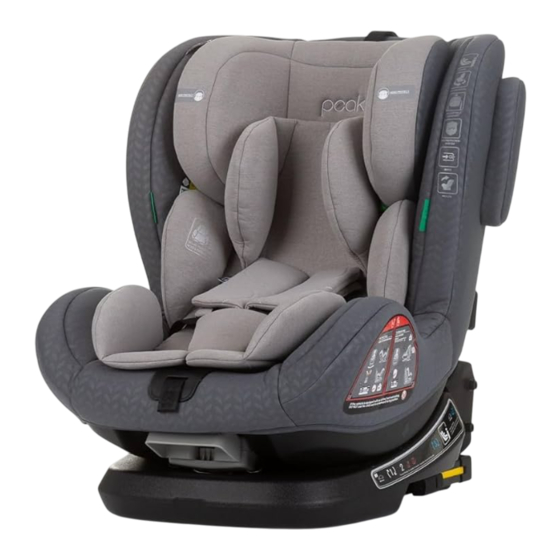

PRODUCT FEATURES This is child restrained system “PEAK” is suitable for children with height 40-150 cm, approx. age 0-12 years. The child restraint rotates 360 degrees on the base; Backrest recline;... - Page 6 INSTRUCTIONS FOR USE OF THE CHILD RESTRAINT SYSTEM IMPORTANT! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual. • Check the security of fixing after each operation! •...
- Page 7 INSTALLATION OF CAR SEAT IN THE VEHICLE INSTALLATION OF CAR SEAT IN POSITION “REARWARD” FACING For child height: 40-75 cm ISOFIX + Top tether + 5- point safety belt of car seat click click 1 and 2. Pull the lever for seat rotation (G) forward and rotate the seat at 180° to set it in position “REARWARD”...
- Page 8 CAUTION! ALWAYS BEFORE DRIVING THE VEHICLE CHECK IF THE CAR SEAT IS FIXED IN POSITION “REARWARD” FACING. DO NOT USE THE CAR SEAT IF IT IS NOT FIXED. Securing the child in installed car seat click 6. Adjust the head rest so that the shoulder belts to be at the same level as child’s shoulders. They should not be higher neither lower than child’s shoulders.
- Page 9 INSTALLATION OF CAR SEAT IN POSITION “FORWARD” FACING For child height: 76-105 cm ISOFIX + Top tether + 5- point safety belt of car seat click щрак 11 and 12. Pull the lever for seat rotation (G) forward and rotate the seat at 180° to set it in position “FORWARD”...
- Page 10 CAUTION! ALWAYS BEFORE DRIVING THE VEHICLE CHECK IF THE CAR SEAT IS FIXED IN POSITION “FORWARD” FACING. DO NOT USE THE CAR SEAT IF IT IS NOT FIXED. INSTALLATION OF CAR SEAT IN POSITION “FORWARD” FACING For child height: 100-150 cm 3- point vehicle safety belt click 18.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap. Fabric cover and soft pads may be hand washed at 30 ̊ С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 12 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
