IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„ATLAS"
This child restraint system
is designed and manufactured
in compliance with the requirements of Regulation 44 of the United Nations
Economic Commission for Europe concerning the safe transportation of
children, the provisions of the Product safety Directive 2001/95/EU and Council
Directive 91/671/EEC relating to the compulsory use of safety belts and child
restraint systems in vehicles of the European Parliament and The Council as
well as the Consumer Protection Law of Bulgarian Legislation.
Advertisement
Related Manuals for Chipolino Atlas
Summary of Contents for Chipolino Atlas
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „ATLAS” This child restraint system is designed and manufactured in compliance with the requirements of Regulation 44 of the United Nations Economic Commission for Europe concerning the safe transportation of...
- Page 2 N O T I C E GROUP 0+ (0-13 kg), GROUP I (9-18 kg), GROUP II (15-25kg) and GROUP III (22-36kg) 1. This is a “UNIVERSAL” CHILD RESTRAINT. It is approved to Regulation No 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “universal” child restraint for these age groups.
- Page 3 CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM. CAUTION! NEVER INSTALL THE CHILD RESTRAINT IN THE DIRECTION OF VEHICLE MOVEMENT AND FACING FORWARD BEFORE THE CHILD WEIGHT REACHES 9kg! ...
-
Page 4: Product Features

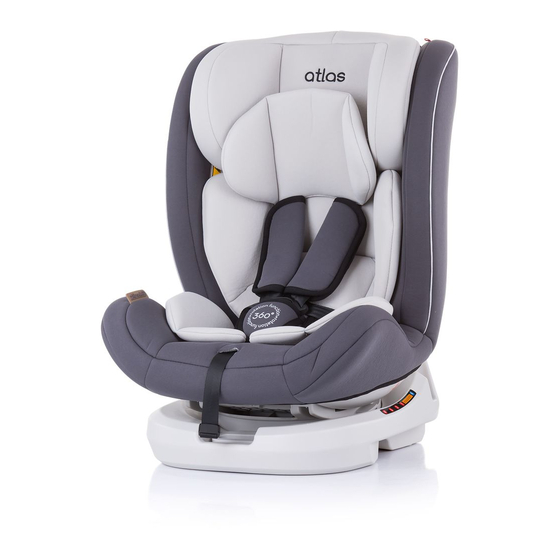

PRODUCT FEATURES Child restraint restraint while traveling in a vehicle designed for children weighing from 0 to 36 kg, classified in weight groups: 0+ (0-13 kg) – child age 0 up to 15 months I (9-18 kg) - child age 9 months up to 4 years II (15-25 kg) - child age 3 up to 7 years III (22-36kg) - child age 6 up to 12 years The restraint system is installed in direction opposite to the direction of the vehicle for weight group 0+; The restraint system is installed in FORWARD facing direction for groups I, II and III; 5-point safety belts; Backrest recline in 4 positions; ... - Page 5 INSTRUCTIONS FOR USE IMPORTANT! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual. • Check the security of fixing after each operation! • ALWAYS CHECK THE SECURITY OF FIXING OF THE SAFETY BELTS! 1. SECURING THE CHILD IN THE VEHICLE – GROUP 0+ (0-13 kg) IMPORTANT! Car seat is in „REARWARD FACING” position using the 3-point (diagonal and lap) belt of the vehicle. The child in the car seat is secured with the 5-point safety harness. 1-1 – Pull the backrest recline adjusting handle „R”. Release the handle in order to fix the seat. 1–2 – Pull the rotation seat lever with one hand (a) and rotate the seat (b) with your other hand at 180°. 1-3 – Place the car seat in the vehicle seat in position REARWARD FACING. 1-4 – Pull the vehicle belt (a) and thread the diagonal belt through the backrest guide. 1-5 – Remove the soft cushion of the car seat (a), thread the vehicle lap belt over the seat base and put the cushion. 1-6 – Fasten the vehicle belt in the buckle until you hear a click.
- Page 6 2-6 - Place the child in the car seat and fasten the safety harness in the central buckle. 2-7 - Adjust the headrest and harness height by pulling up the headrest height adjusting handle. 2-8 - Tighten the harness by pulling the adjusting strap. Note: The belt must be adjusted to be snug to child’s body, but without pressing him or causing discom- fort. The recommended space between belt and child’s body is 3cm (or two fingers). 3. REMOVING THE SAFETY HARNESS 3-1 – Loosen the 5-point safety harness (a). Unfasten the central buckle and split the belts from the metal connector on back of the seat (b and c). 3-2 – Remove the soft shoulder pads. 3-3 – Remove the central buckle of the harness and store the adjusting strap in the opening on the back of the car seat. 4. SECURING THE CHILD IN THE VEHICLE – GROUP II (15-25kg) and GROUP III (22-36kg) 4-1 - Car seat is in „FORWARD FACING” position. IMPORTANT! The child is secured with the 3-point (diagonal and lap) vehicle belt.
- Page 7 guide diagonal belt click 2-pull 1-press clcik 1-10 1-11 1-12 pull...
- Page 8 FORWARD FACING car seat Group I Positions: 1,2,3,4 insert “click” 2-pull 1-press 2-pull 1-press pull...
- Page 9 Groups II and III Positions: 1,2,3,4 diagonal belt insert “click”...
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Clean the plastic parts and metal parts with damp cotton cloth or sponge and mild soap. The upholstery and soft pads may be hand washed at 30 with mild detergent. Do not bleach! Do not dry clean! Do not tumble dry! Do not iron! Do not use abrasive, bleach or other aggressive detergents. Always after cleaning leave the car seat fully dry and after that use it or store it. If you keep it moist, mold may appear to your car seat. Harnesses must be cleaned with damp cloth and mild soap! Do not wet or remove the stickers. They contain important information! Always store your car seat indoors – on dry and clean place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals. Please, contact your authorized dealer for problems connected with the use or repair of this car seat. Fabric content: Shell: 100% polyester Filling: 100% polyester... - Page 12 Bulgaria, Plovdiv, str. Golyamokonarskoshosse 1 www.chipolino.com...
