IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„AVIATO"

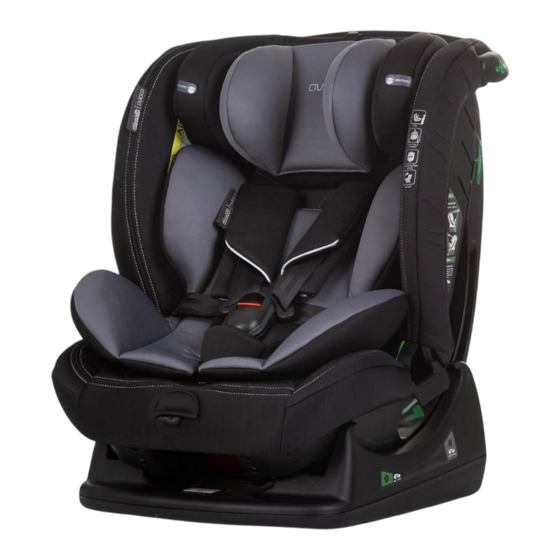

This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Table of Contents
Related Manuals for Chipolino AVIATO
Summary of Contents for Chipolino AVIATO
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „AVIATO” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...
- Page 2 Child restrained system “AVIATO” is suitable for children with height 40-150 cm, approx. age 0-12 years: Height, age and Installation way Position of car seat Category weight of child of car seat 40-105 cm 3-point vehicle belt ≈ 0-4 years Facing „REARWARD“...
- Page 3 CAUTION ! NEVER INSTALL RESTRAINT SYSTEM POSITION “REARWARD” FACING ON A VEHICLE SEAT EQUIPPED WITH ACTIVATED AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURIES! Correct/ suitable Incorrect/ not suitable Diagonal belt Lap belt NEVER INSTALL THE CAR SEAT IN VEHICLE WITH 2-POINT BELT! INSTALL IT ONLY IN VEHICLE WITH 3-POINT SAFETY BELT! ISOFIX attachment...
- Page 4 CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM. CAUTION! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH! ...
-
Page 5: Product Features
PRODUCT FEATURES This is child restrained system “AVIATO” is suitable for children with height 40-150 cm, approx. age 0-12 years. It can be used like below: Facing REARWARD (direction opposite to the motion) for children with height 40-105 cm with 5-point safety belt of car seat and 3-point vehicle car belt;... -
Page 6: Head Support Adjustment
CAUTION! Use the additional soft pad only for children with height from 40 up to 60 cm. INSTRUCTIONS FOR USE OF THE CHILD RESTRAINT SYSTEM IMPORTANT! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual. - Page 7 BUCKLE AT 5-POINT SAFETY HARNESS OF CAR SEAT Join both metal endings of shoulder belts (1) and insert them into the central buckle (2). By fixing you will hear a click sound. IMPORTANT! Make sure that endings are strongly fixed to buckle, as trying to pull them up. To release the belts, press the red button at central “щрак”...
- Page 8 REMOVING THE 5-POINT SAFETY HARNESS OF CAR SEAT IMPORTANT! 5-point safety harness of car seat must be removed when child reaches height 100-150cm. Step 1: To remove the car seat belt: 1. Loosen the shoulder belts. 2. Rotate the car seat, so its back is towards you. 3.
- Page 9 INSTALLATION OF CAR SEAT IN POSITION REARWARD FACING Height of child: 40-105 cm (weight 0-18 kg) 3-point vehicle belt + 5-point belt of car seat “click” 1. Pull the lever for recline and set the seat in position “R” (lying position). By fixing you will hear a click sound.
- Page 10 CAUTION! Belts must snug well the child’s body without causing discomfort. Recommended space between child’s body and belts is 2 fingers (around 2-3 cm). Make sure that belts are not twisted and snug the child without pressing. Make sure that the fabric cover does not affect the motion or locking of the belt in any case. INSTALLATION OF CAR SEAT IN POSITION FORWARD FACING Height of child: 100-150 cm (weight 15-36 kg) 3-point vehicle belt...
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap Fabric cover and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 12 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
