- Page 1 Grandstream Networks, Inc. GHP63X/W – User Guide...
-
Page 2: Product Overview
○ Tolerate up to 30% packet loss without impacting voice quality. ○ Supports provision and management via GDMS. ○ New voice message and mute LED indicator. ○ HAC/VCH (ADA) compliant handset volume boost. GHP63X/W ○ Magnetic Hook Switch feature. Technical Specification GHP63X/W Protocols/Standards SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, Simple, TLS, SRTP. - Page 3 26 keys, including: -6 Context-Sensitive Soft keys; Keypad -12 Standard Phone Digits keys (0-9: speed dial keys configuration on web page, * , #); -5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold); -3 Volume Control keys, Up/Down/Mute (with red color LED) HD Audio One HD handset support for wide band audio Voice Conference...
-
Page 4: Getting Started
Please check the package before installation. If you find any one of the components missing, please contact your system administrator. GHP63X/W Phone Setup The GHP63X/W can be installed on the desk or can be mounted on the wall. Please follow the instructions below for each installation method... -
Page 5: Wall Mount
Wall Mount 1. On the wall where the GHP630/W & GHP631/W will be mounted, mark two dots with 100mm distance in between vertically. 2. Using a drill, make a hole on each marked dot. Put a plastic expansion bolt and screw (not provided) into each hole. Leave enough space on the screws to mount the GHP630/W &... - Page 6 Note For easy deployment, the GHP63x/W is out-of-the-box pre-configured to connect to default SSID named wp_master with a password (WPA/WPA2 PSK) equal to wp!987@dmin, users can adapt these settings from the web UI as well to make it easier for deployment on a customer’s site.
- Page 7 Connect to Wi-Fi (only for GHP630W/GHP631W) To connect to Wi-Fi from your GHP63xW device, follow the below steps: Press “HOLD” + 2 to access the factory functions of the GHP63x/W from the LCD Go to Factory Functions → Wi-Fi Settings Enable Wi-Fi, Select the Wi-Fi Band (2.4G, 5G, or both), and scan for nearby networks...

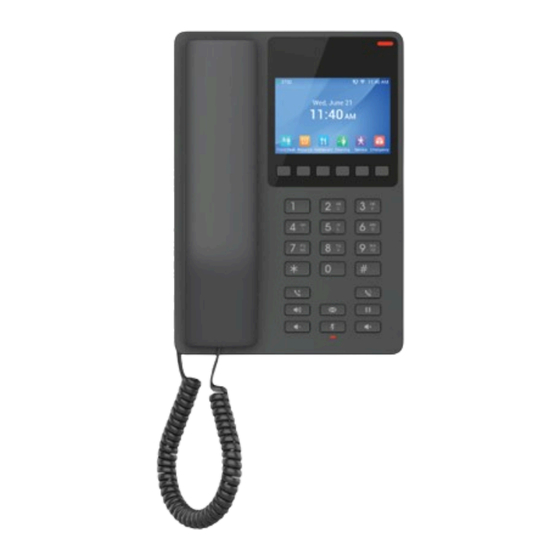

- Page 8 Getting To Know The GHP63X/W GHP63X/W GHP63x/W Front view GHP63x/W Back view...
-
Page 9: Factory Functions
FACTORY FUNCTIONS The GHP63x/W hotel phone offers a list of factory functions that can be displayed and configured from the LCD screen, to access the factory functions, click “HOLD” + “2” both at the same time, The following list will be displayed: Diagnostic Mode: Conducts a diagnostic assessment of the device’s physical keys to ensure their proper functionality. -
Page 10: Sip Accounts And Lines
SIP Accounts and Lines The GHP63X/W supports 2 SIP accounts and 2 lines; Each account is capable of independent SIP servers, and users. One account is configured by the administrator to initiate calls and receive calls. While the other account is configured to receive calls. -
Page 11: Answering Phone Calls
Answering Phone Calls Receiving Calls The phone rings with the selected ringtone. Unhook the handset or press the speaker button to answer the call. You can also click on the answer soft key on the LCD screen to answer the phone call Rejecting Calls To reject an incoming call, click on the “End call”... -
Page 12: Call Transfer
When receiving a call on the second line, the user can use the Flash key to hold the call on the first line and switch to the call on the second line. If the user wants to unhold the first call, the user may press the Flash key again to recover the call. -
Page 13: Enable Sleep Mode
Note For these Transfer processes to work, the “Enable Recovery on Blind Transfer” feature needs to be disabled in the web UI under Account → Call Settings → Transfer. Voicemail The Waiting Message Indicator will blink in a green color when there is a new voicemail. To listen to the voicemail, please press the voicemail button on the phone, and provide the voicemail Password Sleep Mode Sleep mode is a feature available on the GHP630x/W to enable the screen and LED to be off immediately, when answering a... -
Page 14: Disable Sleep Mode
Enable Sleep Mode Once enabled the following message will be displayed on the main screen Disable Sleep Mode To disable sleep mode, Click the mute icon , the sleep mode will be disabled DND Mode Enable DND To enable Do Not Disturb mode, when the phone is idle, press the key then enable DND mode, this will make the phone unavailable for all incoming calls... -
Page 15: Disable Dnd
, then the DND mode will be disabled RESTORE FACTORY DEFAULT SETTINGS Restore to Factory Default via LCD menu To restore the GHP63x/W to factory settings using the keypad lock : 1. Press “HOLD” + 2 to access the factory functions of the GHP63x/W from the LCD... - Page 16 2. From the list of available options, select “Factory Reset” to perform a factory reset to the phone. Restore to Factory Default via Web GUI To reset the GHP63x to its factory settings using the web GUI, please navigate to Upgrade and Provisioning → Advanced Settings then click on the Start button to start the factory reset process.
-
Page 17: Change Log
Grandstream Networks, Inc. is not permitted. Grandstream is a registered trademark and the Grandstream logo is the trademark of Grandstream Networks, Inc. in the United States, Europe, and other countries. - Page 18 20 cm between the radiator and your body. CE Authentication Hereby, Grandstream Networks, Inc. declares that the radio equipment GHP6XX/W are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.grandstream.com/support/resources/...
