Grandstream Networks, Inc.
GHP61x(W)/ GHP62x(W) –
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the GHP61 W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandstream Networks GHP61 W Series

Summary of Contents for Grandstream Networks GHP61 W Series

  • Page 1 Grandstream Networks, Inc. GHP61x(W)/ GHP62x(W) – User Guide...

  • Page 2: Product Overview

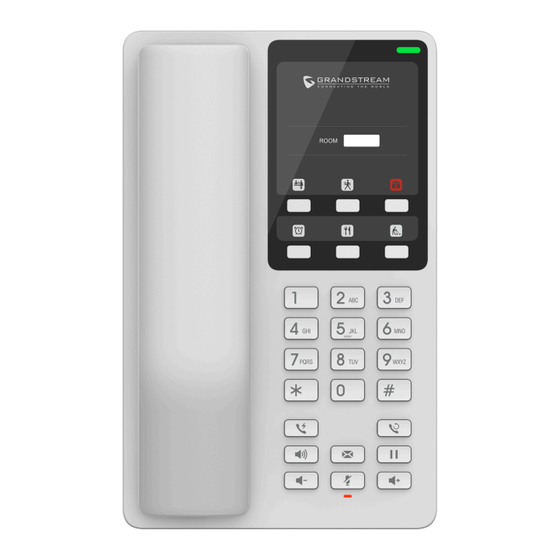

    GHP61x(W)/GHP62x(W) – User Guide The GHP series of hotel phones feature the GHP610(W)/GHP620(W) and the GHP611(W)/GHP621(W), easy-to-use IP phones for any hotel room that can be programmed and customized based on the needs of the hotel and its guests. These devices feature are equipped with integrated dual-band Wi-Fi (GHP6XX/W).
  • Page 3 GHP610W/GHP611W integrated dual-band 2.4Ghz & 5Ghz 802.11 a/b/g/n/ac. Wi-Fi 23 keys, including: - 3 Programmable keys. Keypad - 12 standard phone digit keys (0-9: speed dial keys con guration on web page, *,#). - 5 function keys (Flash, Redial, Hands-free, Voice Mail, Hold). - 3 volume control keys, up/down/mute (with red color LED).

  • Page 4: Getting Started

    Support for multicast paging and E911 service. Advanced Features Support for advanced jitter resilience algorithm. Base Stand 1 wall-mountable base stand, can be put on a desk. Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS Secure boot, random default, unique security certi cate per device, administrator level Security passwords, 256-bit AES encrypted con guration le, SRTP, TLS, 802.1x media access control.
  • Page 5 ● 1 x GHP62X Phone ● 1 x Handset ● 1 x Base Stand ● 1 x Black Faceplate ● 1 x Windows Faceplate ● 1 x Cardstock ● 1 x 12V Power Adapter (GHP620W and GHP621W) ● 1 x RJ9(4P4C) Phone Cord ●...
  • Page 6 GHP61X Wall Mount Mark two dots horizontally with a 100 mm distance in between where to wall mount the GHP610/W & GHP611/W. Using a drill, make a hole on each marked dot. Put a plastic expansion bolt and screw (not provided) on each hole. Leave enough space to mount the GHP610/W &...
  • Page 7 Note For easy deployment, the GHP6xxW is out-of-the-box pre-configured to connect to default SSID named wp_master with a password (WPA/WPA2 PSK) equal to wp!987@dmin, users can adapt these settings from the web UI as well to make it easier for deployment on a customer’s site.

  • Page 8: Telephony Features

    GHP62X Front Panel GHP62X Back Panel TELEPHONY FEATURES Making Phone Calls Handset and Speaker Mode The GHP6XX allows switching between the handset and the speaker when making calls. Please press the speaker button to start using the speaker . If you wish to switch to the handset after activating the speaker, just unhook the handset and the audio will be emitted through the handset’s speaker.

  • Page 9: Completing Calls

    Completing Calls There are several ways to complete a call. On-hook dialing. Enter the number when the phone is on-hook and then send it out. 1. When the phone is idle, enter the number to be dialed out; 2. Take the handset off-hook, Press the Speaker button, or Press the Headset button on the headset plugged in. 3.

  • Page 10: Call Transfer

    Mute During an active call, press the MUTE button to mute/unmute the microphone. The LED will light up in red to indicate that your microphone is muted. Call Transfer Attended Transfer 1. Alice is talking with Bob. 2. Alice presses Flash to initiate a new call to Carl, and Bob is held automatically. 3.
  • Page 11 Alice could press Flash to switch the line, and also could long press Flash to set up a conference. Bob and Carl will be unheld automatically Voicemail The Waiting Message Indicator will blink in a green color when there is a new voicemail. To listen to the voicemail, please press the Voicemail button on the phone.
  • Page 12 **38*{keypad password}# Firmware Upgrade (FU) (Password is required for this Trigger a rmware upgrade operation) **38*{keypad password}*{server IP address}# Trigger the upgrade of the speci ed Firmware Upgrade 2 (FU) (Password is required for this upgrade rmware path operation) Get Firmware Upgrade Server Address **32# Broadcast rmware server URL addr (FA)

  • Page 13: Restore Factory Default Settings

    Set HAC on or off (HAC) **422*x# Set HAC on or off: 0 (off), 1 (on) Set Room number to be added under : Set Room number **766*{room number} Hotel Service =>Hotel Room Number Return the room number that has been Get Room number **766# de ned ...

  • Page 14: Change Log

    Grandstream Networks, Inc. is not permitted. Grandstream is a registered trademark and the Grandstream logo is the trademark of Grandstream Networks, Inc. in the United States, Europe, and other countries.
  • Page 15 20 cm between the radiator and your body. CE Authentication Hereby, Grandstream Networks, Inc. declares that the radio equipment GHP6XX/W are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:...
  • Page 16 GNU GPL INFORMATION GHP6XX firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license. Grandstream GNU GPL-related source code can be downloaded from the Grandstream website: https://www.grandstream.com/legal/open-source-software Need Support?
