CD Automation REVEX 1PH User Manual page 47

REVEX
1PH from 60A to 90A

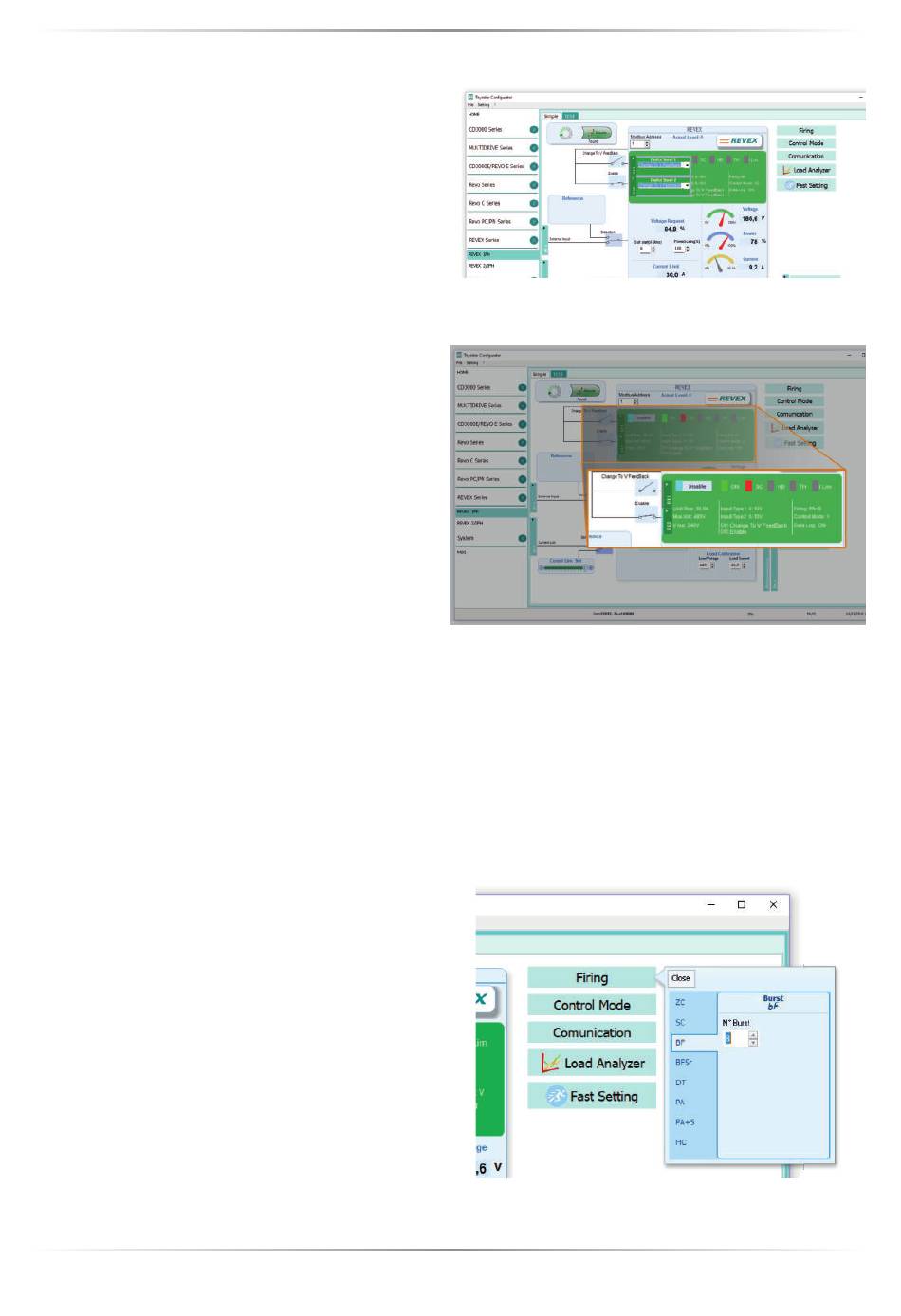

To confi gure and monitor the digital inputs:
Digital input states and functions:
show whether each input detects an open or closed
circuit and the function the input performs.
Digital Input States and Function Selectors:
set the function for each digital input. Click DI1 or DI2 to
expand the options.
Status and Setup Indicators:
status: light on when the input is a closed circuit
Digital input
indicator: light on when the power controller is enabled
Enable
Enable/Disable button:
power controller if a digital input is not confi gured
for this function
indicator: light on when there is demand for
ON
the output to be on
indicator: light on when there is a shorted SCR
SC
alarm active
indicator: light on when there is a heater break
HB
alarm active
indicator: light on when the heat sink over
TH
temperature alarm is active
indicator: light on when the load current
I Lim
exceeds the current limit setting
Size: indicate the maximum rated current of
Unit
the power controller
Volt: indicate the maximum rated voltage for the power controller
Max
Aux: indicate the voltage the auxiliary input is set to use for powering the electronics
V
Type1: indicate the signal analog input 1's type
Input
Type2: indicate the signal analog input 2's type
Input
DI1: indicate digital input 1's function
DI2: indicate digital input 2's function
Firing: indicate the fi ring type the power controller is set to use
Feedback: indicate the feedback type the power controller is set to use
Log: indicate the Data Log status.
Data
Buttons setup options:
Firing: view and set the fi ring type and the associated
parameters
Feedback: view and set feedback type
Communication: view and set communication options
for ports, protocols and fi eldbus
click on to enable the
