ATTERY PACK DETECTION

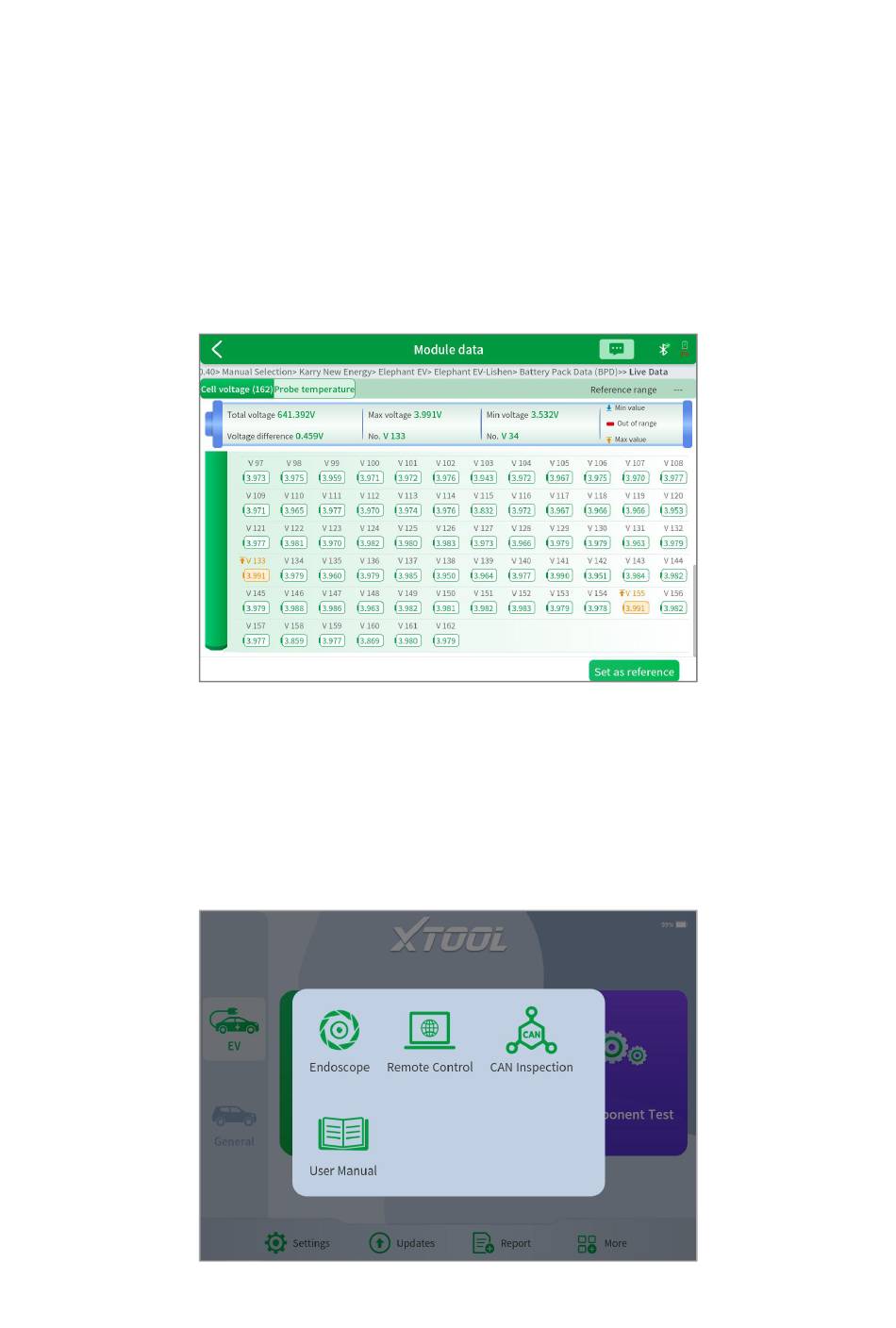

This function supports the detection of different types of battery packs for the mostly EV models on the market. It can read
the individual cell's voltage and each single temperature probe data of the vehicle's battery pack.
It also allows checking the total voltage and the voltage of each cell in the battery pack and marks them with different
colors according to their value and range. You can easily get the cell position of Max/Min Volt and Temp by this functions,
it helps you locate the fault faster.
Click Set as Reference to save the current data as the reference value range. if the value is out of the reference range,
then the color of that cell will turn red automatically.
4. CAN I
NSPECTION
If the model of your battery pack is not covered, you can use the CAN INSPECTION function to collect data. It can detect
the pin voltage and custom the pin configuration, and support to check the baud rate, can automatically identify the OBD
pin voltage, and can quickly identify the CAN bus.
Select More to enter the CAN INSPECTION function

