Thor Broadcast H-HYBRID-RF-8 User Manual

8 channel hdmi and sdi clear catv rf modulator qam, atsc, dvb-t, isdb-t
Hide thumbs Also See for H-HYBRID-RF-8:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
8 channel HDMI and SDI
Clear CATV RF Modulator
QAM, ATSC, DVB-T, ISDB-T
H-HYBRID-RF-8
All information is under copyright © of THOR FIBER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-HYBRID-RF-8 and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-HYBRID-RF-8

Summary of Contents for Thor Broadcast H-HYBRID-RF-8

  • Page 1 User Manual 8 channel HDMI and SDI Clear CATV RF Modulator QAM, ATSC, DVB-T, ISDB-T H-HYBRID-RF-8 All information is under copyright © of THOR FIBER...

  • Page 2: Table Of Contents

    H-HYBRID-RF-8 Table of Contents CHAPTER 1-INTRODUCTION ........................... 1 1.1P RODUCT VERVIEW ....................................1.2KEY FEATURES ....................................... 1.3 S PECIFICATIONS ......................................1.4 A PPEARANCEAND ESCRIPTION ................................CHAPTER 2-LCDOPERATION ............................4 2.1 LCDM TRUCTURE ..................................2.2 G ENERAL ETTINGS ....................................CHAPTER 3 - WEBNMSOPERATION .......................... 11 3.1 L...

  • Page 3: Chapter 1-Introduction

    Chapter 1 - Introduction 1.1 Product Overview The Thor Broadcast Hybrid-8 encoder modulator is as all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T RF out. It supports8 HDMI inputs and 8 3G-SDI inputs; this flexible configuration makes it extremely scalable for building a headend combination of HDMI and SDI sources.

  • Page 4: Specifications

    H-HYBRID-RF-8 1.3 Specifications HDMI Encoding Section RF frequency 50~1000MHz, 1KHz step Input Interface HDMI*8,SDI*8 RF output level 70~100 dBµV, 1dB step Encoding MPEG2 ≥35dB Input Output Code rate 1/2, 2/3, 3/4, 5/6, 7/8 PAL,NTSC Guard Interval 1/32, 1/16, 1/8, 1/4...

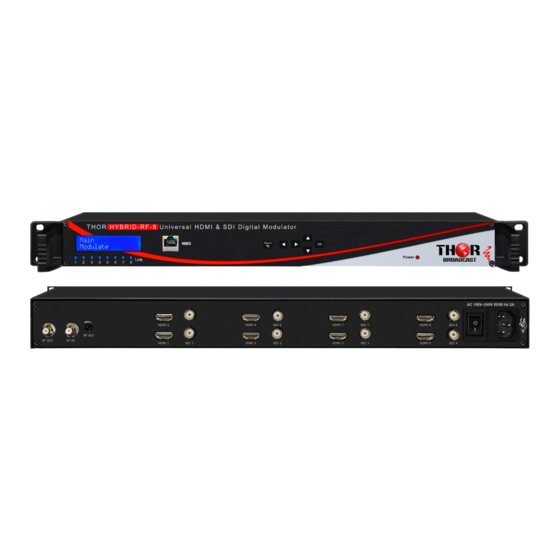

  • Page 5: Appearanceand Description

    H-HYBRID-RF-8 1.4 Appearance andDescription Front Panel Illustration ① Link Indicators④Directional Keys (up, down, left, right) ② LCD Screen⑤ Power Indicator ③ NMS Ethernet Port Rear Panel Illustration ①RF output ④HDMI + SDI Input Ports ②RF Input⑤Power switch ③RF Output Level Regulation⑥Power supply Slot Tel: (800) 521-8467 Email: sales@thorfiber.com...

  • Page 6: Chapter 2-Lcdoperation

    H-HYBRID-RF-8 Chapter 2 - Operation Keyboard Function Description: OK: Activate the parameters which need modification, or confirm the change after modification. RETURN: Cancel current entered value, resume previous setting; Return to previous menu. LEFT/RIGHT: Choose and set the parameters. UP/DOWN: Modify activated parameter or paging up/down when parameter is inactivated.
  • Page 7 H-HYBRID-RF-8 2 Encode Input Source 2.1 Channel 1 Bit Rate Latency 2.2 Channel 2 Audio Format 2.3 Channel 3 PMT PID 2.4 Channel 4 Video PID Audio PID 2.5 Channel 5 PCR PID 2.6 Channel 6 2.7 Channel 7 Same Contents as Channel1 2.8 Channel 8...
  • Page 8 H-HYBRID-RF-8 4.1 IP Address 4 Network 4.2 Subnet Mask 4.3 Gateway 5.1 Save & Reboot 5 System Setting 5.2 Restore 5.3 Factory set 6.1 Web Version 6 Soft Version 6.2 Board ID 6.3 Board Version Tel: (800) 521-8467 Email: sales@thorfiber.com...

  • Page 9: General Settings

    H-HYBRID-RF-8 2.2 General Settings After powering on the device, it will show the device’s IP address. When you press the ENTER key, the main interface has optional 6 menu’s and sub-menus, press the up and down keys to switch the options, press the OK key to enter the specified sub-menu to modify the parameters.
  • Page 10 H-HYBRID-RF-8 ISDB-T: Key ID Network ID TS ID ON ID Program Number Program Provider Program Name 2.2.2 Encode This Broadcast TH8 is will allow you to alter audio and video settings as needed per channel 1/2/3/4/5/6/7/8 for variable results. Encode 2.1 Channel1...
  • Page 11 H-HYBRID-RF-8 Channel1/2/3/4/5/6/7/8 Press the up and down keys to switch the option. Set these parameters by pressing OK to enter these sub-menus. DVB-T: Standard RF Frequency Bandwidth Constellation Guard Interval Code Rate DVB-C J.83A: Standard RF Frequency Symbol Rate Constellation J.83B:...
  • Page 12 H-HYBRID-RF-8 2.2.4 Network Setting The Network Setting has 3 sub-menus as shown below. IP Address 192.168.0.188 Subnet Mask 255.255.255.0 Gateway 192.168.0.1 2.2.5 System Setting  Save & Reboot Always save your settings each time you change them, so the next time you restart the unit, they appear as you wanted them.

  • Page 13: Chapter 3 - Webnmsoperation

    H-HYBRID-RF-8 Chapter 3 - WEB NMS Operation For setting configurations you can use the front panel; also you are able to control and set the configurations on any computer by connecting the device to the web NMS Port. You should ensure that the computer’s IP address is different from the Modulator IP address;...

  • Page 14: Operation

    H-HYBRID-RF-8 3.2 Operation Summary When we confirm the login, it displays the Summary interface as shown in Figure-2. Check the version information Click any item here to enter the Figure-2 Themodulate channels status summary corresponding interface to check information or set the parameters.
  • Page 15 H-HYBRID-RF-8 AC3, AAC, MPEG1 Layer2 Audio encoding format DVB-T Modulation DVB-C(J.83A) Modulation Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 16 H-HYBRID-RF-8 ATSC Modulation ISDB-T Modulation Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 17 H-HYBRID-RF-8 System → Modulate: Click [ Modulate ], it displays the interface where users can configure the modulating parameters. J.83B Modulation Click[ Channel 2/3/4/5 ],it displays the interface where you can configure the modulating parameters. Channel 2: DVB-T modulation Channel 3: DVB-C(J.83A)modulation Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 18 H-HYBRID-RF-8 Channel 4: ATSC modulation Channel 5: ISDB-T modulation System → Network: Click [ Network ], it displays the where to set network parameters. Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 19 H-HYBRID-RF-8 System→Password: Click [ Password ], it displays the screen where to set login password for the web NMS System→Firmware: Click [ Firmware ], it displays the screen where to update the firmware on this modulator. CAUTION: Read this carefully before starting the update operation: [1] Make sure the network connection is solid and stable before operation.
  • Page 20 H-HYBRID-RF-8 Click [Update Modulator Firmware] to put file up then auto start update. Progress shown below. Click [Update Web application:] to put file up then auto start update. Progress shown below. Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 21 H-HYBRID-RF-8 If web app cannot open，please following bellow: First, turn off the power supply and press OK button to power on； Then it will be forced to enter the boot loader interface and select the file to burn again. During the process, the link indications will show blue from left to right, and then green from right to left.

  • Page 22: Chapter 4 -Packing List

    H-HYBRID-RF-8 Chapter 4 - Packing List Thor Hybrid-8 User'sManual 1 PC HDMI Cable 8 PCS PowerCord 1 PC For Further Tech Support 1(800)521-THOR (8467) Ext 2 support@thorfiber.com Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
