GENERAL INFORMATION

The Task Force Tips MID-FORCE, CAFS-FORCE, and DUAL-FORCE nozzles are designed to provide excellent performance under
most fire fighting conditions. Their rugged construction is compatible with the use of fresh water as well as fire fighting foam solutions.
Turning the pressure control knob at the front of the nozzle allows the user to quickly change from standard to low pressure mode.
3.1

VARIOUS MODELS AND TERMS

SERIES
MID-FORCE
MID-FORCE
DUAL-FORCE
DUAL-FORCE
CAFS-FORCE1
CAFS-FORCE2
* Other threads, coupling sizes. or connector styles can be specified at time of order.
MID-FORCE, CAFS-FORCE, and DUAL-FORCE nozzles are available in several models. Some common models are shown below:
COUPLING
RUBBER
GASKET
PISTOL
GRIP
DETENTS
GASKET
GRABBER
INLET
SCREEN
MID-FORCE and
DUAL-FORCE only
©Copyright Task Force Tips LLC 2002-2024
FLOW RANGE
GPM
70-200
70-200
95-300
95-300
70-200
95-250
ON OFF
NOZZLE WITH VALVE
a nd INTEGRAL PISTOL GRIP
VALVE HANDLE
NOZZLE WITH VALVE
ON
NOZZLE WITH IMPULSE TRIGGER VALVE SYSTEM
NOMINAL PRESSURE
L/min PSI
265-760 100
265-760 75
360-1150 100
360-1150 75
265-760 75
360-950 75
Table 3.1
STREAM
SHAPER
TIP ONLY NOZZLE
VALVE POSITION
LABEL
4 POSITION LOCK
TRIGGER
OFF

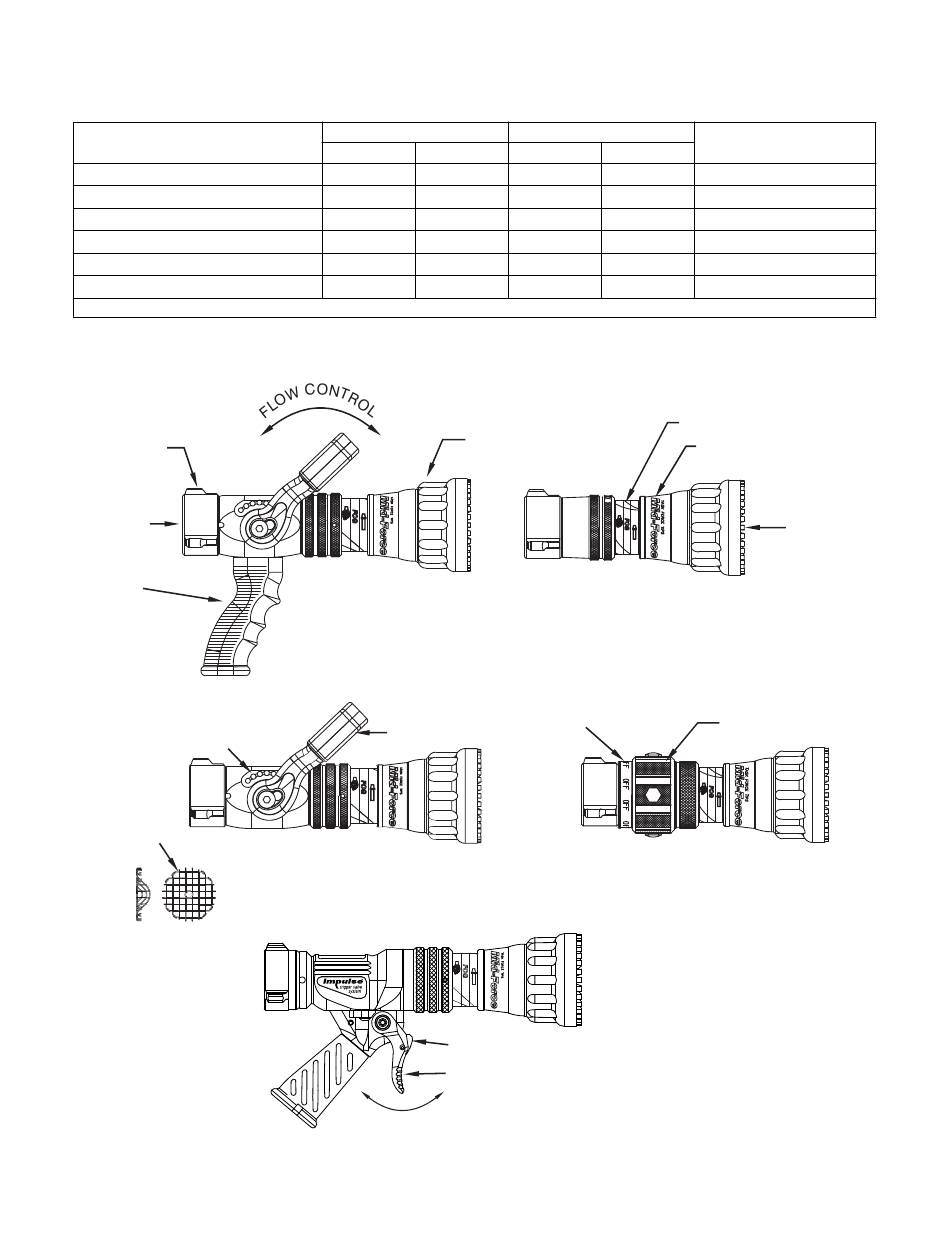

Figure 3.1
5
STANDARD COUPLING*
BAR
7 1-1/2 NH
5 1-1/2 NH
7 1-1/2 NH
5 1-1/2 NH
5 1-1/2 NH
5 1-1/2 NH
BARREL LABEL
NAME LABEL
PRESSURE
CONTROL
KNOB
VALVE RING
TIP ONLY NOZZLE
WITH TWIST SHUTOFF
