3.0 GENERAL INFORMATION

The Task Force Tips Protector is a simple and rugged fi xed station monitor with many unique features. Its patented waterway gives
low friction loss and delivers water to the nozzle with fewer twists and turns than a conventional monitor. The optional built-in on/
off valve with position indicator eliminates the need to add a costly valve to the monitor installation. The Protector is capable of
fl owing up to 1250 gpm (4800 l/min) while maintaining a FULL 360° rotational ability. The lever-action rotational lock is activated in
one motion, visually confi rmed, and securely holds the monitor's horizontal position. The Protector can be directly bolted to many
common pipe fl anges. The outlet is available with various 2.5" (65mm) male threads. The simple and basic design requires no grease
application or other maintenance. Swiveling elements and seals (including valve seat) can be replaced within a few minutes with
common hand tools. All models are equipped with an automatic drain valve to fully evacuate the monitor and optional on/off valve
after each use. A threaded pipe port (1/4" NPT) (6mm) is provided for pressure gauge installation. Maximum pressure is 250 psi
(17 bar). The Protector is hard anodized ANSI 356-T6 aluminum and is fully powder coat fi nished inside and out. Swivel clamps, 3"
(75mm) valve ball, trunnions, and hardware are 18-8 stainless steel.

3.1 VARIOUS MODELS AND TERMS

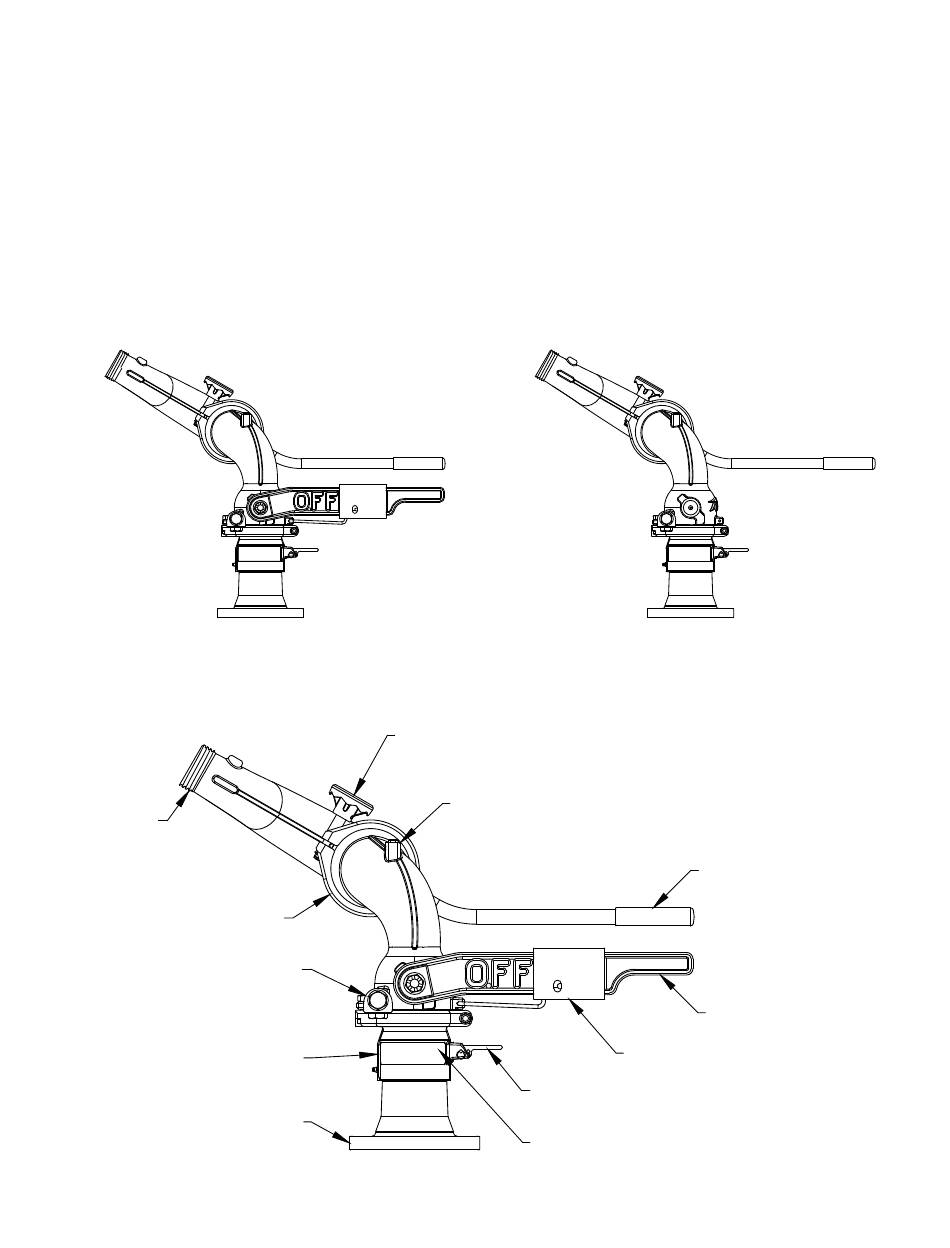

The Protector monitor is available in several diff erent models and inlet connections. The two body styles are shown in fi gures 3.1A
and 3.1B below.
Protector with Shutoff Valve,
Threaded Exit and 4" ANSI 150 inlet
Figure 3.1C identifi es terms that describe the various parts and controls of the monitor.
Threaded
Exit
Elevation Swivel
Automatic Drain Valve
(See Section 4.5)
Horizontal Swivel
Flanged Base
©Copyright Task Force Tips, Inc. 1999-2017
Fig 3.1A
Elevation Locking Knob
Protector Parts Identifi cation
Threaded Exit and 4" ANSI 150 inlet
Port for Pressure Gauge 1/4" NPT
Valve Position Indicator
Horizontal Rotation Locking Lever
Serial Number
Fig 3.1C
5
Fig 3.1B
Protector without Valve,
Direction Control Handle
Valve Handle
