General Information; Various Models And Terms - Task Force Tips G-Force Instructions For Safe Operation And Maintenance

WARNING
CAUTION

3.0 GENERAL INFORMATION

The Task Force Tips G-Force nozzles are designed to provide excellent performance under most fi re fi ghting conditions. Their
rugged construction is compatible with the use of fresh water (see section 3.4 for saltwater use) as well as fi re fi ghting foam
solutions.

3.1 VARIOUS MODELS AND TERMS

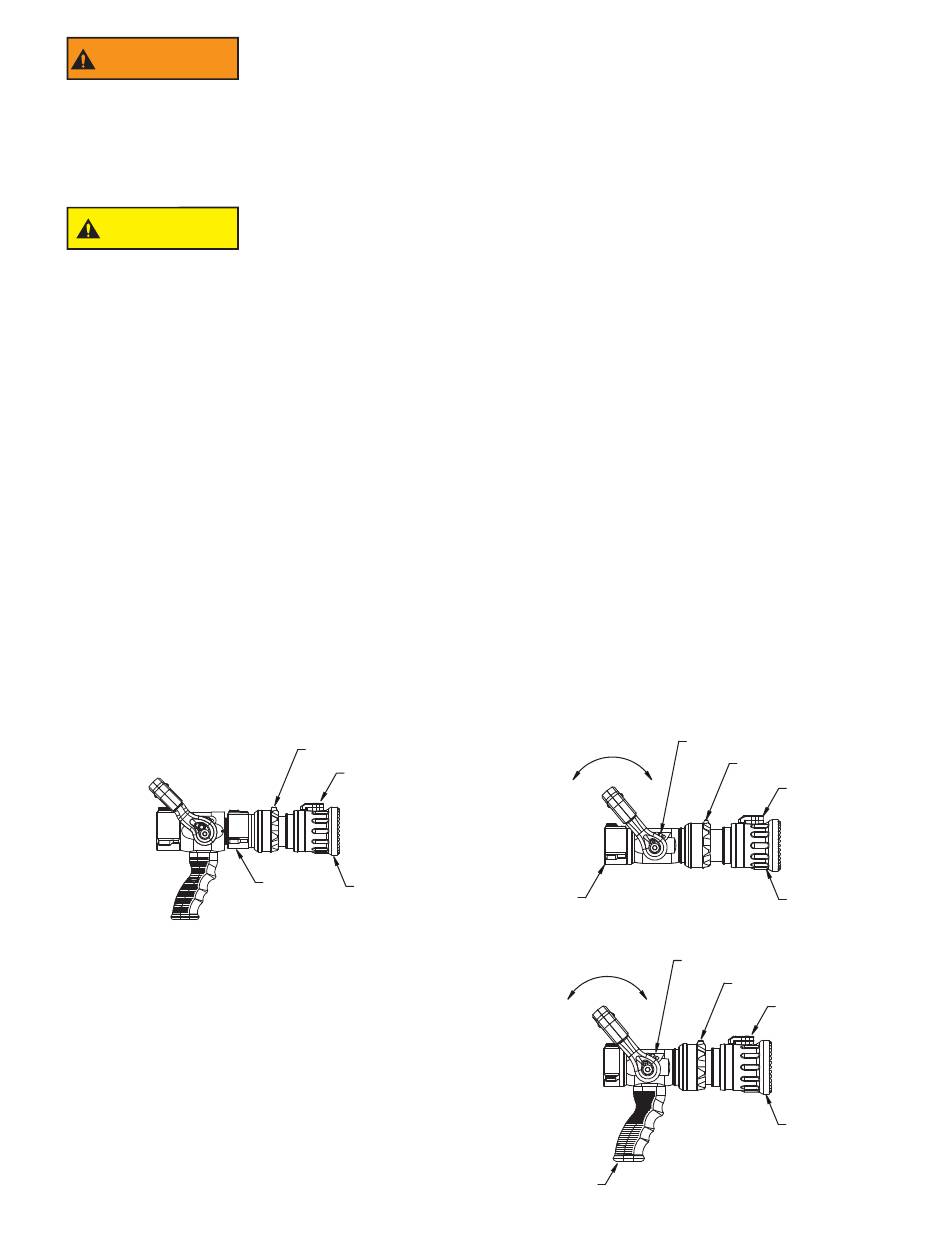

The G-Force nozzle is available in several different models and inlet connections. Basic body styles are shown in fi gure 2.1A
TIP ONLY NOZZLE
(Shown With H-VOI Ball Valve)
Other options are:
• Fixed rubber, fi xed aluminum or stainless steel spinning fog teeth.
• Shaper tactile indicator with or without detent (see section 5.2.2)
Three fl ow options are available. All three use the selector ring for fl ush control.
The fl ow options are:
• Fixed fl ow (see section 4.1)
• Selectable fl ow (see section 4.2)
• Automatic (see section 4.3)
©Copyright Task Force Tips, Inc. 2011-2014
Water is a conductor of electricity. Application of water on high voltage equipment can cause
injury or death by electrocution. The amount of current that may be carried back to the nozzle
will depend on the following factors:
• Voltage of the line or equipment
• Distance from the nozzle to the line or equipment
• Size of the stream
• Whether the stream is solid or broken
• Purity of the water
1 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47
Fire streams are capable of injury and damage. Do not direct water stream to cause injury or
damage to persons or property.
SELECTOR
RING
TACTILE INDICATOR
THREADED
STREAM SHAPER
COUPLING
1
ON
THREADED
COUPLING
ON
PISTOL GRIP
& INTEGRAL PISTOL GRIP
3
DETENTS
SELECTOR
RING
OFF
TACTILE INDICATOR
STREAM SHAPER
NOZZLE WITH VALVE
DETENTS
SELECTOR
RING
OFF TACTILE INDICATOR
STREAM SHAPER
NOZZLE WITH VALVE
LIG-010 June 19, 2014 Rev03
