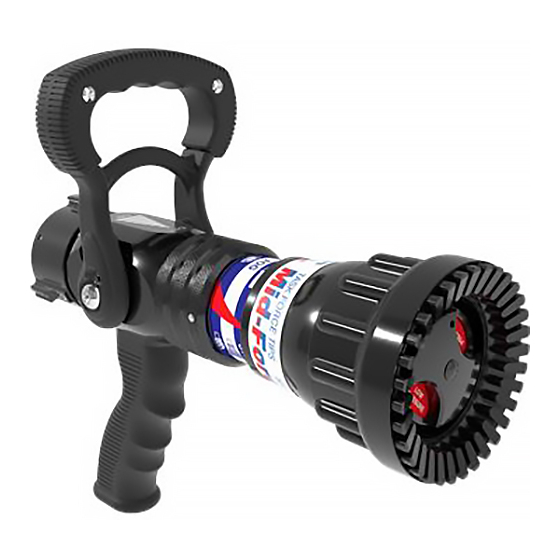

Task Force Tips MID-FORCE Instructions For Installation, Operation And Maintenance
Hand held automatic dual pressure nozzles
Hide thumbs
Also See for MID-FORCE:
Table of Contents
Advertisement
Quick Links
G-Force
MID-FORCE, CAFS-FORCE, and DUAL-FORCE
INSTRUCTION FOR INSTALLATION, OPERATION, AND MAINTENANCE
WARNING
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2002-2024
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

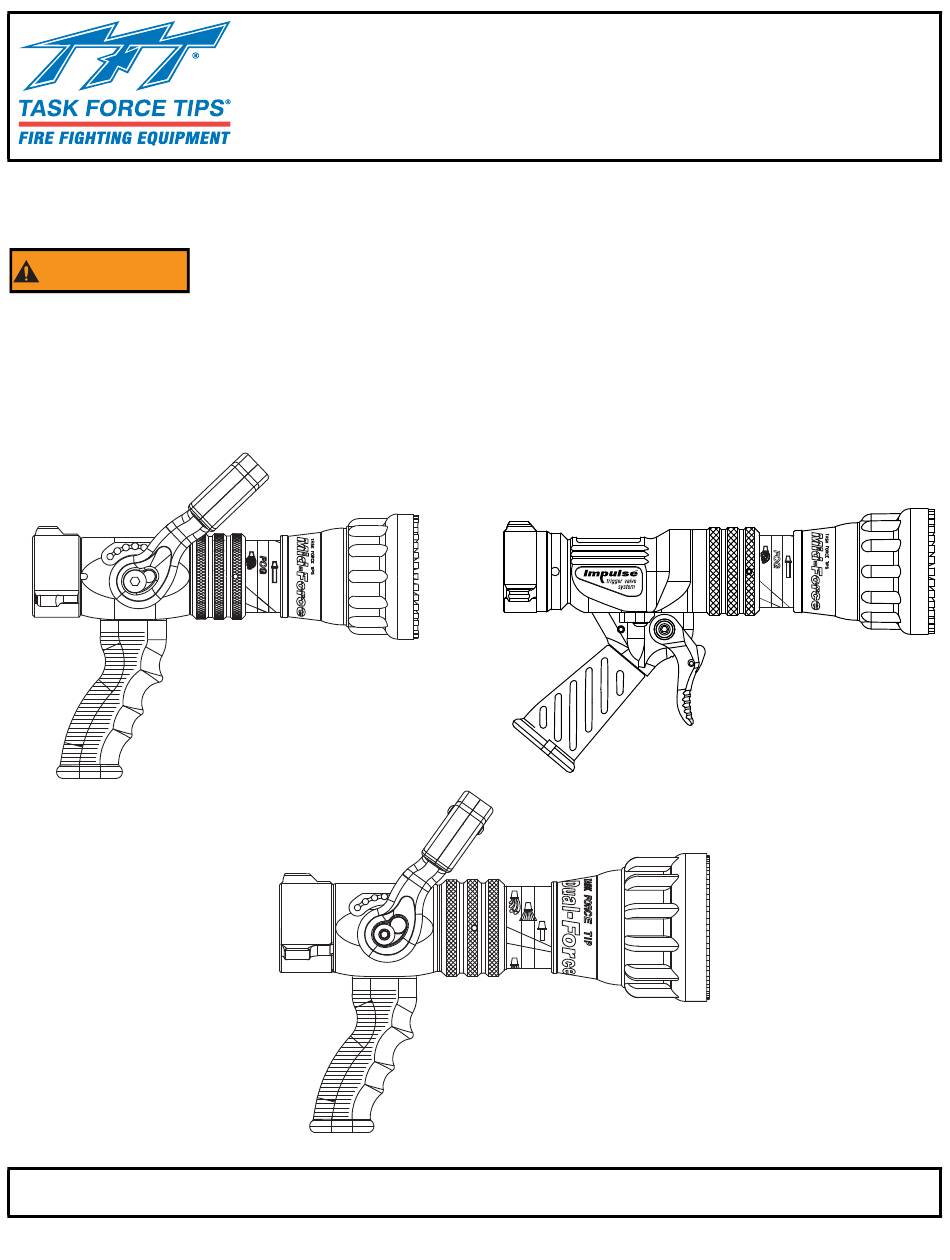

MID-FORCE
with LEVER HANDLE
HAND HELD AUTOMATIC
DUAL PRESSURE NOZZLES
DUAL-FORCE
with LEVER HANDLE
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
1
MID-FORCE
with IMPULSE
Trigger Valve System
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIN-035 May 20, 2024 Rev17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Task Force Tips MID-FORCE
Summary of Contents for Task Force Tips MID-FORCE
- Page 1 Trigger Valve System DUAL-FORCE with LEVER HANDLE TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17...
- Page 2 SUPPORTING MATERIALS The following documents contain supporting safety and operating information pertaining to the equipment described in this manual. LTT-108 LIA-025 Instruction: Pistol Grip Manual: Foam Aspirators Replacement Kit ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17...
-
Page 3: Table Of Contents
5.1.5.2 IMPULSE FLOW CONTROL SPEED ADJUSTMENT 5.1.5.3 NORMAL OPERATING POSITION 5.2 PATTERN CONTROL 5.2.1 FLUSH CONTROL 5.3 STANDARD/LOW PRESSURE KNOB MID-FORCE & DUAL-FORCE 6.0 USE WITH FOAM 6.1 FOAM ASPIRATING ATTACHMENTS 6.2 CAFS-FORCE 1 & CAFS-FORCE 2 NOZZLES 7.0 COLOR CODED HANDLE COVER AND PISTOL GRIPS 7.1 IMPULSE TRIGGER VALVE SYSTEM NOZZLE COLORED PISTOL GRIPS... -
Page 4: Meaning Of Safety Signal Words
Do not direct water stream to cause injury or damage to persons or property. To prevent mechanical damage, do not drop or throw equipment. NOTICE ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 5: General Information
GENERAL INFORMATION The Task Force Tips MID-FORCE, CAFS-FORCE, and DUAL-FORCE nozzles are designed to provide excellent performance under most fire fighting conditions. Their rugged construction is compatible with the use of fresh water as well as fire fighting foam solutions. -
Page 6: Specifications
Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of the equipment may be shortened due to the effects of corrosion, and is not covered under warranty. ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 7: Flow Characteristics
FLOW CHARACTERISTICS The following graphs show the typical performance of MID-FORCE, CAFS-FORCE, and DUAL-FORCE nozzles. MID-FORCE 100/55 PSI (7/4 BAR) STANDARD 100 PSI LOW 55 PSI NFPA 100 PSI NFPA 55 PSI 115 PSI meets NFPA flow requirements STANDARD PRESSURE MODE... - Page 8 Figure 4.0E CAFS-FORCE 2 75/45 PSI (5/3 BAR) WATER MODE CAF MODE NFPA 75 PSI CAFS-FORCE 2 90 PSI WATER MODE 60 PSI CAF MODE FLOW (GPM) Figure 4.0F ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17...
-
Page 9: Reach And Trajectory
Care must be taken to avoid dents or nicks in the nozzle tip. All reach data was taken in still air conditions at an elevation of 30 degrees. Figure 4.7A Figure 4.7B Figure 4.7C ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 10: Nozzle Controls
Detents are provided at intermediate positions. The position of the valve is shown by the exposed valve position label. Figure 5.1.3 ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 11: Impulse Trigger Flow Control
Loss of control or a burst hose could result in injury or death. Use caution when adjusting the closing speed, always verify performance after adjustment, and ensure that all adjustments are made by qualified personnel under the direction of the AHJ. ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 12: Normal Operating Position
Quickly releasing the trigger outside normal operating orientation will likely cause faster valve shut WARNING off, increasing risk of a burst hose. This could result in injury. Slowly release the trigger when operating outside of the nozzle’s normal orientation. ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 13: Pattern Control
STANDARD/LOW PRESSURE KNOB MID-FORCE & DUAL-FORCE For situations where the standard pressure setting at the nozzle is impractical, the MID-FORCE or DUAL FORCE may be switched to a low pressure mode. In the low pressure mode the nozzle pressure is reduced by about 50% while maintaining a usable stream and increasing the flow. -
Page 14: Use With Foam
• Slug loading (Loss of foam concentrate sends slugs of air and water into the nozzle) • Sudden release of built-up pressure in the hose when opening a nozzle ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 15: Color Coded Handle Cover And Pistol Grips
5. Reinstall or reposition the Adjusting Screw if it has been moved from its original (3/16 in Allen Wrench) location. 6. Flow nozzle to check performance of slow closer. Adjust as needed. Figure 7.1 ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 16: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase for mechanical components, and the two (2) year period from the date of purchase for electrical components. -
Page 17: Maintenance
FIELD LUBRICATION All Task Force Tips nozzles are factory lubricated with high quality silicone grease. This lubricant has excellent wash out resistance, providing long term performance. If your agency has unusually hard or sandy water, the moving parts of the nozzle may be affected. -
Page 18: Field Lubrication (Slide Valve And Pattern Controls)
1/16” of the baffle before the shaper reaches straight stream position. Wipe off excess lubricant. IF THIS PROCEDURE DOES NOT RESTORE SMOOTH OPERATION OF THE NOZZLE, FACTORY SERVICE IS NEEDED. • 24-HOUR HOT LINE — 800-348-2686 • tft.com ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17... -
Page 19: Impulse Trigger Valve Lubrication
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 20: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2024 LIN-035 May 20, 2024 Rev17...
